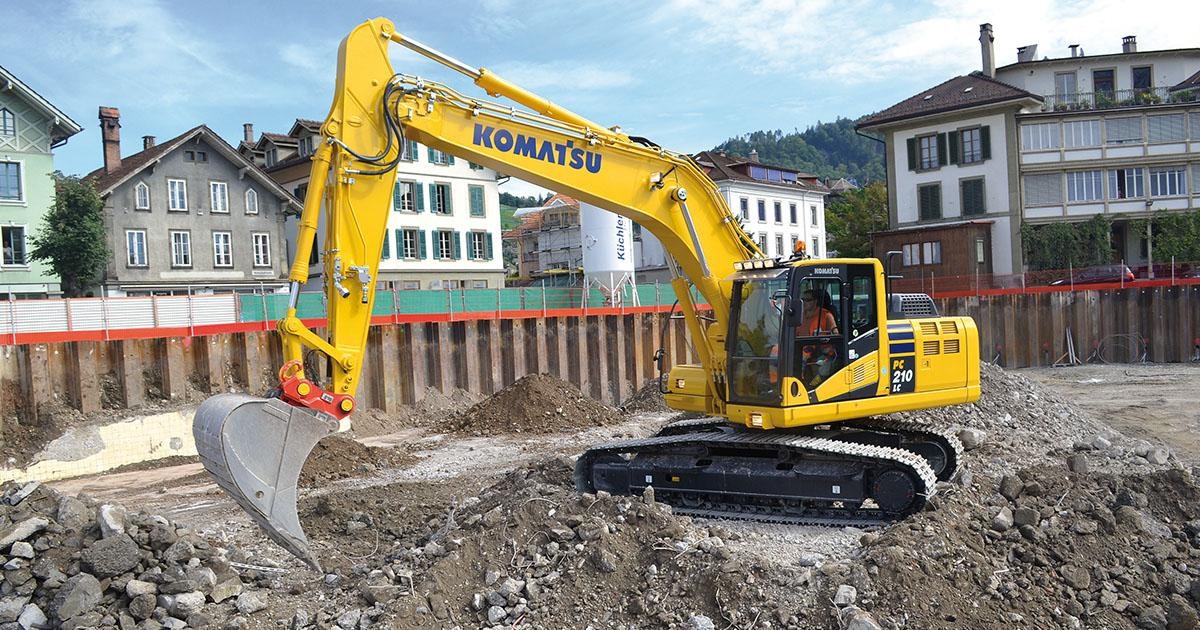

KOMATSU PC210LC-10
Specifications & Parameters
| Engine Model | SAA6D107E-2 |
| Rated Power(kW) | 123 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 560 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 7.5-9.5 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage IIIB |
| Track width(mm) | 600 |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 145 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9875 |
| Maximum Digging Height(mm) | 7110 |
| Maximum Digging Depth(mm) | 6620 |
| Specifications(mm) | 9630×3080×3045 |
| Operating Weight(kg&ton) | 22620 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
22‑ton mid‑size long‑track excavator trusted on heavy construction, quarry and earthmoving sites. Powered by Komatsu SAA6D107E‑2 six‑cylinder turbo common‑rail diesel engine, 123 kW net power, 6.69L displacement, EU Stage IIIB compliant. Uses passive DPF regeneration without urea‑SCR; fewer service parts keep long‑term running costs down. Strong low‑end torque maintains consistent output for hard digging and light quarry breaking with no engine stall.
Extended LC heavy‑duty undercarriage fitted with nine track rollers per side. Long track‑to‑ground contact plus wider LC track gauge lowers ground pressure. Delivers great flotation on soft muddy ground and noticeably improved stability during deep digging and side lifting versus standard‑track PC210‑10 units.
Proven Komatsu HydrauMind regenerative hydraulic system, dual variable‑displacement main pumps delivering up to 475 L/min total flow. Boom and arm energy regeneration holds stable pressure through full‑day breaker work, giving smooth combined movements and fine‑metered control. Factory‑run bi‑directional auxiliary piping works straight with 25‑ton‑class breakers, grapples and tilt quick couplers‑no on‑site pipe‑up required.
Flexible working‑tool setup, optional high‑volume bucket up to 1.68 m³ to boost bulk earthmoving throughput. Choose standard arm for general‑purpose jobs, long arm for deep trenching or short heavy‑duty arm optimized for hammer work. Well suited for highway build‑outs, large‑scale backfill, river dredging and light quarry jobs.
ROPS/FOPS certified SpaceCab operator cab with four‑point rubber isolation mounting and air‑suspension seat to cut operator fatigue over long shifts. 7‑inch high‑resolution TFT colour monitor shows DPF regeneration status, live fuel consumption and machine fault codes. KOMTRAX telematics comes factory‑fitted for remote fleet tracking, location logging and scheduled‑maintenance alerts.
All key daily service points sit at ground‑accessible height. One‑man checks for engine oil, filters and hydraulic oil with no climbing onto the machine, cutting downtime on busy job‑sites.
Interested in used KOMATSU PC210LC-10 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
