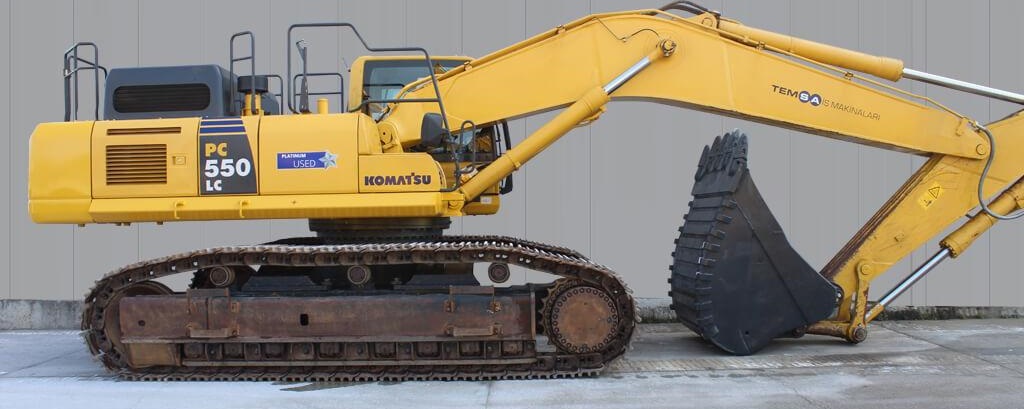

KOMATSU PC550LC-10M0
Specifications & Parameters
| Engine Model | SAA6D125E-5 |
| Rated Power(kW) | 270 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1420 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 13-17 |
| Engine Displacement(L) | 11.04 |
| Emisson | Tier4F |
| Track width(mm) | 600 |
| Fuel Tank(L) | 720 |
| Hydraulic Tank(L) | 279 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 3.5 |
| Bucket Digging Force(kN) | 356 |
| Boom Length(mm) | 7060 |
| Stick Length(mm) | 3380 |
| Maximum Excavation Radius(mm) | 12005 |
| Maximum Digging Height(mm) | 7410 |
| Maximum Digging Depth(mm) | 6900 |
| Specifications(mm) | 12260×3580×3460 |
| Operating Weight(kg&ton) | 54800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
SAA6D125 China IV common rail engine, 269kW net power, passive DPF regeneration without urea, 10% fuel saving, heavier weight & higher digging force than PC520LC-10M0.
4.32t heavy cast counterweight + wide LC track chassis with double flange rollers, low sinking risk on muddy mine yards, excellent stability for deep digging & heavy ore loading.
Two arm options: standard long boom for open-pit stripping; short SE boom with 4.2m³ large bucket improves loading efficiency by 25%. Reinforced annealed boom & arm for harsh rock mining.
722L/min CLSS regenerative hydraulic system with independent auxiliary circuit for 550-class heavy breakers, smooth combined movements & ultra-precise fine control.
Full mining protection kit including reinforced cylinder guards & long-life sealed pins, low deformation and oil leakage under long-term hard rock impact.
Factory pre-installed bi-directional auxiliary hydraulics for breakers, grapples, rippers & tilt buckets without pipe modification.
New Komtrax telematics monitors working hours, fuel consumption and DPF status; all service points at ground level for easy daily maintenance.
Interested in used KOMATSU PC550LC-10M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
