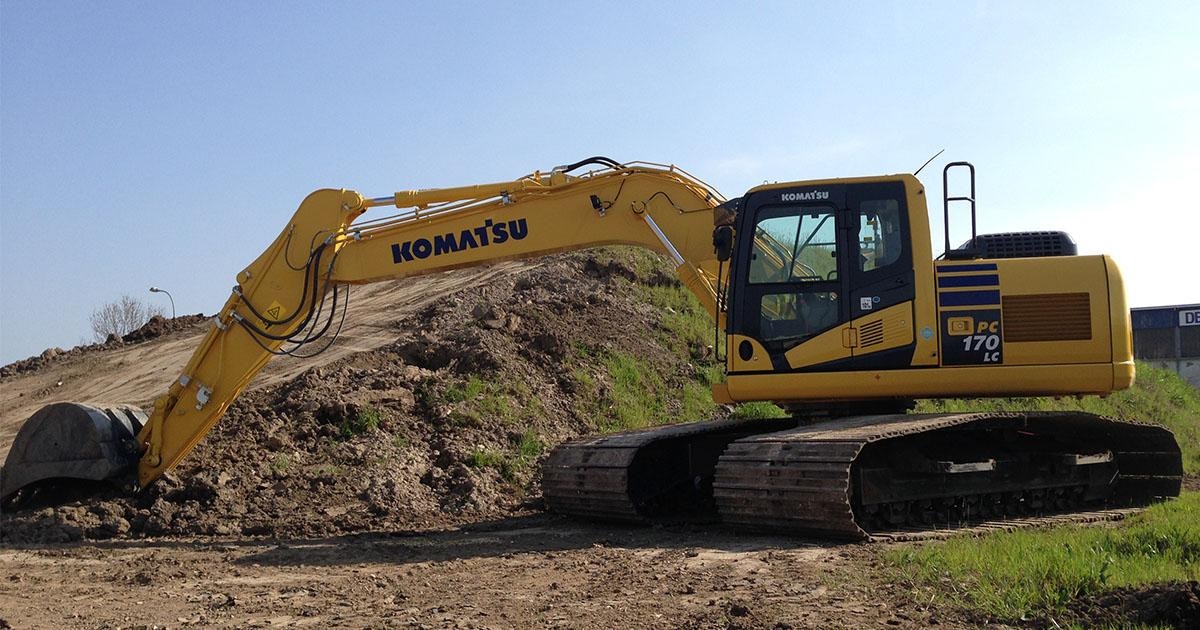

Komatsu PC170LC-10
Specifications & Parameters
| Engine Model | SAA4D107E-2A |
| Rated Power(kW) | 90 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 410 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 7-9 |
| Engine Displacement(L) | 4.46 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 121 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.94 |
| Bucket Digging Force(kN) | 123 |
| Boom Length(mm) | 5300 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 9160 |
| Maximum Digging Height(mm) | 6730 |
| Maximum Digging Depth(mm) | 6220 |
| Specifications(mm) | 9450×2590×2920 |
| Operating Weight(kg&ton) | 17280 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
18‑ton class mid‑size long‑track crawler excavator, versatile machine for urban construction, road projects, site development and general earth‑moving works. Powered by Komatsu SAA4D107E‑2 four‑cylinder turbo diesel engine delivering 86 kW net power at 2100 rpm, EU Stage IIIB compliant with cooled EGR and KDOC passive regeneration, no DPF replacement required. Up to 10 % better fuel efficiency versus previous generation models with variable‑geometry turbocharger for stable output under variable loads.
Reinforced LC heavy‑duty undercarriage with seven track rollers each side and hydraulic track adjusters. Extended track‑ground contact reduces ground pressure; optional LGP wide‑track configuration delivers excellent anti‑sinking performance on marshy and soft soil. Lifting capacity improved by 5 % with standard counterweight, up to 15 % gain when fitted with optional heavy counterweight for heavy lifting assignments.
Komatsu CLSS closed‑center load‑sensing hydraulic system with twin variable displacement main pumps. Multiple selectable work modes match power output to digging, lifting or attachment‑driven tasks. Low‑speed high‑flow characteristic delivers fast cycle times, smooth combined movements and accurate fine control for trenching, slope finishing and breaker work. Factory‑installed bi‑directional auxiliary hydraulic circuit supports breakers, thumbs and quick couplers without field re‑plumbing.
Boom and arm built with high‑tensile steel and cast high‑stress joints for enhanced durability. Bucket capacity ranges 0.45‑0.94 m³; rock‑type bucket available for abrasive conditions. Standard front for truck‑loading and mass earthmoving; long‑arm option for deeper excavation. Suitable for municipal engineering, highway construction, residential area site prep, pipeline laying and light‑demolition jobs.
ROPS/FOPS certified spacious SpaceCab with viscous vibration‑isolation mounts. Air‑suspension high‑back seat lowers operator fatigue for long‑hour shifts. Large 7‑inch colour LCD monitor displays engine parameters, real‑time fuel consumption and fault diagnostic codes. Standard KOMTRAX telematics enables remote fleet tracking, working‑hour logging and scheduled‑service reminders.
Major daily service check‑points are grouped for convenient ground‑level access. Operators can complete engine‑oil, filter and hydraulic‑oil inspections without climbing onto upper structures. Integrated KDOC after‑treatment has no scheduled filter replacement, lowering long‑term operating costs for rental and contracting fleets.
