Used KOMATSU PC650LC-10M0
Parameters
| Engine Model | SAA6D140E-7 |
| Rated Power(kW) | 327.3 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1780 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18-23 |
| Engine Displacement(L) | 15.24 |
| Emisson | Tier4F |
| Track width(mm) | 600 |
| Fuel Tank(L) | 880 |
| Hydraulic Tank(L) | 360 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 3.5 |
| Bucket Digging Force(kN) | 362 |
| Boom Length(mm) | 7800 |
| Stick Length(mm) | 3600 |
| Maximum Excavation Radius(mm) | 12650 |
| Maximum Digging Height(mm) | 7960 |
| Maximum Digging Depth(mm) | 8035 |
| Specifications(mm) | 12635×4250×4270 |
| Operating Weight(kg&ton) | 62160 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
SAA6D140 6-cylinder China IV large-displacement common rail engine, 325kW net power, passive DPF regeneration without urea, 20% higher power vs 55t machines, lower fuel & maintenance cost in mines.
4.58t heavy cast counterweight + extra-wide LC track chassis with 9 double flange rollers, low sinking risk on muddy ore yards, excellent stability for deep digging & heavy ore loading.
Two arm options: 7.8m standard long arm for deep open-pit stripping; 7.2m short SE arm with 4.0m³ large bucket boosts loading efficiency by 38%. Reinforced annealed boom & arm resist hard rock impact.
Triple-pump 920L/min CLSS regenerative hydraulic system with independent auxiliary circuit for 650-class heavy breakers, smooth combined movements & ultra-precise fine control.
Full heavy mining protection package including reinforced cylinder guards & long-life sealed pins, low deformation and oil leakage under long-term hard rock impact.
Factory pre-installed bi-directional auxiliary hydraulics support breakers, grapples, rippers & tilt buckets without pipe modification.
New Komtrax telematics monitors working hours, fuel consumption and DPF status; all service points at ground level for fast daily maintenance.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

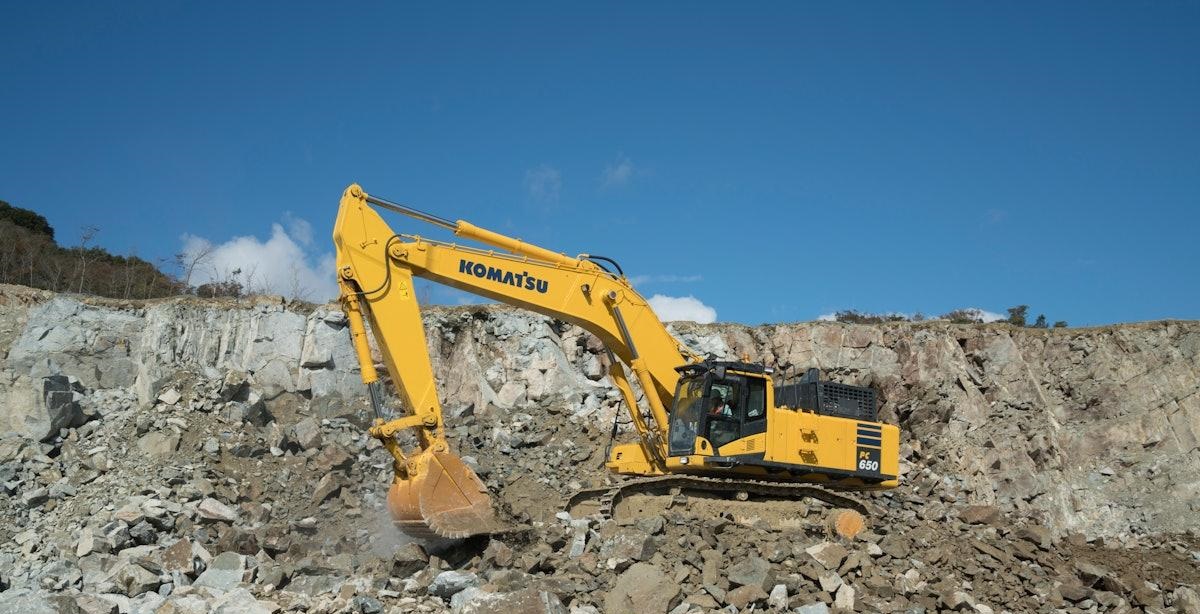

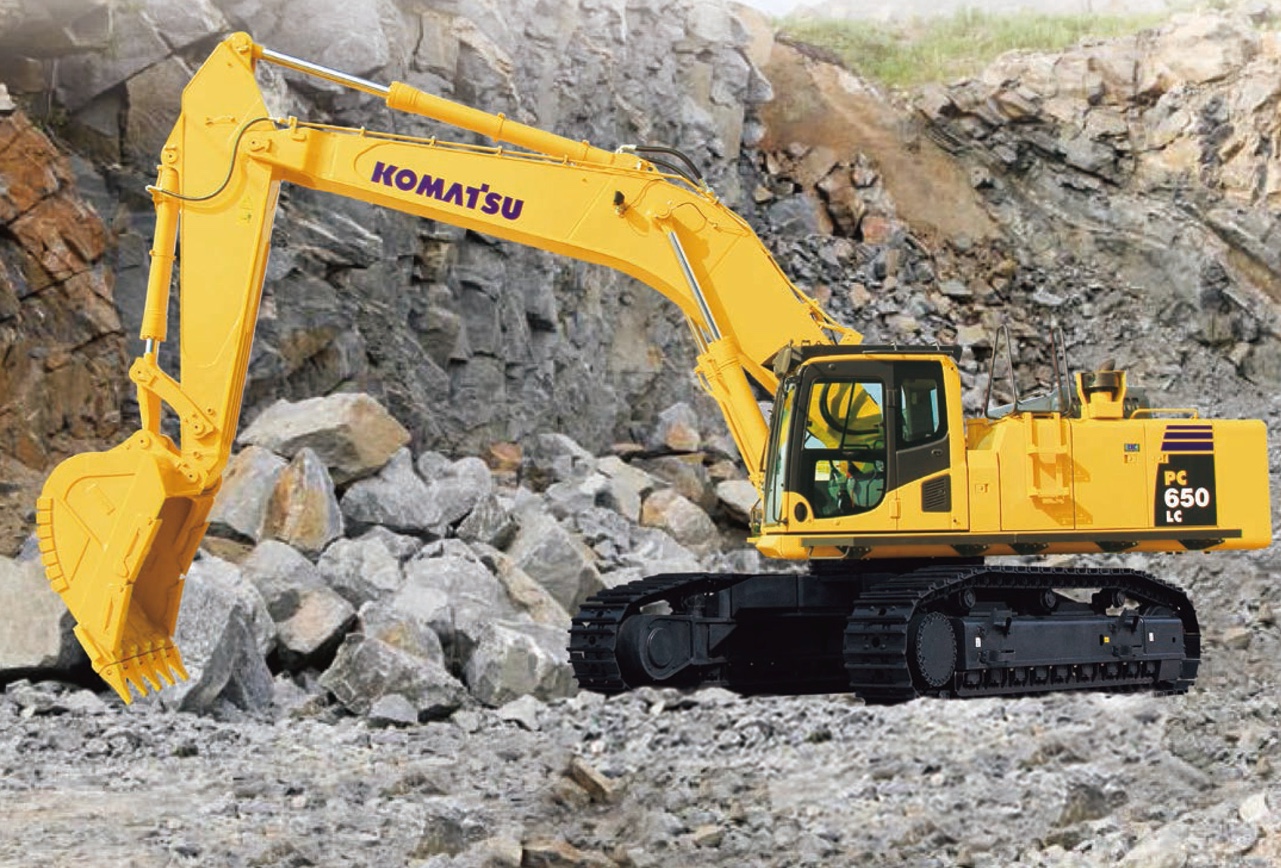

Photos
