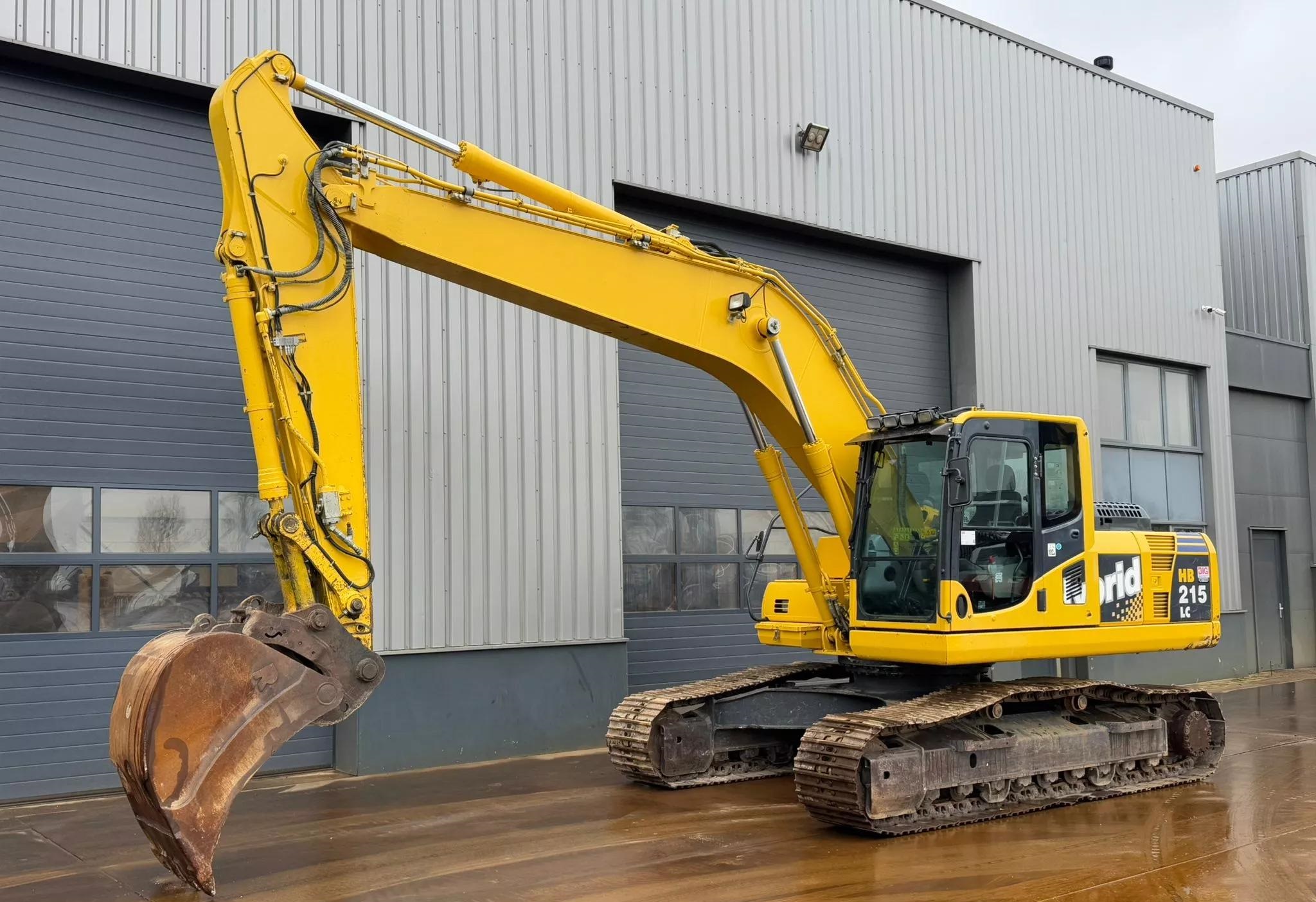

KOMATSU PC215HD-10M0
Specifications & Parameters
| Engine Model | SAA6D107E-1 |
| Rated Power(kW) | 123 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 735 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-13 |
| Engine Displacement(L) | 6.69 |
| Emisson | Tier4F |
| Track width(mm) | 600 |
| Fuel Tank(L) | 240 |
| Hydraulic Tank(L) | 132 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.20 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5850 |
| Stick Length(mm) | 3045 |
| Maximum Excavation Radius(mm) | 9860 |
| Maximum Digging Height(mm) | 7160 |
| Maximum Digging Depth(mm) | 6515 |
| Specifications(mm) | 9550×2980×3045 |
| Operating Weight(kg&ton) | 22300 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
22‑ton Class Heavy‑Duty HD Mining‑Spec Crawler Excavator
Heavy‑duty HD version built for quarry, hard rock excavation, stone loading and heavy earth‑moving works. Powered by Komatsu SAA6D107E‑1 six‑cylinder turbo diesel engine delivering 123 kW net power at 2000 rpm, 6.69L displacement, strong low‑end torque to avoid stall under heavy rock‑digging loads. Tier3 mechanical configuration without complex urea after‑treatment, good fuel‑economy and affordable spare‑parts for high‑intensity jobsites.
Reinforced HD Heavy‑Duty Undercarriage
Eight heavy‑load track rollers per side, full‑length stone guard plates and heavy wear‑resistant track shoes. Strengthened track frame improves anti‑abrasion performance under rocky conditions. Optimized overall weight raises whole‑machine stability, reliable for long‑shift operation in quarries and hard‑rock construction sites.
Heavy‑Reinforced Front Working Equipment
Thickened boom and arm with multi‑reinforced welding ribs, fully sealed dust‑proof pins reduce oil leakage under harsh rocky environments. Standard 1.2 m³ heavy‑duty rock bucket fitted with high‑wear‑resistant teeth. Factory pre‑installed bi‑directional auxiliary hydraulic circuit, directly compatible with heavy hydraulic breakers, grapples and tilt quick couplers without extra field modification.
Efficient CLSS HydrauMind Regenerative Hydraulic System
Dual variable‑displacement main pumps deliver total flow up to 490 L/min. Multiple selectable working modes: power, economy, lifting and attachment modes. Boom‑stick energy‑regeneration stabilizes hydraulic pressure during long‑time hammer breaking. Fast cycle speed, smooth compound movements and precise fine control for quarry stripping, rock loading and slope‑trimming assignments.
ROPS/FOPS Protective Operator Cab
Falling‑object‑protected cab with four‑point viscous shock‑absorbing mounting and full air‑conditioning. Air‑suspension high‑back seat eases fatigue during long working hours. 7‑inch colour TFT monitor clearly displays working mode, real‑time fuel consumption and fault diagnostic codes. Neutral‑start safety function enhances onsite operational safety.
Intelligent KOMTRAX Telematics Fleet Management
Real‑time remote monitoring of machine location, working hours, fuel consumption and fault data. Supports remote fault diagnosis and scheduled‑maintenance reminders, convenient for quarry and large‑construction‑site fleet supervision.
Practical Ground‑Level Routine Maintenance
All key service ports are arranged at ground‑level position. Single‑operator can complete daily inspection of engine oil, filters and hydraulic oil without climbing onto upper structures. Reinforced sealed pins and heavy chassis assemblies extend component service life in abrasive rock conditions and cut jobsite downtime.
