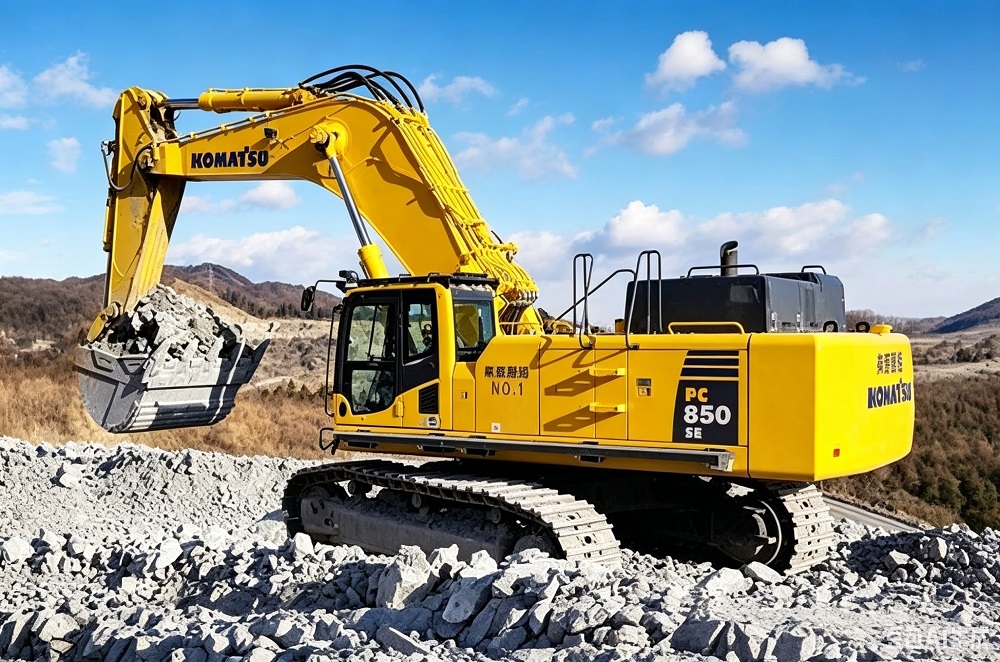

Used KOMATSU PC850LC-8
Parameters
| Engine Model | SAA6D140E-5 |
| Rated Power(kW) | 370 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 17-22 |
| Engine Displacement(L) | 15.24 |
| Emisson | Stage II |
| Track width(mm) | 900 |
| Fuel Tank(L) | 980 |
| Hydraulic Tank(L) | 420 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 3.4 |
| Bucket Digging Force(kN) | 538 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3600 |
| Maximum Excavation Radius(mm) | 13530 |
| Maximum Digging Height(mm) | 8060 |
| Maximum Digging Depth(mm) | 8445 |
| Specifications(mm) | 14120×3980×4580 |
| Operating Weight(kg&ton) | 78700 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Reliable Stage II Large Displacement Engine
SAA6D140E-5 six-cylinder turbo engine, net power 363kW, displacement 15.24L, EU Stage II emission standard. No DPF or urea SCR, simple structure and low daily mining maintenance cost. Ultra high low-end torque ensures steady power for heavy rock digging and long-time hammer breaking without stall.
Reinforced LC Heavy-Duty Mining Undercarriage
8 track rollers + 3 carrier rollers per side, full-length stone guard plates protect undercarriage from rock impact. Total operating weight 78.7t reduces ground pressure, excellent anti-sinking performance on muddy open-pit ground, superior stability for deep digging and heavy side lifting.
High-Efficiency EOLSS Regenerative Hydraulics
Dual main pumps total flow up to 965L/min. Unique stick quick return circuit speeds up dumping cycle and improves loading productivity. Boom & stick energy regeneration stabilizes hydraulic pressure during round-the-clock rock breaking. Factory pre-installed bi-directional auxiliary hydraulic circuit fits heavy breakers and grapples directly without refitting.
High Productivity Mining Working Equipment
Max optional 4.3m³ large capacity rock bucket greatly boosts ore loading efficiency. Two arm options: standard long arm for digging & short SE arm dedicated to high-speed truck loading.
Safe & Comfort Mining Operator Cab
ROPS/FOPS falling-object protection air-conditioned cab with four-point shock absorption and reclining air suspension seat. Large color multi-language monitor displays real-time fuel consumption and fault codes. Standard KOMTRAX telematics supports remote fleet monitoring, location tracking and maintenance reminder.
Convenient Ground-Level Maintenance
All service ports are arranged at ground height, single-person daily inspection without climbing machine, effectively reducing mining downtime.
