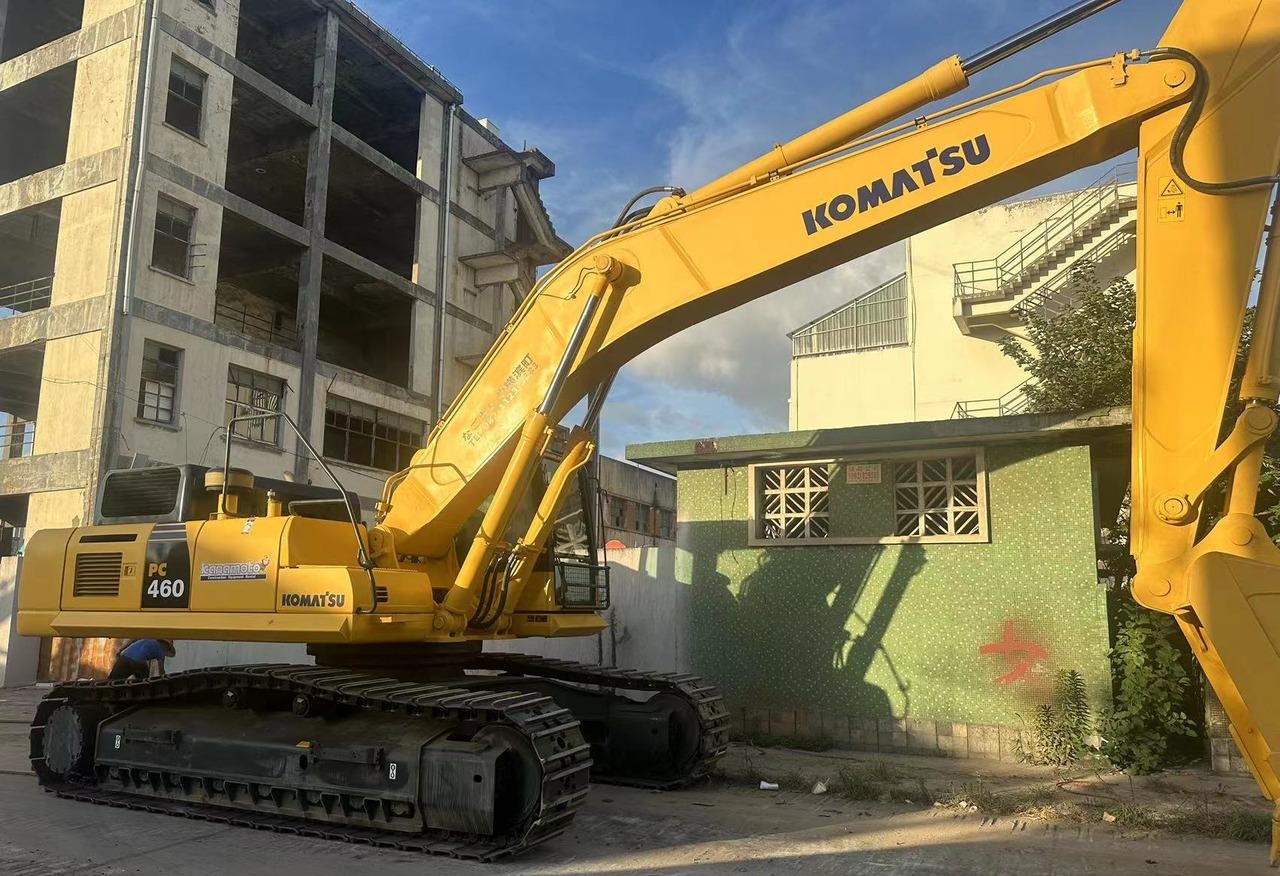

KOMATSU PC460HD
Specifications & Parameters
| Engine Model | SAA6D125E-5 |
| Rated Power(kW) | 270 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1280 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 14-18 |
| Engine Displacement(L) | 11.04 |
| Emisson | Tier3A |
| Track width(mm) | 900 |
| Fuel Tank(L) | 650 |
| Hydraulic Tank(L) | 248 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 2.3 |
| Bucket Digging Force(kN) | 305 |
| Boom Length(mm) | 7060 |
| Stick Length(mm) | 3380 |
| Maximum Excavation Radius(mm) | 11800 |
| Maximum Digging Height(mm) | 7625 |
| Maximum Digging Depth(mm) | 7790 |
| Specifications(mm) | 12040×3720×3660 |
| Operating Weight(kg&ton) | 47250 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Powerful Durable Engine System
Adopts SAA6D125E-5 six-cylinder turbocharged Tier3 direct injection engine, net power 257kW, peak torque 1280N·m at low rpm. No urea exhaust aftertreatment, simple mechanical structure and low daily mining maintenance cost, no power stall under heavy rock digging & crushing.
Full HD Heavy-Duty Mining Undercarriage
Exclusive heavy-duty mining chassis with 8 track rollers per side, full-length stone guard plates and 900mm extra wide wear-resistant track shoes. 4.08t super heavy cast counterweight raises total operating weight to 47.25t, outstanding anti-lift stability during deep digging and massive ore loading, suitable for 24h non-stop mining operation.
Reinforced Heavy Mining Working Equipment
Thickened boom & arm with double reinforced welding ribs, long-life fully sealed dust-proof pins to prevent oil leakage. Standard 2.3m³ heavy-duty rock bucket with high wear-resistant teeth. Factory pre-installed bi-directional large-flow auxiliary hydraulic circuit, directly compatible with 460-class heavy hydraulic breakers, grapples and tilt quick couplers without extra refitting.
High-Efficiency CLSS Regenerative Hydraulic System
Dual variable displacement main pumps provide total flow up to 722L/min. Boom & stick energy regeneration technology stabilizes hydraulic pressure during all-day hard rock crushing, smooth compound movements and ultra-precise fine control for quarry stripping and mass material loading.
Mine-Safe Operator Cab
ROPS/FOPS falling-object protection cab with standard front stone guard net, four-point shock-absorbing suspension and full air conditioning. Air suspension leather seat with lumbar support, one-touch ISO control pattern switch. 7-inch color monitor clearly displays working mode, real-time fuel consumption and fault codes.
Intelligent Komtrax Telematics Fleet Management
Real-time monitoring of machine location, working hours, fuel consumption and fault data, supports remote fault diagnosis and scheduled maintenance reminder, greatly simplifies large open-pit mine fleet operation management.
Low Mining Maintenance Cost
All service access ports are arranged at ground level, single-person daily inspection of engine oil, filters and hydraulic oil without climbing equipment, effectively cutting mine downtime. Reinforced sealed pins and heavy-duty chassis components reduce part replacement frequency under harsh abrasive rock conditions.
Interested in used KOMATSU PC460HD excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
