KOMATSU PC228USLC
Specifications & Parameters
| Engine Model | SAA6D107E-3 |
| Rated Power(kW) | 123 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 560 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 8-10 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 310 |
| Hydraulic Tank(L) | 142 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.97 |
| Bucket Digging Force(kN) | 152 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9950 |
| Maximum Digging Height(mm) | 7250 |
| Maximum Digging Depth(mm) | 6620 |
| Specifications(mm) | 8890×3080×2990 |
| Operating Weight(kg&ton) | 24120 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Ultra Short Swing Tail Design
Tail swing radius only 2310mm, rear counterweight never overhangs track width. Zero collision risk for urban narrow road, basement, residential area and indoor demolition jobs, no extra site widening required.
Extended LC Heavy-Duty Undercarriage
9 track rollers with long ground contact length, wider LC gauge cuts ground pressure, excellent anti-sinking performance on muddy soft ground, better stability for deep digging and lifting than standard short-track short-tail models.
Low-Emission Powerful Engine
SAA6D107 six-cylinder turbo common rail engine with net power 123kW, displacement 6.69L, high low-end torque without stalling under heavy loads. Stage V aftertreatment system with DOC+DPF+SCR urea, meets strict urban emission standards, 4% lower fuel consumption than old versions.
High-Efficiency HydrauMind Regenerative Hydraulics
Dual variable displacement main pumps deliver total flow up to 490L/min. Boom & stick energy regeneration stabilizes pressure during long-hour hammer breaking, smooth compound movements and ultra-precise fine control for pipeline digging and slope trimming. Factory pre-installed bi-directional auxiliary hydraulic circuit fits 22t breakers, grapples and tilt quick couplers directly.
Urban Safety-Oriented Operator Cab
ROPS/FOPS falling-object protection air-conditioned cab with four-point shock absorption. Standard KomVision 4-way panoramic camera + pedestrian collision warning system improves safety in crowded downtown construction sites. 10-inch touch monitor clearly displays fuel consumption, exhaust treatment status and fault codes.
Intelligent KOMTRAX Telematics Fleet Management
Real-time remote monitoring of machine location, working hours, fuel consumption, DPF regeneration and DEF urea level, supports remote fault diagnosis and scheduled maintenance reminder, convenient for urban construction fleet management.
Easy Ground-Level Maintenance
All service ports are arranged at ground level, single-person daily inspection of engine oil, filters and hydraulic oil without climbing equipment, effectively cutting construction site downtime.
Interested in used KOMATSU PC228USLC excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

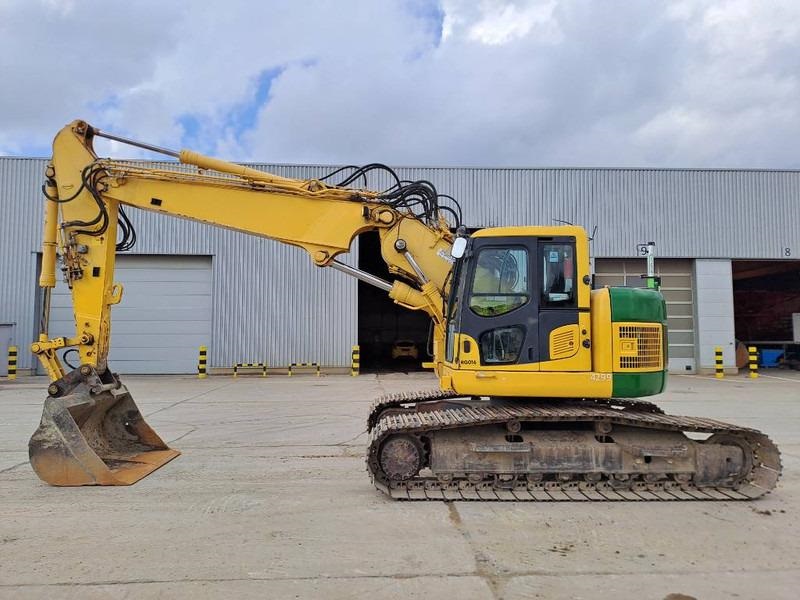

Photos
