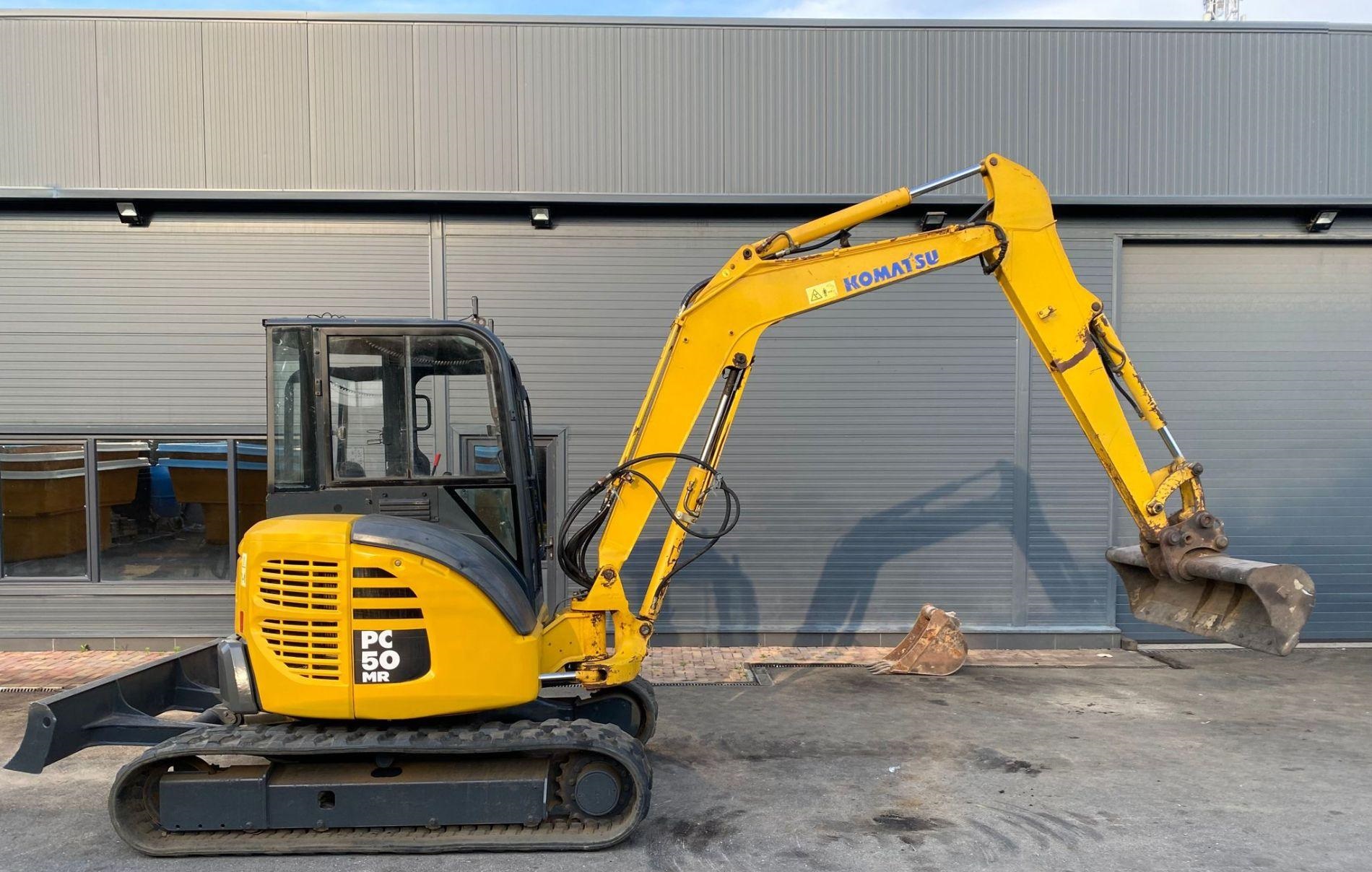

KOMATSU PC50MR
Specifications & Parameters
| Engine Model | 4D88E-5 |
| Rated Power(kW) | 29.4 |
| Engine Revolutions(rpm) | 2350 |
| Maximum Torque(N·m) | 137 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 3-4 |
| Engine Displacement(L) | 2.19 |
| Emisson | Tier 3 |
| Track width(mm) | 350 |
| Fuel Tank(L) | 65 |
| Hydraulic Tank(L) | 34 |
| Travel Speed(km/h) | 4.3 |
| Bucket Capacity(m³) | 0.16 |
| Bucket Digging Force(kN) | 39.8 |
| Boom Length(mm) | 2650 |
| Stick Length(mm) | 1540 |
| Maximum Excavation Radius(mm) | 5760 |
| Maximum Digging Height(mm) | 3970 |
| Maximum Digging Depth(mm) | 3680 |
| Specifications(mm) | 5480×2120×2610 |
| Operating Weight(kg&ton) | 5350 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Minimal Zero Tail Swing Design
Tail swing radius only 1050mm, rear counterweight never overhangs track width. Zero collision risk for narrow residential alleys, basement, indoor demolition and fruit orchard operations.
Compact Narrow Frame
Total width only 2120mm, fits narrow rural roads and small underground parking lots, easy flatbed transportation with low logistics cost.
Low-Cost Reliable Naturally Aspirated Engine
4D88E four-cylinder mechanical direct injection engine, no DPF/SCR urea system, cheap universal spare parts and simple maintenance, ideal for individual orchard and municipal contractors.
Low Ground Pressure & Optional Rubber Tracks
Light operating weight delivers low ground pressure; optional rubber tracks prevent damage to asphalt roads and orchard root systems.
Standard Wide Front Dozer Blade
Integrated large dozer blade levels ground instantly on limited narrow sites, no extra small loader required for site preparation.
Precise Fine Control CLSS Hydraulics
Regenerative hydraulic system provides ultra-smooth delicate manipulation, perfectly suitable for seedling transplanting, delicate pipeline trenching and indoor hammer breaking.
