KOMATSU PC520LC-10M0
Specifications & Parameters
| Engine Model | SAA6D125E-5 |
| Rated Power(kW) | 270 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1420 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 13-17 |
| Engine Displacement(L) | 11.04 |
| Emisson | Tier4F |
| Track width(mm) | 600 |
| Fuel Tank(L) | 720 |
| Hydraulic Tank(L) | 279 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 3.22 |
| Bucket Digging Force(kN) | 348 |
| Boom Length(mm) | 7060 |
| Stick Length(mm) | 3380 |
| Maximum Excavation Radius(mm) | 12005 |
| Maximum Digging Height(mm) | 7625 |
| Maximum Digging Depth(mm) | 7790 |
| Specifications(mm) | 12260×3580×3460 |
| Operating Weight(kg&ton) | 52200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

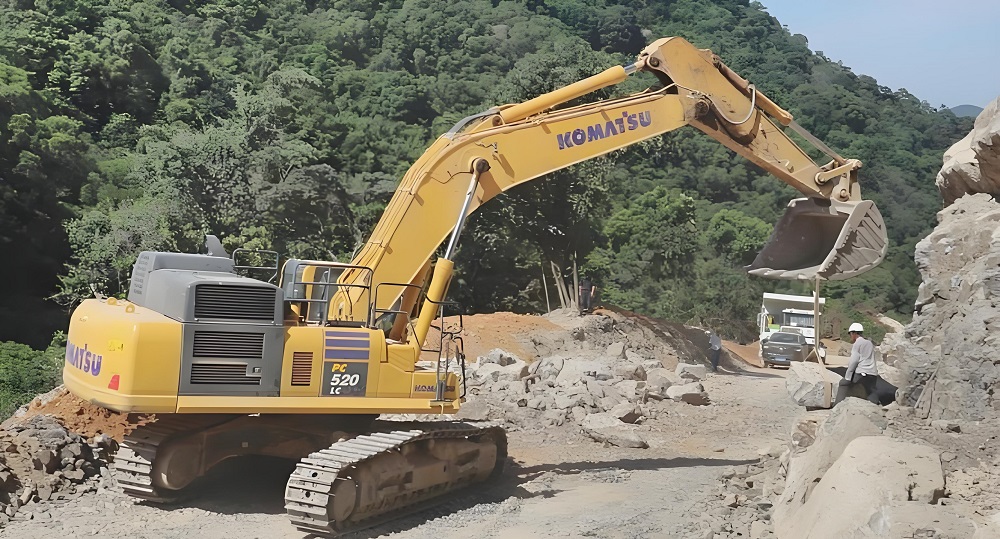

52‑ton class large long-track crawler excavator built for open-pit mining, quarry stripping and heavy ore loading operations.
Powered by Komatsu SAA6D125E‑5 six-cylinder common rail diesel engine, net power 269kW, China IV emission standard with passive DPF regeneration, no urea required. Delivers 10% lower fuel consumption compared to older models, strong digging force and stable power output under continuous heavy rock workload.
Reinforced wide LC heavy-duty undercarriage with double flange track rollers and heavy-duty wear-resistant track shoes. 4.32t heavy cast counterweight provides outstanding stability during deep excavation and massive ore loading, low sinking risk on muddy mine sites.
Two working front configurations available. Standard long boom for open-pit overburden stripping. Short SE boom paired with 4.2m³ large rock bucket boosts loading efficiency by 25%. Annealed and reinforced boom & arm resist heavy impact from hard rock mining.
CLSS regenerative hydraulic system with total flow up to 722L/min and independent auxiliary hydraulic circuit, compatible with 550-class heavy hydraulic breakers. Smooth combined movements and ultra-precise fine control for quarry and mining tasks.
Full mining protection kit fitted as standard, including reinforced cylinder guards and long-life sealed pins. Minimizes deformation and oil leakage under long-term hard rock impact.
Factory pre-installed bi-directional auxiliary hydraulic lines, ready for breakers, grapples, rippers and tilt buckets without extra pipe modification on site.
Updated Komtrax telematics system monitors machine working hours, fuel consumption and DPF operating status. All key service access points are arranged at ground level for convenient daily inspection and maintenance.
