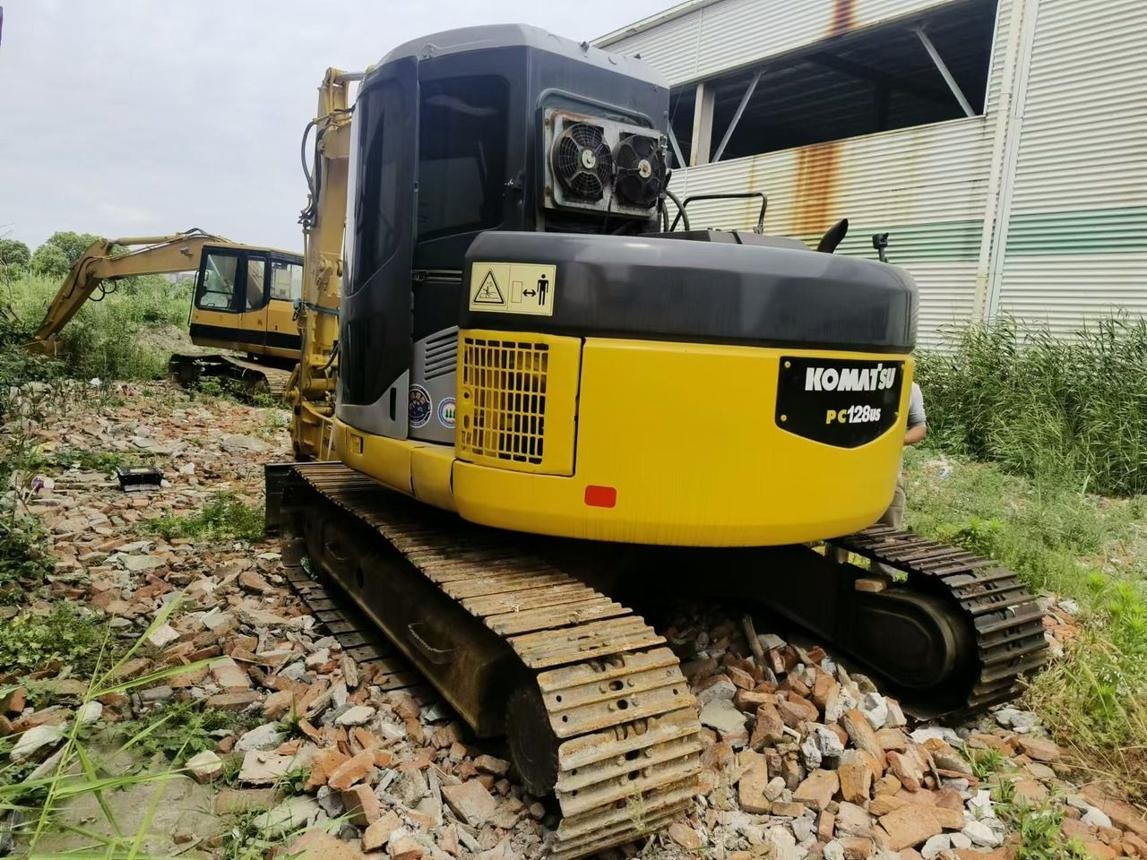

KOMATSU PC128US-3
Specifications & Parameters
| Engine Model | S4D102E-2 |
| Rated Power(kW) | 66 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 312 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5.5-7.5 |
| Engine Displacement(L) | 3.89 |
| Emisson | Tier2 |
| Track width(mm) | 500 |
| Fuel Tank(L) | 140 |
| Hydraulic Tank(L) | 95 |
| Travel Speed(km/h) | 3.6 |
| Bucket Capacity(m³) | 0.45 |
| Bucket Digging Force(kN) | 92 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8290 |
| Maximum Digging Height(mm) | 6910 |
| Maximum Digging Depth(mm) | 5405 |
| Specifications(mm) | 7350×2460×2752 |
| Operating Weight(kg&ton) | 12950 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Ultra Short Swing Tail Design
Tail swing radius only 1420mm, rear counterweight never overhangs track width. Zero collision risk in narrow residential roads, basement, indoor demolition and pipeline trench jobs.
Compact Mini Medium Frame
Total width only 2460mm, fits standard underground parking and community passages, easy flatbed transportation with low logistics cost.
Simple & Reliable S4D102 Turbo Engine
4-cylinder mechanical direct injection, no DPF/SCR urea system, cheap spare parts and simple maintenance, low long-term operation cost for municipal projects.
Precise CLSS Regenerative Hydraulics
Dual variable pumps deliver smooth compound movements with excellent fine control, ideal for delicate pipeline digging, slope trimming and indoor hammer breaking.
Stable Undercarriage with Standard Dozer Blade
7 track rollers plus front dozer blade, self-leveling working platform and better stability on limited narrow ground.
High Site Adaptability
No extra space widening required during construction, saves site rental and labor cost for downtown tight-space projects.
Interested in used KOMATSU PC128US-3 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
