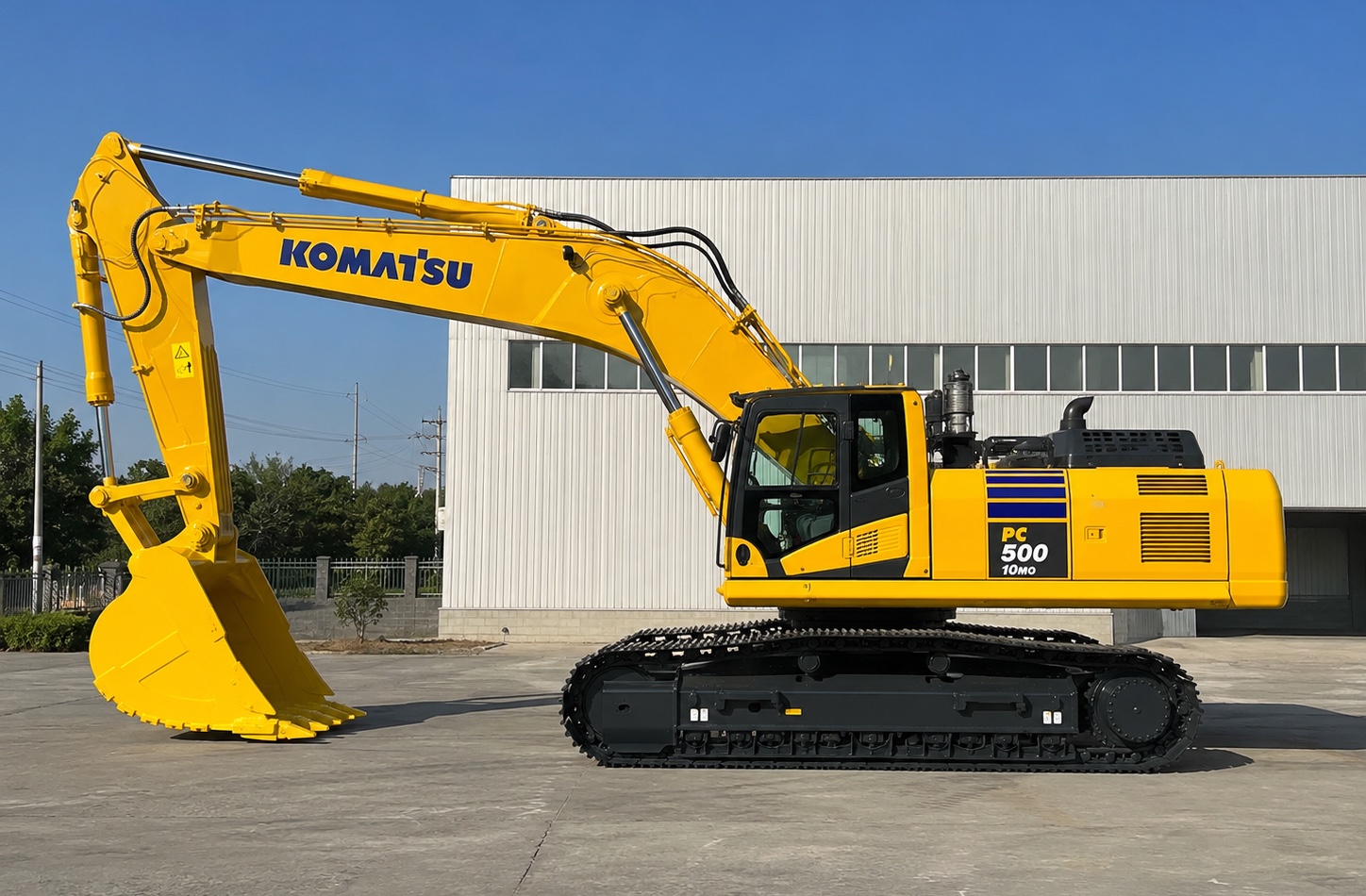

KOMATSU PC500-10MO
Specifications & Parameters
| Engine Model | SAA6D125E-5 |
| Rated Power(kW) | 270 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1420 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12-16 |
| Engine Displacement(L) | 11.04 |
| Emisson | Tier4F |
| Track width(mm) | 600 |
| Fuel Tank(L) | 720 |
| Hydraulic Tank(L) | 279 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 3.22 |
| Bucket Digging Force(kN) | 339 |
| Boom Length(mm) | 7060 |
| Stick Length(mm) | 3380 |
| Maximum Excavation Radius(mm) | 12005 |
| Maximum Digging Height(mm) | 7625 |
| Maximum Digging Depth(mm) | 7790 |
| Specifications(mm) | 12260×3580×3460 |
| Operating Weight(kg&ton) | 49800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Equipped with SAA6D125 6-cylinder China IV common rail engine, 269kW net power & 1420N·m low-speed torque, higher productivity than PC460-8. DOC+DPF passive regeneration without urea cuts mining maintenance cost and saves 10% fuel.
Extended LC heavy-duty mining chassis with 3.92t heavy counterweight, double flange rollers & chamfered mining tracks provide low ground pressure and superior stability during deep digging & heavy ore loading.
Two arm options available: 7.06m standard long arm for deep open-pit stripping; 6.67m short arm with 4.0m³ large bucket boosts earth loading efficiency by 20%. Reinforced annealed boom & arm improve impact resistance for harsh mine conditions.
CLSS closed-center dual regenerative pumps with total flow 722L/min, independent auxiliary circuit for 500-class heavy breakers, smooth combined movements with ultra-precise fine control.
Full mine protection package including reinforced boom cylinder guards, heavy-duty sealed pins, reduces deformation and oil leakage under long-term rock impact, low overall failure rate.
Factory pre-installed bi-directional auxiliary hydraulic lines support breakers, grapples, rippers & tilt buckets without extra pipe modification, multi-purpose for open-pit stripping and mass loading.
New generation Komtrax telematics real-tracks working hours, fuel consumption, DPF regeneration status and location for efficient medium & large mine fleet management.
All ground-level service access points enable single-person daily maintenance without climbing, cutting downtime on mining sites.
Interested in used KOMATSU PC500-10MO excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
