KOMATSU PC700-8
Specifications & Parameters
| Engine Model | SAA6D140E-5 |
| Rated Power(kW) | 323 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1720 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19-25 |
| Engine Displacement(L) | 15.24 |
| Emisson | Tier3A |
| Track width(mm) | 700 |
| Fuel Tank(L) | 880 |
| Hydraulic Tank(L) | 360 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 3.2 |
| Bucket Digging Force(kN) | 362 |
| Boom Length(mm) | 7600 |
| Stick Length(mm) | 3500 |
| Maximum Excavation Radius(mm) | 11585 |
| Maximum Digging Height(mm) | 7360 |
| Maximum Digging Depth(mm) | 6910 |
| Specifications(mm) | 11990×3910×4300 |
| Operating Weight(kg&ton) | 67100 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

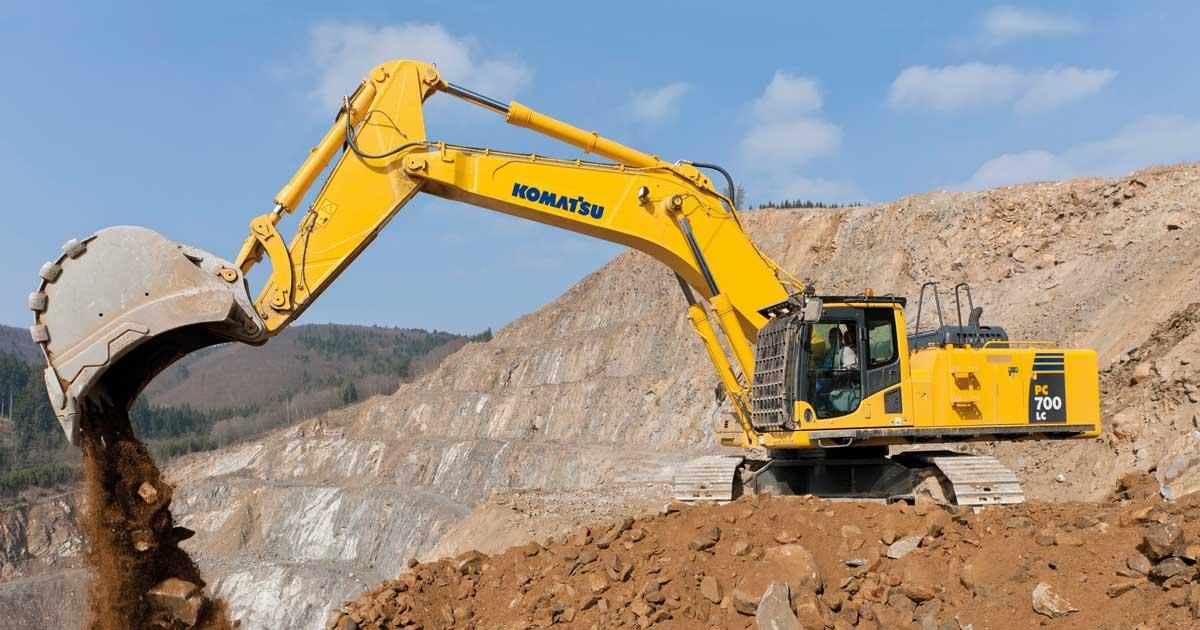

67‑ton class large heavy‑duty mining crawler excavator, purpose‑built for open‑pit mines, quarry rock excavation, high‑volume overburden stripping and massive ore‑loading assignments.
Powered by Komatsu SAA6D140E‑5 six‑cylinder turbocharged common‑rail diesel engine delivering 320 kW net power at 1800 rpm, strong low‑end torque output, stable power delivery under continuous heavy rock‑digging workload. Tier3 mechanical configuration without complex urea after‑treatment, reliable performance and affordable spare‑parts for 24‑hour mining operation.
Heavy‑duty reinforced mining‑spec undercarriage inherited from higher‑class machine platform, eight heavy‑load track rollers per side, full‑length rock guard plates and heavy wear‑resistant track shoes. Optimized heavy counterweight delivers outstanding machine stability, low sinking risk on muddy ore yards under heavy‑load digging and truck‑loading cycles.
Dual working front configurations available. Standard long boom for deep open‑pit overburden removal; short SE heavy‑duty boom matched with large 4.0 m³ rock bucket shortens loading cycle time for high‑productivity mine sites. Thickened high‑tensile‑steel boom & arm with multi‑reinforced welding ribs, long‑life fully sealed dust‑proof pins resist heavy rock impact and reduce oil‑leak failures in harsh mining environments.
High‑flow CLSS closed‑center load‑sensing regenerative hydraulic system, twin large‑displacement main pumps deliver ample total flow. Multiple selectable work modes including power, economy and lifting‑boost mode. Smooth simultaneous compound movements and precise fine control for rock digging, stripping and mass material loading tasks. Factory‑pre‑fitted bi‑directional large‑flow auxiliary hydraulic circuit supports ultra‑heavy hydraulic breakers, grapples and rippers without on‑site pipe modification.
ROPS/FOPS certified large mining‑grade operator cab with thick stone‑protection guards, four‑point viscous vibration‑damping mounting and full air‑conditioning system. Low‑noise interior, high‑capacity colour TFT monitor clearly displays engine parameters, real‑time fuel consumption and fault diagnostic codes, lifting‑mode function adds extra lifting force for heavy‑object handling.
KOMTRAX telematics system provides real‑time remote fleet monitoring: machine location, working hours, fuel consumption and fault alarm data. Supports remote fault diagnosis and scheduled‑maintenance reminders, greatly simplifies large‑scale open‑pit mine fleet management.
Major daily service check‑points are grouped at ground‑level access position. Single‑operator can complete routine inspection of engine oil, filters and hydraulic oil without climbing upper structures. Reinforced chassis and front‑end components extend service life under abrasive rocky conditions and minimize mine‑site downtime.
Interested in used KOMATSU PC700-8 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
