KOMATSU PC600LC-8
Specifications & Parameters
| Engine Model | SAA6D140E-5 |
| Rated Power(kW) | 323 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1720 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18-24 |
| Engine Displacement(L) | 15.24 |
| Emisson | Tier3A |
| Track width(mm) | 700 |
| Fuel Tank(L) | 880 |
| Hydraulic Tank(L) | 360 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 3.2 |
| Bucket Digging Force(kN) | 358 |
| Boom Length(mm) | 7800 |
| Stick Length(mm) | 3600 |
| Maximum Excavation Radius(mm) | 12180 |
| Maximum Digging Height(mm) | 7625 |
| Maximum Digging Depth(mm) | 7790 |
| Specifications(mm) | 12910×3490×4300 |
| Operating Weight(kg&ton) | 60500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
60‑ton class large heavy‑duty mining crawler excavator, purpose‑built for open‑pit mines, quarry rock excavation, high‑volume overburden stripping and heavy ore‑loading operations.
Powered by Komatsu SAA6D140E‑5 six‑cylinder turbo‑charged diesel engine delivering 320 kW net power at 1800 rpm, strong low‑end torque output, stable power delivery under continuous heavy rock‑digging workload. Tier‑3 mechanical configuration without complicated urea after‑treatment, proven reliability and cost‑effective spare‑parts for round‑the‑clock mining production.
Reinforced mining‑spec heavy‑duty undercarriage with eight heavy‑load track rollers per side, heavy‑duty wear‑resistant track shoes and optional full‑length rock guard plates. Optimized heavy counterweight delivers outstanding whole‑machine stability, low sinking risk on muddy ore yards during heavy‑load digging and truck‑loading cycles.
Multiple front‑end working configurations available. Standard long boom for deep open‑pit overburden removal; short heavy‑duty boom matched with large‑capacity rock bucket shortens loading cycle time for high‑output mine sites. Thickened high‑tensile‑steel boom & arm with multi‑reinforced welding ribs, long‑life fully sealed dust‑proof pins resist heavy rock impact and minimize oil‑leak failures in harsh abrasive mining environments.
High‑flow CLSS closed‑center load‑sensing regenerative hydraulic system with twin large‑displacement main pumps. Power‑Max function delivers temporary 8 % digging‑force boost, lift‑mode increases lifting capacity by 17 %. Multiple selectable working modes: power, economy and precision mode. Smooth simultaneous compound movements and fine controllability for rock digging, stripping and mass‑material loading. Factory‑pre‑fitted bi‑directional large‑flow auxiliary hydraulic circuit supports heavy hydraulic breakers, grapples and rippers without on‑site pipe modification.
ROPS/FOPS certified large mining‑grade operator cab with stone‑protection guards, four‑point viscous vibration‑damping mounting and full air‑conditioning system. Low‑noise interior, high‑capacity colour TFT monitor clearly displays engine parameters, real‑time fuel consumption and fault diagnostic codes for efficient machine supervision.
KOMTRAX telematics system enables real‑time remote fleet monitoring of machine location, working hours, fuel consumption and fault‑alarm data. Supports remote fault diagnosis and scheduled‑maintenance reminders, greatly simplifies large‑scale open‑pit mine fleet management.
Major daily service check‑points are grouped for convenient ground‑level access. Single‑operator can complete routine inspection of engine oil, filters and hydraulic oil without climbing upper structures. Reinforced chassis and front‑end components extend service life under abrasive rocky conditions and minimize mine‑site downtime.
Interested in used KOMATSU PC600LC-8 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

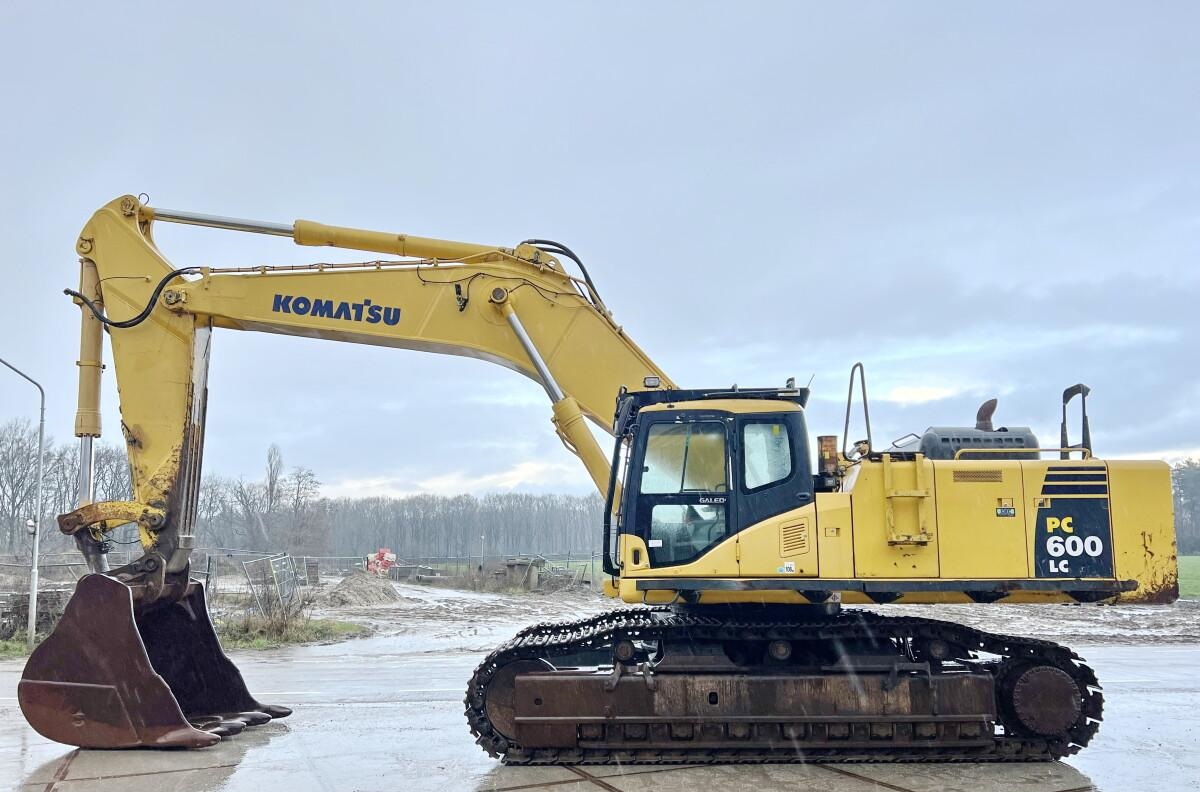

Photos
