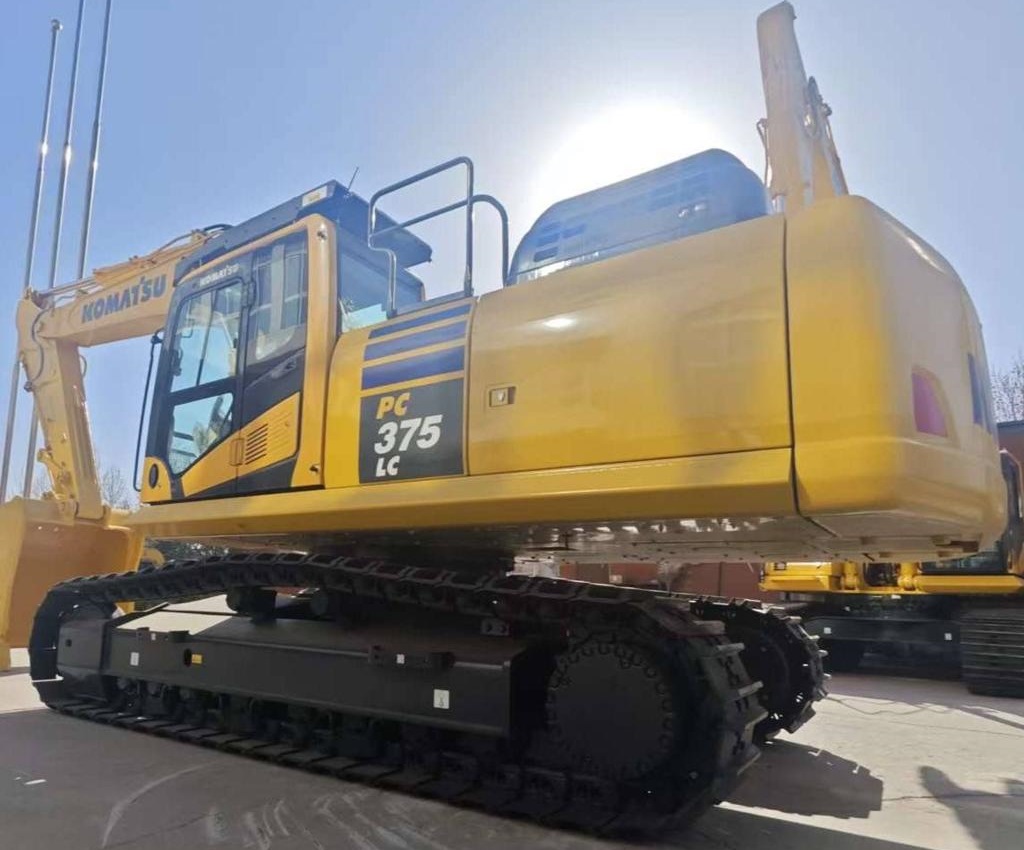

KOMATSU PC375LC-10M0
Specifications & Parameters
| Engine Model | SAA6D114E-6 |
| Rated Power(kW) | 202.3 |
| Engine Revolutions(rpm) | 1950 |
| Maximum Torque(N·m) | 985 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-14 |
| Engine Displacement(L) | 8.85 |
| Emisson | Tier4F |
| Track width(mm) | 800 |
| Fuel Tank(L) | 605 |
| Hydraulic Tank(L) | 188 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.9 |
| Bucket Digging Force(kN) | 210 |
| Boom Length(mm) | 6470 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 10905 |
| Maximum Digging Height(mm) | 6820 |
| Maximum Digging Depth(mm) | 7145 |
| Specifications(mm) | 11150×3290×3285 |
| Operating Weight(kg&ton) | 36600 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
36.6‑ton class heavy‑duty LC crawler excavator built for open‑pit mining, quarry rock excavation, overburden stripping, heavy ore‑loading and large‑scale municipal earth‑moving projects.
Powered by Komatsu SAA6D114E‑6 six‑cylinder common‑rail turbo engine, 202.3 kW net power, China IV emission standard with passive DPF regeneration without urea. Delivers strong low‑speed torque, 10% fuel saving compared to older generation, stable power output under continuous heavy‑load mining cycles.
Extended LC wide‑track heavy‑duty undercarriage with double‑flange track rollers, chamfered mining track shoes and reinforced rock guards. Optimized heavy counterweight enlarges ground contact area, lowers ground pressure, anti‑sinking performance on muddy ore yards, guarantees outstanding stability during deep digging and heavy rock loading.
Multiple front‑end working configurations available. Standard 6.45m boom + 3.05m arm matched with 2.1 m³ heavy‑rock bucket improves loading efficiency. Optional short heavy‑break arm and long deep‑dig arm adapt to medium‑large open‑pit mines, river dredging and large infrastructure sites.
CLSS closed‑center regenerative hydraulic system, dual variable displacement main pumps deliver high total flow. Independent auxiliary circuit supports 400‑class heavy hydraulic breakers for full‑day rock breaking work. Smooth compound movements and ultra‑precise fine control for digging, lifting and grading tasks.
Reinforced annealed mining‑spec boom & arm, fully sealed long‑life dust‑proof pins effectively resist deformation and oil leakage under long‑term hard‑rock impact, reduces overall failure rate in harsh mining conditions.
Factory pre‑installed bi‑directional auxiliary hydraulic lines support breakers, grapples, rippers and tilt buckets without on‑site pipe modification, multi‑purpose for mine stripping and bulk‑material loading assignments.
Latest‑generation Komtrax telematics monitors real‑time working hours, fuel consumption, DPF regeneration status and machine location, enables efficient fleet management for medium and large‑scale open‑pit mines.
All key daily service points are arranged at ground‑level access. Single‑operator completes routine inspection and maintenance without climbing upper structures, shortens machine downtime on mining jobsites.
Interested in used KOMATSU PC375LC-10M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
