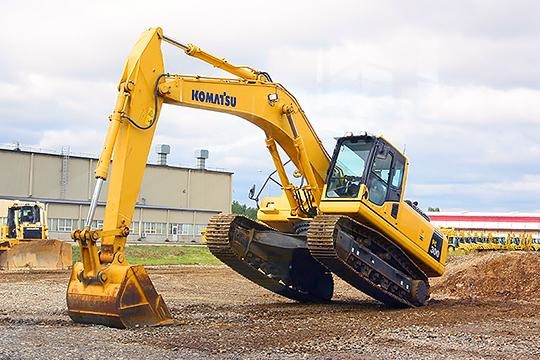

KOMATSU PC300-8
Specifications & Parameters
| Engine Model | SAA6D114E-3 |
| Rated Power(kW) | 194 |
| Engine Revolutions(rpm) | 1950 |
| Maximum Torque(N·m) | 905 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-15 |
| Engine Displacement(L) | 8.27 |
| Emisson | Tier3A |
| Track width(mm) | 800 |
| Fuel Tank(L) | 605 |
| Hydraulic Tank(L) | 188 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.6 |
| Bucket Digging Force(kN) | 232 |
| Boom Length(mm) | 6470 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11100 |
| Maximum Digging Height(mm) | 7050 |
| Maximum Digging Depth(mm) | 7380 |
| Specifications(mm) | 11150×3290×3145 |
| Operating Weight(kg&ton) | 32010 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Equipped with SAA6D114 6-cylinder turbo Tier3 engine, 187kW net power & 905N·m low-speed torque, more powerful than PC270-8. Simple structure without exhaust aftertreatment reduces mining maintenance cost.
Extended LC long-wide track chassis delivers larger ground contact area & lower ground pressure, anti-sinking on muddy mine sites. 2.72t heavy counterweight ensures superior stability during deep digging, lifting and heavy loading.
Standard 6.47m boom + 3.2m arm with 1.6m³ rock bucket provides high loading efficiency for stone & earth work. Optional short breaking arm & long deep-dig arm fit open-pit mining, large municipal projects and river dredging.
HydrauMind closed-center dual regenerative pumps with total flow 535L/min support all-day operation for 300-class heavy breakers, smooth combined movements with ultra-precise fine control.
Reinforced heavy-duty boom & stick with fully sealed dust-proof pins resist deformation and oil leakage during long-term hard rock breaking & heavy earth work, low overall failure rate.
Factory pre-installed bi-directional auxiliary hydraulic lines support breakers, grapples, rippers & tilt buckets without extra pipe modification, multi-purpose for mining stripping and mass loading.
Standard Komtrax telematics enables real-time monitoring of working hours, fuel consumption and location for efficient mine & earthwork fleet management.
All ground-level service access points allow single-person daily maintenance without climbing work.
Interested in used KOMATSU PC300-8 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
