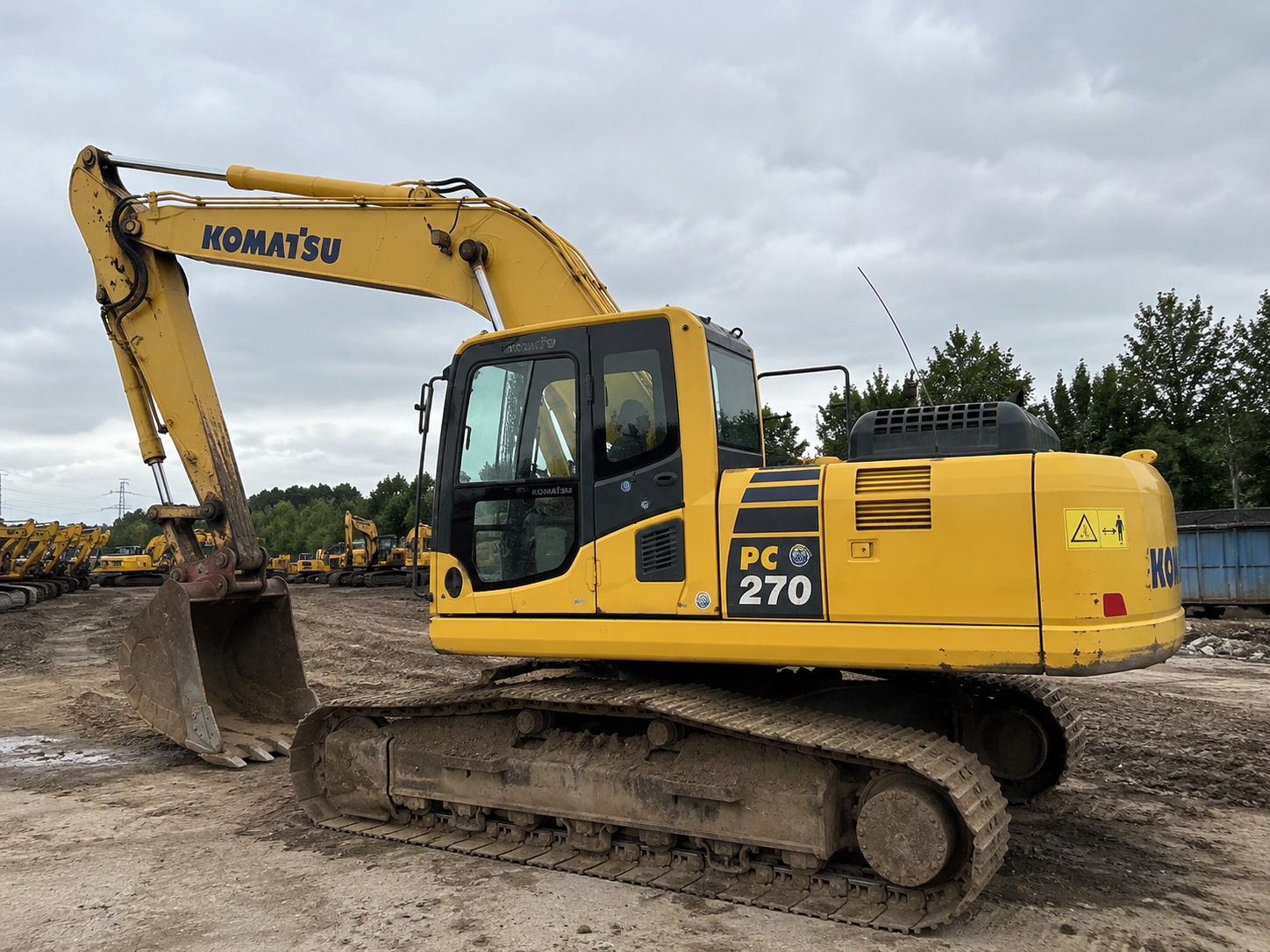

KOMATSU PC270-8
Specifications & Parameters
| Engine Model | SAA6D107E-1 |
| Rated Power(kW) | 149 |
| Engine Revolutions(rpm) | 2050 |
| Maximum Torque(N·m) | 735 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-14 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage3A |
| Track width(mm) | 800 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 132 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.4 |
| Bucket Digging Force(kN) | 249 |
| Boom Length(mm) | 5850 |
| Stick Length(mm) | 3045 |
| Maximum Excavation Radius(mm) | 10190 |
| Maximum Digging Height(mm) | 7060 |
| Maximum Digging Depth(mm) | 6460 |
| Specifications(mm) | 9860×3290×3180 |
| Operating Weight(kg&ton) | 28050 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
27‑ton class mid‑size crawler excavator, widely applied for heavy earth‑moving, quarry work, municipal construction, infrastructure projects and general site‑development tasks.
Powered by Komatsu SAA6D107E‑1 six‑cylinder turbo after‑cooled diesel engine, net power 140 kW at 2050 rpm, stable torque output. Tier‑3 mechanical configuration without complex urea after‑treatment, proven durable performance and cost‑effective spare‑parts for long‑time heavy‑duty jobsites.
Optional extended LC long‑wide track undercarriage enlarges ground contact area and lowers ground pressure, delivers good anti‑sinking capability on soft and muddy ground. Optimized counterweight guarantees reliable stability during deep digging, lifting and heavy‑load truck‑loading cycles.
Multiple front‑end working configurations available. Standard boom‑arm matched with high‑capacity general‑purpose bucket delivers high efficiency for earth and rock work. Optional short breaking arm and long deep‑dig arm adapt to quarry breaking, river dredging and large municipal projects.
HydrauMind closed‑center load‑sensing hydraulic system with dual main pumps, total flow up to 450 L/min. Multiple selectable working modes: power, economy and breaker mode. Supports long‑hour operation of medium‑heavy hydraulic breakers, smooth simultaneous compound movements and accurate fine control.
Reinforced boom & stick assembly with fully sealed dust‑proof pins, effectively resists deformation and oil leakage under continuous rock impact and heavy earth‑moving conditions, reduces overall failure rate.
Optional factory pre‑fitted bi‑directional auxiliary hydraulic circuit supports breakers, grapples, rippers and tilt buckets without extra on‑site pipe modification, suitable for multi‑purpose construction assignments.
Standard KOMTRAX telematics enables real‑time remote monitoring of machine location, working hours and fuel consumption, convenient for construction‑site fleet management.
Major daily service check‑points are arranged at ground‑level access. Single‑operator can finish routine inspection and maintenance without climbing upper structures, minimizing machine downtime.
