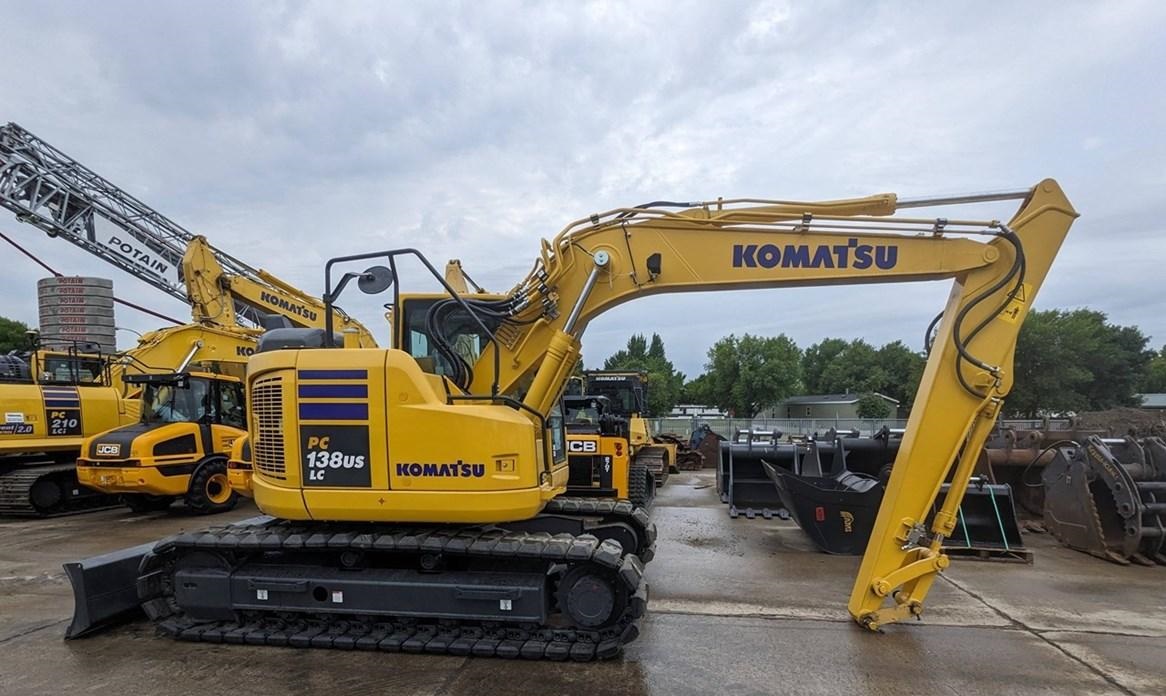

KOMATSU PC138USLC-11
Specifications & Parameters
| Engine Model | SAA4D95LE-7 |
| Rated Power(kW) | 72.6 |
| Engine Revolutions(rpm) | 2050 |
| Maximum Torque(N·m) | 342 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6-7.8 |
| Engine Displacement(L) | 3.26 |
| Emisson | Stage V |
| Track width(mm) | 450 |
| Fuel Tank(L) | 170 |
| Hydraulic Tank(L) | 78 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 0.72 |
| Bucket Digging Force(kN) | 93.2 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8300 |
| Maximum Digging Height(mm) | 5320 |
| Maximum Digging Depth(mm) | 5480 |
| Specifications(mm) | 7680×2490×2980 |
| Operating Weight(kg&ton) | 15800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
15‑ton class short‑tail‑swing crawler excavator, specially designed for narrow‑space operations, widely used in urban construction, road renovation, bridge projects, municipal works and tight‑site demolition jobs.
Powered by Komatsu SAA4D95LE‑7 four‑cylinder turbo after‑cooled diesel engine, net power 72.5 kW at 2050 rpm. Multiple working modes match different operating conditions, achieves remarkable fuel‑saving performance under long‑hour continuous operation.
US short‑tail‑swing design greatly reduces rear‑swing radius, avoids rear collision risks in narrow urban zones. Extended LC wide‑track undercarriage offers large ground‑contact area and low ground pressure, delivers reliable stability during digging, lifting and truck‑loading tasks.
Multiple front‑end configurations available. Standard boom‑arm combined with multi‑purpose bucket suits earth‑moving and trenching. Optional two‑piece boom, long‑reach front and dozer blade adapt to municipal renovation, slope trimming and river‑side construction work.
Proven HydrauMind CLSS closed‑center load‑sensing hydraulic system, dual variable‑displacement main pumps with arm quick‑return valve reduces hydraulic loss. Six selectable working modes including breaker and attachment modes. Fast cycle speed, smooth compound movements and highly precise fine control.
Reinforced boom & stick structure with heavy‑duty hinge pins, good anti‑deformation performance under frequent impact working conditions, lowers overall failure rate for municipal and demolition jobs.
Factory‑built bi‑directional auxiliary hydraulic circuit supports breakers, grapples and other attachments without extra on‑site pipe modification. Multiple attachment memory settings enable fast tool switching for multi‑purpose jobs.
ROPS‑certified spacious cab with viscous vibration‑damping mounts and sliding door, easy access even in cramped sites. Optional KomVision 360‑degree surround‑view camera system improves jobsite safety. Standard Komtrax telematics supports remote fleet monitoring of working hours, fuel consumption and machine location.
Key daily maintenance points are centrally arranged for convenient ground‑level access. Single‑operator can complete routine inspection without climbing upper structures, shorten service time and reduce jobsite downtime.
Interested in used KOMATSU PC138USLC-11 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
