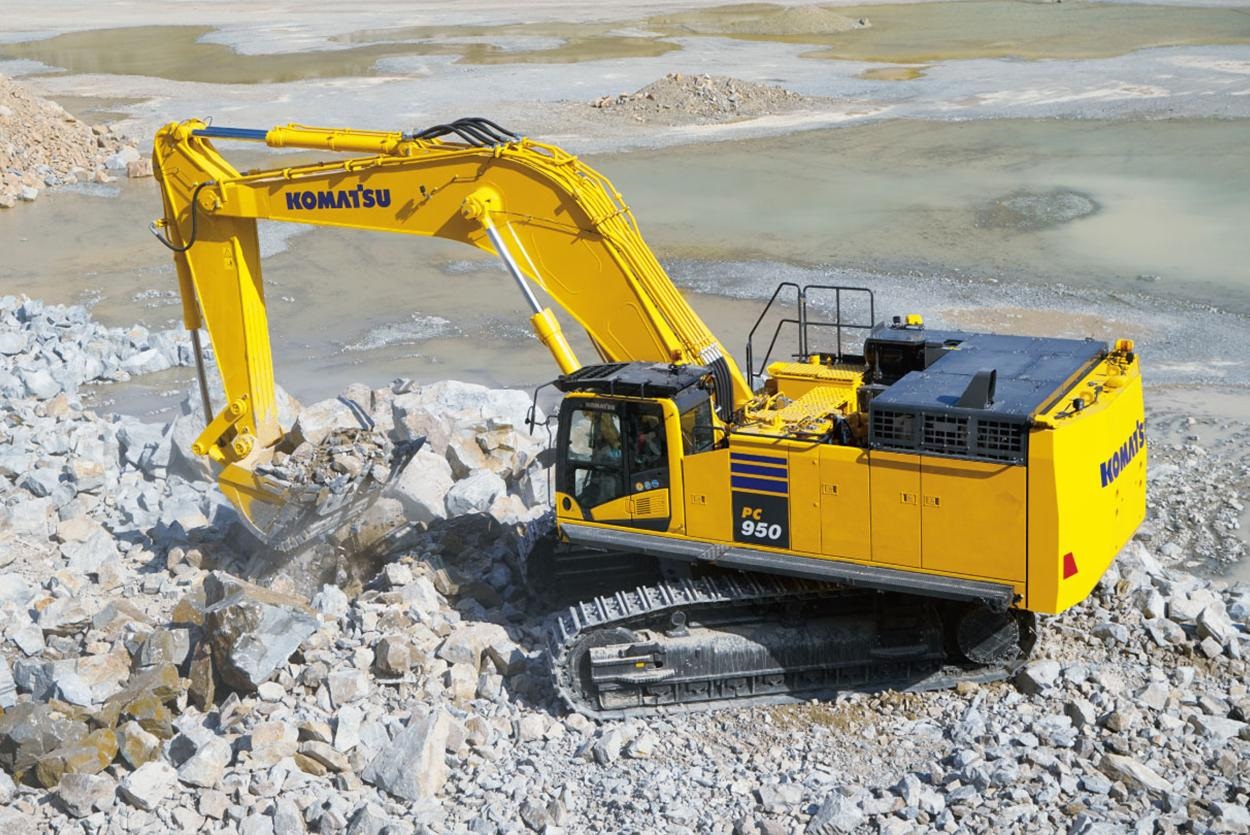

KOMATSU PC950LC-11M0
Specifications & Parameters
| Engine Model | SAA6D170E-6 |
| Rated Power(kW) | 327.3 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2650 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 30-40 |
| Engine Displacement(L) | 18.9 |
| Emisson | Stage IV |
| Track width(mm) | 1300 |
| Fuel Tank(L) | 1200 |
| Hydraulic Tank(L) | 320 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 8 |
| Bucket Digging Force(kN) | 502 |
| Boom Length(mm) | 7600 |
| Stick Length(mm) | 3800 |
| Maximum Excavation Radius(mm) | 12503 |
| Maximum Digging Height(mm) | 11824 |
| Maximum Digging Depth(mm) | 7222 |
| Specifications(mm) | 14250 × 4620 × 4580 |
| Operating Weight(kg&ton) | 102150 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
98‑ton class large‑scale mining crawler excavator, purpose‑built for open‑pit mines, large quarries, mass overburden stripping, heavy rock loading and large‑scale earth‑moving projects.
Equipped with Komatsu SAA6D140E‑7 six‑cylinder turbo after‑cooled diesel engine rated 405 kW, China‑IV emission standard. Multiple working modes deliver high productivity and excellent fuel efficiency, stable output under high‑altitude and high‑temperature heavy‑load mining conditions.
LC heavy‑duty reinforced mining undercarriage with thickened track rollers, heavy load‑resistant track links and robust 19.8 t counterweight. Large ground‑contact area lowers ground pressure, provides outstanding anti‑tipping stability for heavy rock digging and truck‑loading cycles, extends undercarriage service life under harsh mine conditions.
Standard 7.1 m boom + 2.9 m mining arm matched with 6.5‑8.0 m³ heavy‑duty rock bucket delivers high‑volume loading efficiency for hard‑rock mines. Optional short breaking arm and long‑reach front fit quarry rock breaking, dam construction and large‑volume soil relocation assignments.
Electronically controlled closed‑center load‑sensing hydraulic system with high‑pressure main pumps, independent swing circuit and selectable boom‑swing priority modes. Max operating pressure reaches 37.3 MPa, supports full‑day continuous heavy‑rock operation and compatible with large‑size heavy hydraulic breakers, achieving smooth compound movements and precise fine control.
Extra‑thick high‑strength mining steel boom & stick assembly with reinforced full‑penetration welds and oversized heavy‑duty pins & bushings. Fully sealed dust‑proof hinge structure effectively resists heavy‑impact abrasion from massive rock blocks, reduces oil leakage risk and lowers unplanned downtime in severe mining jobsites.
Factory pre‑installed multi‑circuit bi‑directional auxiliary hydraulic lines support heavy breakers, grapples and rippers without extra field pipe modification. Multi‑attachment capability adapts to diversified mining tasks including overburden stripping and mass material loading.
ROPS‑FOPS certified large‑SpaceCab cab with shockless boom control function reduces machine vibration and material spillage. Standard Komtrax mining telematics enables real‑time remote monitoring of working hours, fuel consumption, fault codes and machine location, convenient for large mine fleet management.
Key daily maintenance points are arranged at ground‑level access. Operators can complete fluid replacement and filter service without climbing upper structures, saving maintenance time and improving jobsite service efficiency.
Interested in used KOMATSU PC950LC-11M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
