KOMATSU PC650LC-11M0
Specifications & Parameters
| Engine Model | SAA6D140E-7 |
| Rated Power(kW) | 62160 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 23-30 |
| Engine Displacement(L) | 15.24 |
| Emisson | Stage IV |
| Track width(mm) | 1100 |
| Fuel Tank(L) | 900 |
| Hydraulic Tank(L) | 240 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 4 |
| Bucket Digging Force(kN) | 317 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3500 |
| Maximum Excavation Radius(mm) | 11550 |
| Maximum Digging Height(mm) | 11150 |
| Maximum Digging Depth(mm) | 7060 |
| Specifications(mm) | 12635×4250×4270 |
| Operating Weight(kg&ton) | 62160 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
62‑ton class heavy‑duty large crawler excavator, purpose‑built for quarry mining, open‑pit overburden stripping, hard‑rock loading, large‑scale quarry blasting material handling and heavy earth‑moving projects.
Powered by Komatsu SAA6D140E‑7 six‑cylinder turbo after‑cooled diesel engine, rated power 327.3 kW, China‑IV emission standard. Multiple working modes balance high production output and fuel economy, delivers stable power output under high‑altitude and high‑temperature heavy‑load mining conditions.
LC heavy‑duty reinforced mining undercarriage equipped with thickened track rollers, heavy‑load resistant track links and robust counterweight. Large ground‑contact area reduces ground pressure, provides reliable anti‑tipping stability for hard‑rock digging and truck‑loading cycles, extends service life under harsh quarry and mine operating environments.
Standard mining boom‑arm matched with 3.5‑4.0 m³ heavy‑duty rock bucket achieves high‑efficiency loading for blasted hard rock. Optional short breaking arm and long‑reach front assembly adapt to quarry rock breaking, dam construction and large‑volume earth relocation assignments.
Electronically controlled closed‑center load‑sensing hydraulic system fitted with dual swing motors, boom‑swing priority selectable modes and one‑touch power boost function. Max working pressure reaches 34.3 MPa, supports full‑day continuous heavy‑rock operation and compatible with large‑size heavy hydraulic breakers, ensures smooth compound movements and accurate fine control performance.
Extra‑thick high‑strength mining steel boom & stick assembly with full‑penetration reinforced welds and oversized heavy‑duty pins & bushings. Fully sealed dust‑proof hinge structure withstands severe impact and abrasion from blasted rock blocks, lowers oil‑leak risks and reduces unplanned downtime in heavy‑duty jobsites.
Factory pre‑installed multi‑circuit bi‑directional auxiliary hydraulic lines support heavy breakers, grapples and rippers without extra on‑site pipe modification. Multi‑attachment compatibility meets diversified heavy‑duty tasks including overburden stripping and bulk material loading.
ROPS‑FOPS certified spacious SpaceCab cab with viscous vibration‑damping mounts, multi‑language color LCD monitor and safety lever detection system. Standard Komtrax telematics enables real‑time remote monitoring of working hours, fuel consumption, fault codes and machine location for efficient large‑mine fleet management.
Major daily‑service inspection points adopt ground‑level side layout. Operators can complete fluid replacement and filter maintenance without climbing upper structures, saves maintenance time and improves jobsite service efficiency.
Interested in used KOMATSU PC650LC-11M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

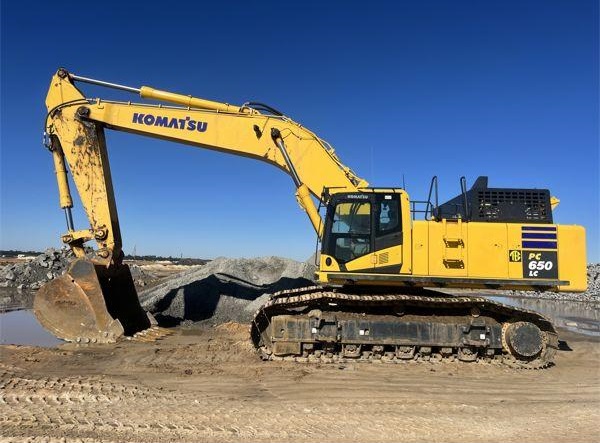

Photos
