Used Komatsu PC240-11M0
Parameters
| Engine Model | SAA6D107E-3 |
| Rated Power(kW) | 141.2 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 780 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-14.5 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage IV |
| Track width(mm) | 800 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 155 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 1.4 |
| Bucket Digging Force(kN) | 172 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 10180 |
| Maximum Digging Height(mm) | 10000 |
| Maximum Digging Depth(mm) | 6920 |
| Specifications(mm) | 10180×3290×3160 |
| Operating Weight(kg&ton) | 25400 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Equipped with Komatsu SAA6D107 six-cylinder China IV engine, 141.2kW rated power & 780N·m peak low-speed torque, power output increased by 15% vs PC225 series, maintaining full power under high temperature & high altitude open-pit mining conditions. Stable aftertreatment system cuts long-term rental maintenance cost.
24.8~25.4-ton extended 10-roller wide LC undercarriage with 800mm heavy-duty mining tracks balances ground pressure to avoid sinking on muddy riverbank ground. Heat-treated heavy-duty track components extend service life by 20% in mines.
Standard 5.9m boom + 2.95m arm matched with 1.4m³ bucket delivers larger loading capacity and lifting power than 23-ton models. Optional short arm for rock breaking & long arm for deep dredging covers all earthmoving, quarry and dredging jobs.
High-flow regenerative load-sensing hydraulic system with auto dig boost & heavy lift mode provides powerful breakout & swing performance for hard rock breaking and mass loading, cutting fuel consumption by 10%.
Reinforced heavy mining boom & stick with fully annealed strengthened welds resist impact and distortion, minimizing machine downtime during long-term rock stripping and demolition work.
Factory bi-directional high-flow auxiliary hydraulics support heavy breakers, grapples and quick couplers without extra pipe refitting for multi-purpose earthmoving, rock breaking and lifting operations.
Komtrax remote telematics system enables real-time monitoring of fuel consumption, working hours and fault alerts via mobile devices for efficient fleet operation management.
All ground-level service access points eliminate climbing work for fluid & filter replacement, shortening maintenance downtime by 40%.

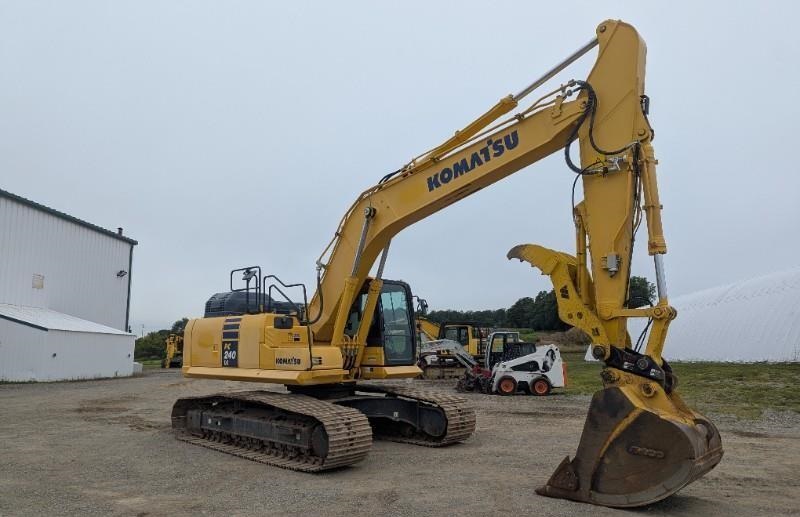

Photos
