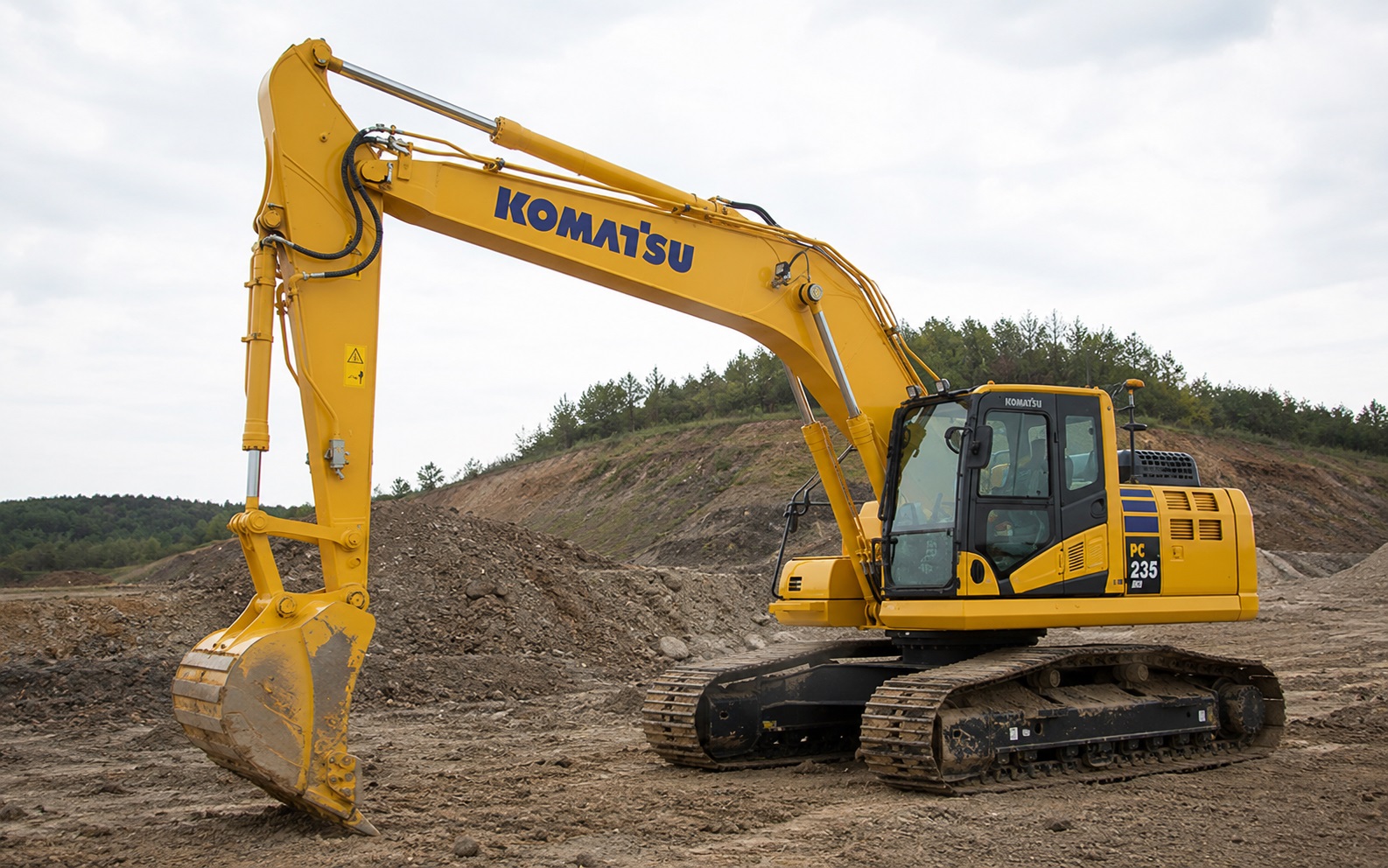

Komatsu PC235HD-11M0
Specifications & Parameters
| Engine Model | SAA6D107E-3 |
| Rated Power(kW) | 123.2 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 710 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-14.2 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage IV |
| Track width(mm) | 800 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 155 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 1.3 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 2400 |
| Maximum Excavation Radius(mm) | 9925 |
| Maximum Digging Height(mm) | 10050 |
| Maximum Digging Depth(mm) | 6010 |
| Specifications(mm) | 9705×2980×3045 |
| Operating Weight(kg&ton) | 23500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
23.5‑ton heavy‑duty reinforced crawler excavator, HD heavy‑duty variant optimized for rock excavation, tunnel construction, quarry breaking, heavy‑loading and harsh municipal infrastructure projects.
Equipped with original Komatsu SAA6D107E‑3 six‑cylinder turbo after‑cooled diesel engine, rated power 123.2 kW, China‑IV emission standard. No urea required, adopting KDPF particulate capture technology. Multiple selectable working modes together with auto‑idle‑stop and silicone‑oil clutch fan cut overall fuel consumption by about 7%, delivers stable power output in dusty high‑load jobsites.
Upgraded heavy‑duty undercarriage fitted with full‑size track‑roller guards, thickened track links and reinforced frame structure. Optimized ground‑pressure distribution enhances stability during heavy‑load rock‑breaking cycles, extends undercarriage service life under abrasive quarry and tunnel working conditions.
Standard heavy‑duty boom‑arm assembly matched with 1.2‑1.3 m³ rock bucket delivers powerful breakout force for blasted rock digging and truck‑loading. Optional short breaking arm and long‑reach front adapt to tunnel rock breaking, foundation trenching and large‑volume earth‑moving assignments.
Advanced CLSS closed‑center load‑sensing hydraulic system with enlarged high‑flow main pump and one‑touch power‑boost function. Max pump flow reaches 490 L/min, shortens working cycle time, supports long‑hour continuous running of medium‑large hydraulic breakers, ensures smooth compound movements and high‑precision fine‑control performance.
Fully‑reinforced heavy‑duty boom & stick structure with strengthened full‑penetration welds and oversized thick pins & bushings. Heavy‑impact resistant design withstands frequent rock shock loads effectively, lowers oil‑leak risks and reduces unplanned downtime for heavy‑duty quarry‑tunnel operation scenarios.
Factory‑pre‑installed bi‑directional high‑flow auxiliary hydraulic circuit dedicated for rock hammers, compatible with hydraulic breakers, grapples and quick couplers without extra on‑site pipe refitting. Enables fast multi‑attachment switching for diversified heavy‑construction tasks.
ROPS‑FOPS certified spacious operator cab with viscous damping mounts, multi‑language color LCD monitor, USB port and automatic air‑conditioning. Six selectable working‑mode settings adapt to various‑load demands. Komtrax telematics supports real‑time remote monitoring of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Key daily‑maintenance inspection points adopt ground‑level side‑access layout. Operators finish fluid replacement and filter maintenance without climbing upper structures, cuts routine‑maintenance time and improves jobsite working efficiency.
Interested in used Komatsu PC235HD-11M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
