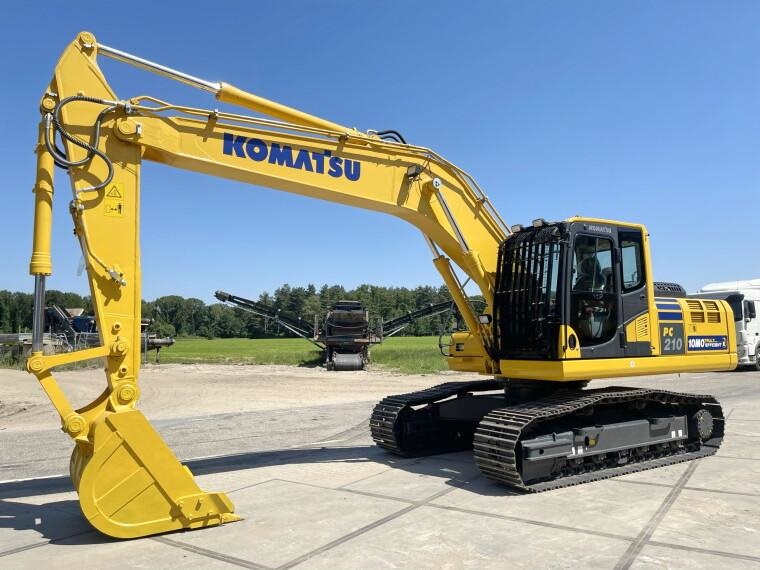

Komatsu PC210-11M0
Specifications & Parameters
| Engine Model | SAA6D107E-3 |
| Rated Power(kW) | 123.2 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 710 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-13.5 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage IV |
| Track width(mm) | 790 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 143 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5500 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9875 |
| Maximum Digging Height(mm) | 10000 |
| Maximum Digging Depth(mm) | 6620 |
| Specifications(mm) | 9705 × 3180 × 3045 |
| Operating Weight(kg&ton) | 22800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
22.6‑ton class popular mid‑size crawler excavator, widely used for civil engineering, residential‑commercial building construction, foundation excavation, site grading, material stockpiling and general earth‑moving jobs.
Equipped with original Komatsu SAA6D107E‑3 six‑cylinder turbo after‑cooled diesel engine, rated power 123.2 kW, China‑IV emission standard. Multiple selectable working modes and auto‑idle‑stop function cut fuel consumption by around 7%, delivers reliable power output under high‑intensity dusty construction‑site conditions.
Standard heavy‑duty undercarriage with 8 track rollers per side, thickened track links and wear‑resistant track shoes. Balanced ground‑pressure performance prevents sinking on soft muddy ground, ensures stable performance during digging and truck‑loading cycles and extends undercarriage service‑life in abrasive environments.
Standard boom‑arm assembly matched with 1.0‑1.2 m³ general‑purpose bucket provides strong breakout force for hard‑soil excavation and blasted rock handling. Optional short breaking arm and long‑reach front fit rock‑breaking, deep trenching and river‑bank excavation operations.
Advanced CLSS closed‑center load‑sensing hydraulic system with high‑flow main pump, max pump flow reaches 490 L/min. Six working‑mode selections and one‑touch power‑boost function shorten cycle time, supports continuous work with medium‑size hydraulic breakers, achieves smooth compound movements and accurate fine‑control performance.
Thickened boom & stick assembly with full‑penetration reinforced welds and enlarged heavy‑duty pins & bushings. High‑strength structural design resists rock impact and abrasion, reduces oil‑leak risks and lowers unplanned downtime for long‑term construction‑site work.
Factory‑pre‑installed bi‑directional auxiliary hydraulic lines support hydraulic breakers, grapples and quick couplers without extra on‑site pipe modification. Multi‑attachment compatibility meets diverse tasks including earth‑moving, demolition and rock‑breaking projects.
ROPS‑FOPS certified spacious operator cab with viscous vibration‑damping mounts, multi‑language color LCD monitor, rear‑view camera and USB port. Komtrax telematics enables real‑time remote monitoring of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Major daily‑maintenance inspection points adopt ground‑level side‑access layout. Operators complete fluid replacement and filter servicing without climbing upper structures, saves maintenance time and improves overall jobsite efficiency.
Interested in used Komatsu PC210-11M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
