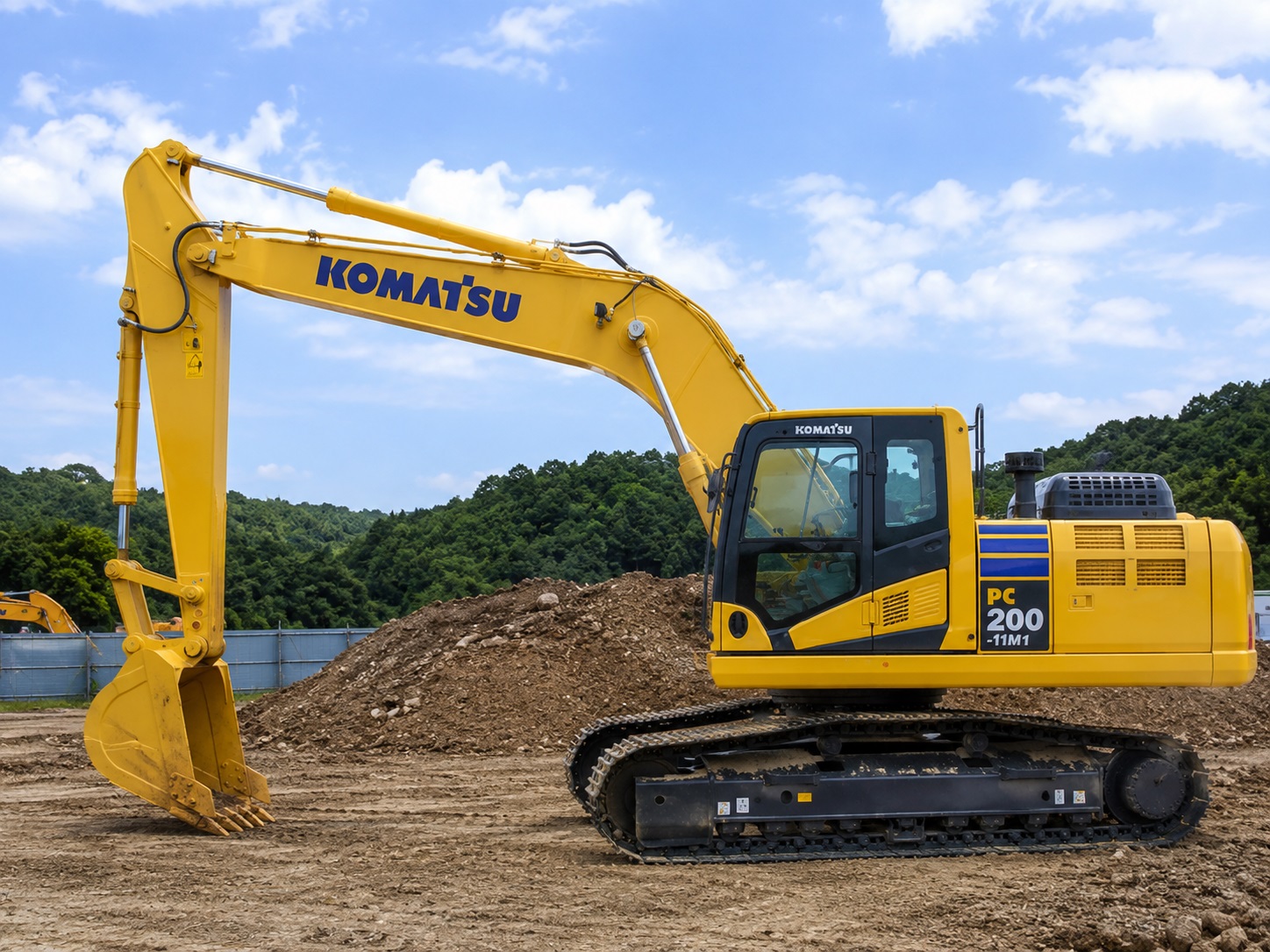

Komatsu PC200-11M1
Specifications & Parameters
| Engine Model | Komatsu DLA045 |
| Rated Power(kW) | 108 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 630 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9.5-13 |
| Engine Displacement(L) | 6.69 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 143 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 1.06 |
| Bucket Digging Force(kN) | 148 |
| Boom Length(mm) | 6100 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 9970 |
| Maximum Digging Height(mm) | 6490 |
| Maximum Digging Depth(mm) | 6720 |
| Specifications(mm) | 9460×3180×3030 |
| Operating Weight(kg&ton) | 20100 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
20.1‑ton popular mid‑size crawler excavator, widely used for municipal construction, residential‑commercial building projects, foundation excavation, site grading, stockpile handling and general earth‑moving works.
Equipped with original Cummins DLA045 four‑cylinder turbo diesel engine, rated power 108 kW, China‑IV emission standard. No urea required with advanced particulate aftertreatment system. Multiple selectable working modes and auto‑idle‑stop deliver reliable power output and outstanding fuel economy for long‑shift dusty construction‑site operations.
Standard heavy‑duty undercarriage with 8 track rollers per side, thickened track links and wear‑resistant track shoes. Balanced ground‑pressure performance prevents sinking on soft muddy ground, guarantees stable digging and truck‑loading cycles and extends undercarriage service‑life under abrasive working environments.
Standard boom‑arm assembly matched with 0.94‑1.06 m³ general‑purpose bucket provides solid breakout force for hard‑soil excavation and blasted rock material handling. Optional short breaking arm and long‑reach front adapt to rock‑breaking, deep trenching and river‑bank excavation assignments.
Advanced CLSS closed‑center load‑sensing hydraulic system, max pump flow reaches 490 L/min. Multiple working‑mode selections and one‑touch power‑boost function shorten work cycle time, supports continuous running of medium‑size hydraulic breakers, achieves smooth compound movements and accurate fine‑control performance.
Thickened boom & stick assembly with full‑penetration reinforced welds and enlarged heavy‑duty pins & bushings. Robust structural design resists rock impact and abrasion, reduces oil‑leak risks and minimizes unplanned downtime for long‑term construction‑site jobs.
Factory‑pre‑installed bi‑directional auxiliary hydraulic lines support hydraulic breakers, grapples and quick couplers without extra on‑site pipe modification. Multi‑attachment compatibility meets diversified tasks including earth‑moving, demolition and rock‑breaking projects.
ROPS‑FOPS certified spacious operator cab with viscous vibration‑damping mounts, lightweight control levers, multi‑language color LCD monitor, rear‑view camera and USB port. Komtrax telematics enables real‑time remote monitoring of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Major daily‑maintenance inspection points adopt ground‑level side‑access layout. Operators complete fluid replacement and filter servicing without climbing upper structures, saves maintenance time and improves overall jobsite efficiency.
Interested in used Komatsu PC200-11M1 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
