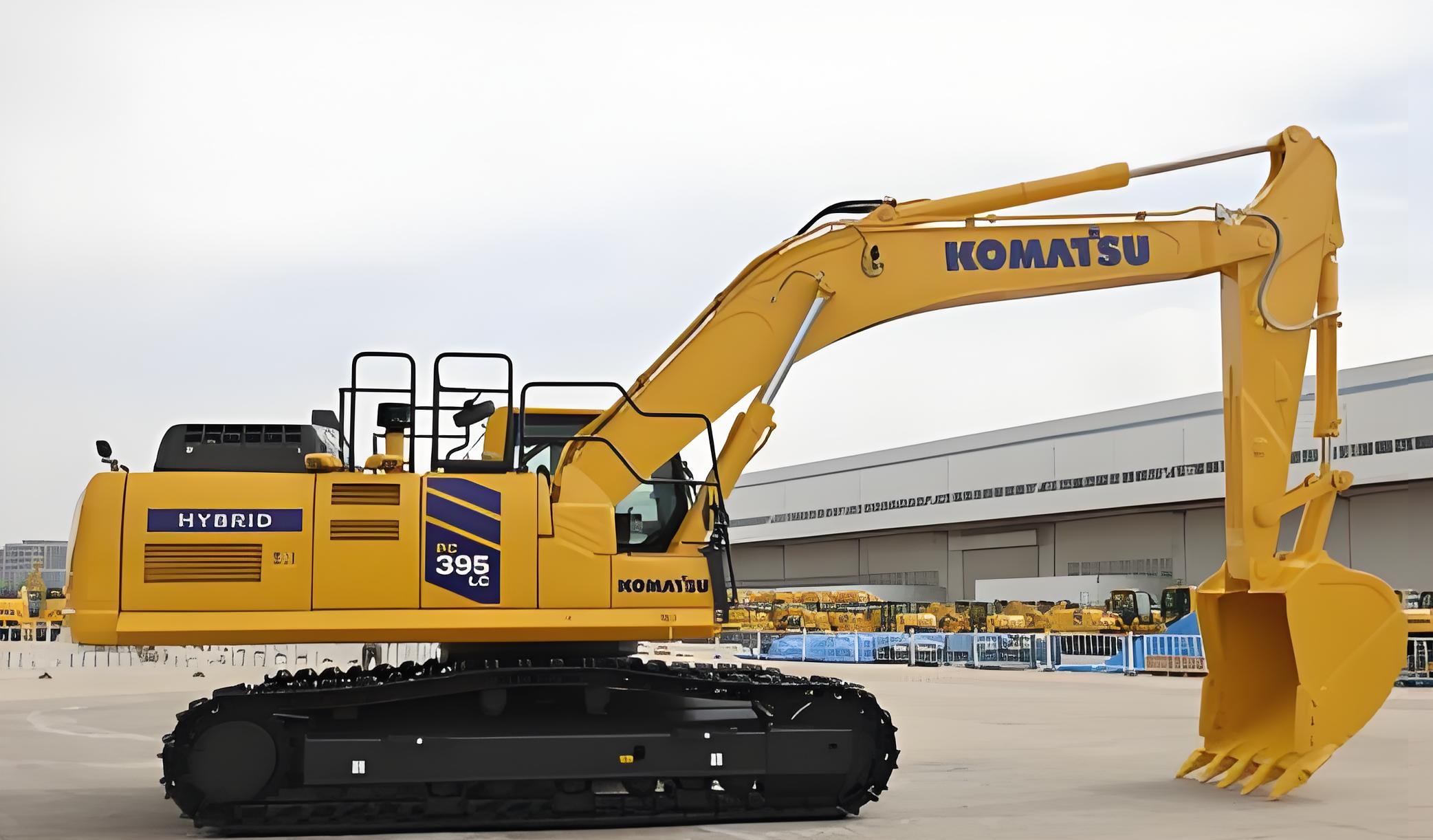

Komatsu PC395LC-11M0
Specifications & Parameters
| Engine Model | SAA6D114E-6 |
| Rated Power(kW) | 202.3 |
| Engine Revolutions(rpm) | 1950 |
| Maximum Torque(N·m) | 1140 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 14-19 |
| Engine Displacement(L) | 8.85 |
| Emisson | Stage IV |
| Track width(mm) | 800 |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 172 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 2.1 |
| Bucket Digging Force(kN) | 246 |
| Boom Length(mm) | 6100 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11250 |
| Maximum Digging Height(mm) | 7550 |
| Maximum Digging Depth(mm) | 6190 |
| Specifications(mm) | 11180 × 3190 × 3145 |
| Operating Weight(kg&ton) | 36600 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
36.6‑ton large‑size LC crawler hybrid excavator, specially built for open‑pit quarry, mine overburden stripping, hard‑rock loading, high‑altitude mining and large‑scale heavy‑duty infrastructure projects.
Equipped with original Komatsu SAA6D114E‑6 six‑cylinder turbo after‑cooled diesel engine, rated power 202.3 kW, China‑IV emission standard. Komatsu exclusive hybrid swing energy recovery system delivers combined total power up to 235 kW, improves operating efficiency while cutting fuel consumption remarkably, maintains stable power output under high‑altitude and low‑temperature mine conditions.
Reinforced heavy‑duty LC extended wide undercarriage fitted with double‑cam track rollers and thickened chamfered track shoes. Optimized ground‑pressure distribution improves stability under heavy‑load mining cycles, extends undercarriage service‑life under highly abrasive quarry working environments.
Standard heavy‑duty boom‑arm assembly matched with 1.9‑2.3 m³ rock bucket provides powerful breakout force for blasted rock excavation and high‑volume truck‑loading. Two boom working modes including smooth mode and heavy‑power mode, optional short breaking arm adapts to heavy rock‑breaking assignments.
Advanced CLSS load‑sensing hydraulic system with upgraded main pump, multiple selectable working‑modes and one‑touch power‑boost function. Short working cycle time, supports long‑hour continuous operation of large‑size hydraulic breakers, ensures smooth compound movements and high‑precision fine‑control performance for heavy mining cycles.
Fully‑reinforced heavy‑mining boom & stick with full‑annealed strengthened welds and oversized thick pins & bushings. Reinforced revolving platform structure resists heavy rock impact and structural deformation, minimizes unplanned downtime during non‑stop mine shift operations.
Factory‑pre‑installed bi‑directional high‑flow auxiliary hydraulic lines dedicated for heavy rock breakers, compatible with large hydraulic breakers, grapples and quick couplers without extra on‑site pipe refitting, multi‑purpose for mining, earth‑moving and rock‑breaking heavy‑duty tasks.
ROPS‑FOPS certified spacious operator cab with viscous damping mounts, multi‑language color LCD monitor, all‑around surround‑view camera system and automatic air‑conditioning. Komtrax telematics enables real‑time remote monitoring of working hours, fuel consumption and fault codes for efficient large‑mine fleet‑management.
Ground‑centralized layout for daily maintenance check‑points, detachable radiator dust‑proof net. Operators complete fluid replacement and filter servicing without climbing high positions, greatly reduces routine‑maintenance time for mining‑site operations.
Interested in used Komatsu PC395LC-11M0 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
