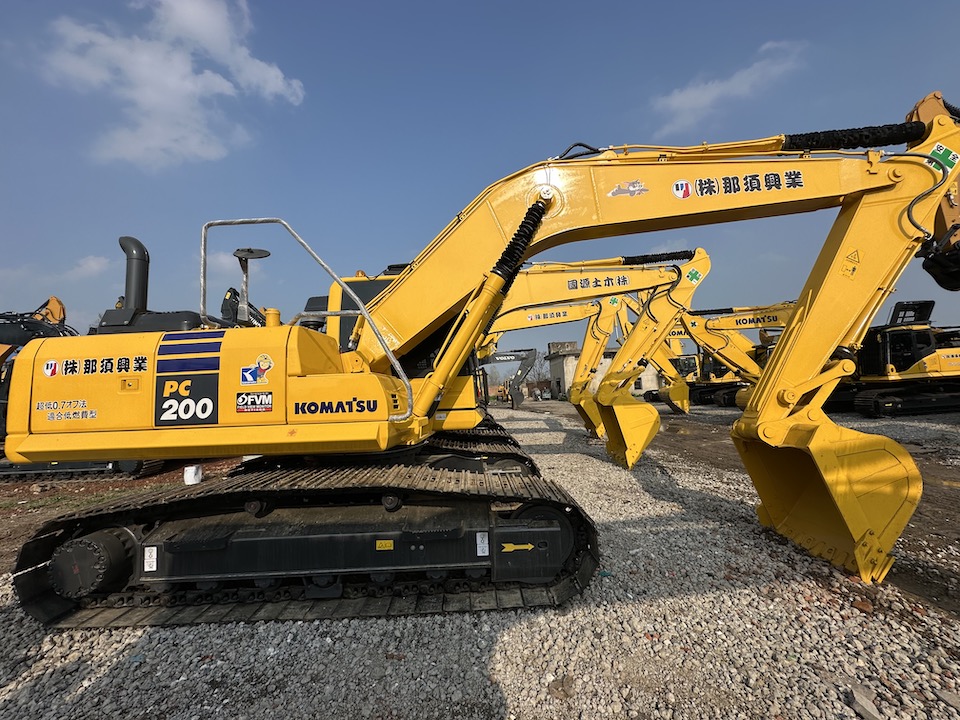

Komatsu PC200
Specifications & Parameters
| Engine Model | SAA6D107E-1 |
| Rated Power(kW) | 180 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 800 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 7.5-9.0 |
| Engine Displacement(L) | 6.69 |
| Emisson | China Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 143 |
| Travel Speed(km/h) | 5.5/4.1/3.0 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2925 |
| Maximum Excavation Radius(mm) | 9380 |
| Maximum Digging Height(mm) | 9800 |
| Maximum Digging Depth(mm) | 6095 |
| Specifications(mm) | 9495×2800×3190 |
| Operating Weight(kg&ton) | 20150 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2014 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Efficient and energy-saving
-Outstanding fuel economy: PC200LC-8M0 saves about 12.9% fuel compared to the previous generation PC200-8; PC200-8M0 has achieved a 13% increase in fuel efficiency.
-Equipped with SAA6D107E series engines that meet the National IV emission standards, it adopts water-cooled, 4-stroke, direct injection, turbocharged, and post cooling technologies, balancing power and environmental protection.
2. Powerful homework performance
-High digging force: The maximum digging force of the bucket is 149 kN (approximately 15200 kgf), and the digging force of the boom is 108 kN, suitable for complex working conditions such as hard soil and rock.
-Large bucket capacity adaptation: The bucket capacity is 0.8-1.20 m ³, which can be flexibly configured according to the task; The extended arm version can achieve a maximum excavation depth of 14610 mm.
-High walking speed: 5.5 km/h for high speed, 4.1 km/h for medium speed, and 3.0 km/h for low speed, improving transition efficiency.
3. Reliability and Durability
-Strengthening structural design: adopting an X-shaped center frame and an inverted U-shaped box section track frame to enhance the rigidity of the entire machine; Key components of the track are reinforced to adapt to harsh environments such as mines.
-Hydraulic system optimization: Using CLSS (Closed Center Load Sensing) hydraulic system, the maximum flow rate of the main pump is 439 L/min, with fast response, low energy consumption, and high stability.
-Long maintenance cycle: The interval between hydraulic oil and filter element replacement is extended, reducing downtime.
4. Intelligence and operational comfort
-Standard Komtrax remote monitoring system, supporting real-time tracking of equipment status, fault diagnosis, and location management.
-TFT LCD large screen monitor, providing multi-mode operation interface, energy-saving prompts, and maintenance reminders.
-High rigidity cab, in compliance with Japanese, American, and European safety standards, with a wide field of view, low noise, and reduced driver fatigue.
5. Convenient maintenance
-Centralized maintenance points, with a reasonable layout of key components such as filter elements and oil circuits, making it easy for daily inspection and replacement.
-Standard configuration includes air pre filter, fuel breathing valve, dust cover, etc., to enhance system reliability.
Interested in used Komatsu PC200 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
