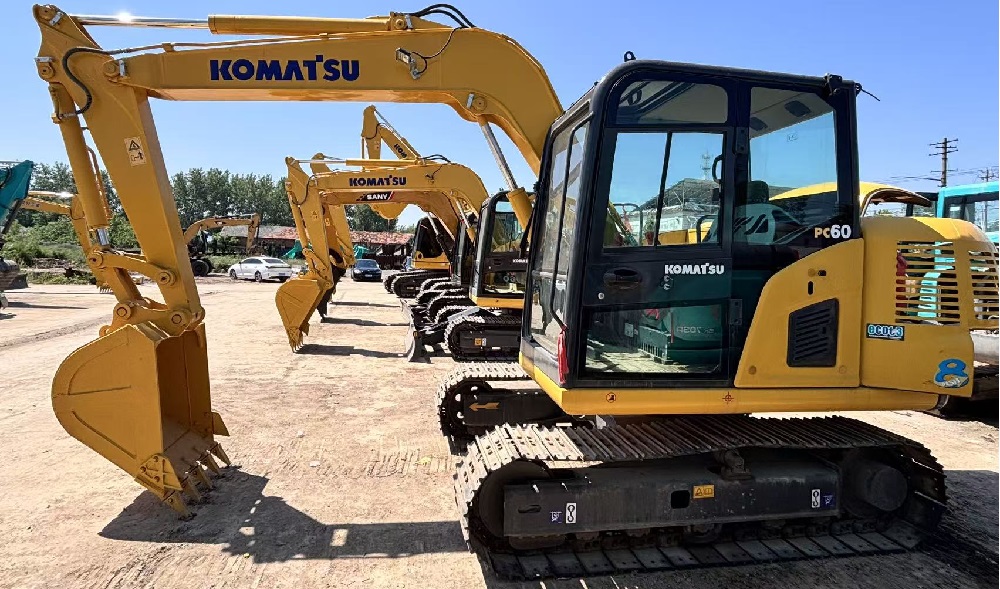

KOMATSU PC60-8
Specifications & Parameters
| Engine Model | KOMATSU SAA4D95LE-5 |
| Rated Power(kW) | 40.7 |
| Engine Revolutions(rpm) | 1950 |
| Maximum Torque(N·m) | 882 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 5-7 |
| Engine Displacement(L) | 3.26 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 400 |
| Fuel Tank(L) | 130 |
| Hydraulic Tank(L) | 95 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.37 |
| Bucket Digging Force(kN) | 54.8 |
| Boom Length(mm) | 6000 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 6190 |
| Maximum Digging Height(mm) | 7030 |
| Maximum Digging Depth(mm) | 3900 |
| Specifications(mm) | 10060×2990×3080 |
| Operating Weight(kg&ton) | 6180 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1、 Efficient and energy-saving
Efficient and fuel-efficient engine: equipped with Komatsu SAA4D95LE-5 turbocharged diesel engine, rated power of 40.7 kW (55 PS), displacement of 3.26 L, electronically controlled, can automatically adjust the speed according to working conditions, combined with automatic deceleration function and economic operation indicator, significantly reducing fuel consumption
CLSS hydraulic system: Closed Center Load Sensing System, which achieves precise flow distribution, improves operational efficiency, and reduces energy loss
2、 Strong performance
Outstanding digging power:
Maximum digging force of bucket: 5590 kgf (approximately 54.8 kN)
Maximum digging force of the boom: 4060 kgf (approximately 39.8 kN)
Wide range of assignments:
Maximum excavation depth: 3900 mm
Maximum excavation height: 7030mm
Maximum unloading height: 4925 mm
Maximum excavation radius: 6190mm
3、 High reliability and durability
Reinforced structural design: fully open protective cover, thickened working device section (boom 115 × 840 × 65 mm, boom 100 × 865 × 60 mm) to enhance deformation resistance
Long maintenance cycle: extended oil and filter replacement cycle, significantly improved durability of key components such as travel motors and turntables
Ground pressure reduction: 28.4 kPa, suitable for working in soft or complex terrain
4、 Humanized operation and comfort
Spacious cab: equipped with TFT LCD monitor and Komtrax equipment management system, supporting remote monitoring, fault diagnosis, and maintenance reminders
Low noise environment: The driver's cabin has good sound insulation, and the operating comfort is close to that of a sedan
Safety configuration: Standard equipment includes an accumulator, all metal casing, and underbody cover to enhance safety
5、 Market performance and user feedback
Active second-hand market: Due to its sturdy structure and high resale value, it is widely circulated in the second-hand market
Interested in used KOMATSU PC60-8 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
