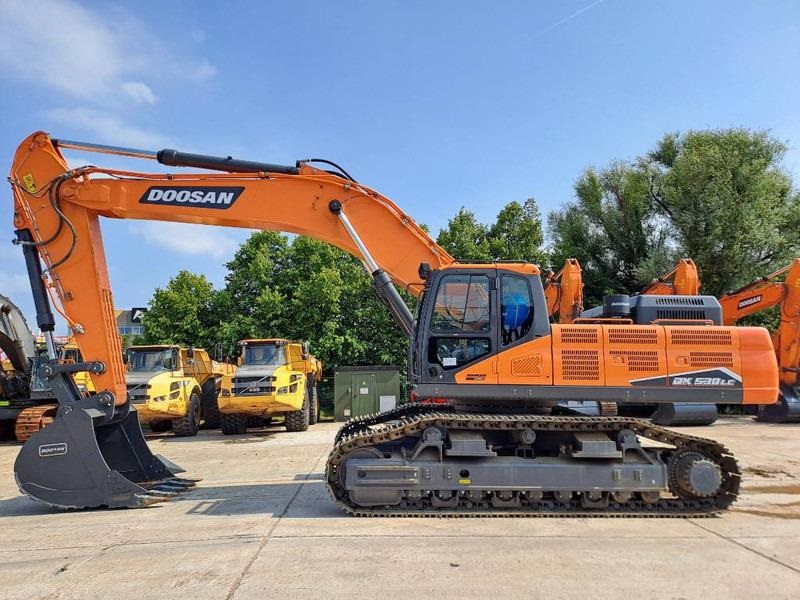

Used DOOSAN DX530LC-7
Parameters
| Engine Model | Scania DC13 |
| Rated Power(kW) | 289 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1863 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 14.8-17.5 |
| Engine Displacement(L) | 12.7 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 690 |
| Hydraulic Tank(L) | 490 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 2.72 |
| Bucket Digging Force(kN) | 310 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3350 |
| Maximum Excavation Radius(mm) | 10970 |
| Maximum Digging Height(mm) | 7905 |
| Maximum Digging Depth(mm) | 7790 |
| Specifications(mm) | 11530×3577×4185 |
| Operating Weight(kg&ton) | 52900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Two powertrain options: DX530LC-7M (Scania DC13 Tier3, EGR+DOC+DPF, no AdBlue for China/Russia/Southeast Asia) & DX530LC-7K (Scania DC13V Stage V, DPF+SCR with AdBlue for EU & North America). Massive low-speed torque, tolerant to low-quality mine diesel, stable high-altitude performance up to 4500m.
780 L/min high-flow SPC+VBO cross-sensing hydraulic system with triple energy regeneration, 14% lower fuel consumption than DX530LC-5, faster cycle times and superior combined movement response for rock breaking & high-volume ore loading.
Reinforced LC long heavy-duty undercarriage with 9 lower rollers & 3 upper rollers, wide 2740mm track gauge and low ground pressure, outstanding stability on muddy open pit mines and steep slopes under full heavy load.
Heavy-duty thickened HD 7100mm boom & 3350mm arm with internal stiffeners and cast wear-resistant pins, excellent impact resistance and long service life under harsh rock stripping mining conditions.
Shock-isolated ROPS/FOPS safety cabin with full climate control, heated air suspension seat, 10-inch TFT smart monitor and full LED working lamps for all-night mining operation.
Ground-level centralized filter layout for easy daily maintenance, low long-term service cost and high residual value in global mining equipment market.
Multiple attachments optional: heavy rock breaker arm, long-reach dredge arm, and various extra-large-capacity mine buckets for all heavy-duty mining & mass earthmoving applications.
