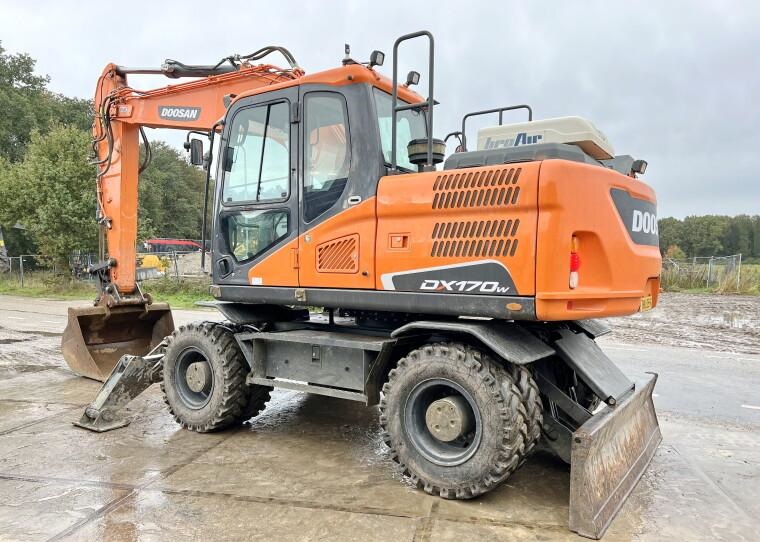

DOOSAN DX170W-5
Specifications & Parameters
| Engine Model | DOOSAN DL06P |
| Rated Power(kW) | 113.3 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 647 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6.5-8.2 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 110 |
| Travel Speed(km/h) | 37 |
| Bucket Capacity(m³) | 0.59 |
| Bucket Digging Force(kN) | 116 |
| Boom Length(mm) | 4700 |
| Stick Length(mm) | 2300 |
| Maximum Excavation Radius(mm) | 9090 |
| Maximum Digging Height(mm) | 6860 |
| Maximum Digging Depth(mm) | 5315 |
| Specifications(mm) | 8219×2500×3098 |
| Operating Weight(kg&ton) | 16800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The Doosan DX170W‑5 is a cost‑effective 17‑ton class wheeled excavator, widely used for municipal reconstruction, road maintenance, utility pipeline projects, landscaping and material‑loading operations. It combines flexible road mobility, solid digging performance and low‑cost maintenance for frequent transfers between different job sites.
Equipped with original Doosan DB58TIS 6‑cylinder mechanical turbo diesel engine, Tier2/Tier3 emission standard, NO AdBlue required. Tolerant of low‑quality diesel fuel, low maintenance cost, reliable operation up to 4500 m altitude, well‑suited for emerging overseas markets.
Dual variable‑displacement axial‑piston pump hydraulic system with e‑EPOS electronic power optimizing system, total system flow 370 L/min. Load‑sensing control delivers smooth synchronized compound movements, good coordination for digging, lifting and slewing cycles. Matched with standard 0.65 m³ digging bucket to ensure high working efficiency for urban and road‑construction tasks.
Heavy‑duty reinforced wheeled chassis with maximum travel speed up to 36 km/h, reducing flat‑bed truck transport expenses for inter‑site relocation. Hydraulic oscillating front axle ensures stable driving on uneven paved roads. Optional 4 independent hydraulic outriggers greatly improve stability under heavy‑load lifting conditions.
Thickened heavy‑duty mono boom & arm fitted with heat‑treated wear‑resistant pins, strong anti‑deformation performance under long‑term rock breaking and deep excavation. Optimized rear counterweight layout lowers center of gravity for safe heavy‑duty operation. Multiple arm‑length options available to adapt open yards and narrow confined urban work zones.
Large 280 L fuel tank supports long continuous working shifts without frequent refueling stops. All filter elements are arranged at ground level for convenient daily inspection, filter replacement and greasing without climbing onto the machine. Simple and robust electrical circuit keeps failure rates low and simplifies fault diagnosis, maintaining excellent residual value in the used wheel excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
