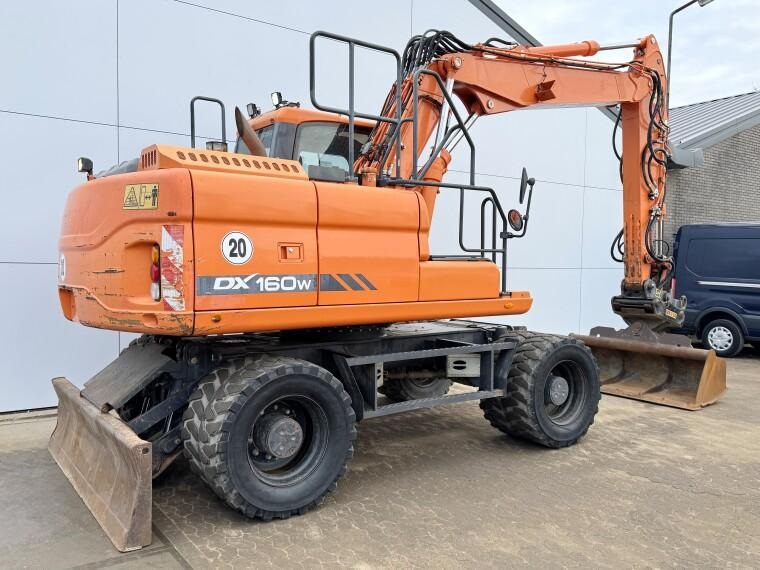

DOOSAN DX160W-3
Specifications & Parameters
| Engine Model | DOOSAN DL06KB |
| Rated Power(kW) | 102 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 588 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6.6-8.2 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier3 |
| Track width(mm) | / |
| Fuel Tank(L) | 280 |
| Hydraulic Tank(L) | 102 |
| Travel Speed(km/h) | 37.7 |
| Bucket Capacity(m³) | 0.48 |
| Bucket Digging Force(kN) | 105.7 |
| Boom Length(mm) | 4300 |
| Stick Length(mm) | 2100 |
| Maximum Excavation Radius(mm) | 7765 |
| Maximum Digging Height(mm) | 5860 |
| Maximum Digging Depth(mm) | 4620 |
| Specifications(mm) | 7470×2500×3090 |
| Operating Weight(kg&ton) | 15900 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The Doosan DX160W‑3 is a practical 16‑ton class wheeled excavator, widely applied for municipal renovation, highway maintenance, utility pipeline works, landscaping and material‑loading operations. It features flexible road mobility, reliable digging performance and low‑cost upkeep for frequent transfers between different job‑sites.
Equipped with original Doosan DB58TIS 6‑cylinder mechanical turbo diesel engine, Tier2/Tier3 emission standard, NO AdBlue required. Tolerant of low‑quality diesel fuel, low maintenance cost, stable reliable operation up to 4500 m altitude, well‑suited for emerging overseas markets.
Dual variable‑displacement axial‑piston pump hydraulic system with e‑EPOS electronic power optimizing system, total system flow 340 L/min. Load‑sensing control delivers smooth synchronized compound movements, good coordination for digging, lifting and slewing cycles. Matched with standard 0.60 m³ digging bucket to maintain high efficiency for urban and road‑construction assignments.
Heavy‑duty reinforced wheeled chassis with maximum travel speed reaching 36 km/h, cutting flat‑bed truck transport expenditure for inter‑site relocation. Hydraulic oscillating front axle ensures stable travel on uneven paved surfaces. Optional 4 independent hydraulic outriggers greatly enhance stability during heavy‑load lifting operations.
Thickened heavy‑duty mono boom & arm fitted with heat‑treated wear‑resistant pins, strong anti‑deformation performance under long‑term rock breaking and deep excavation conditions. Optimized rear counterweight layout lowers center of gravity for safe heavy‑duty operation. Multiple arm‑length options available to fit open yards and confined urban work zones.
Large 260 L fuel tank supports extended continuous working shifts without frequent refuel stops. All service filter elements located at ground height for convenient daily inspection, filter replacement and greasing without climbing the machine. Simple robust electrical circuit keeps failure rates low and simplifies fault diagnosis, preserving good residual value within the used wheel excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
