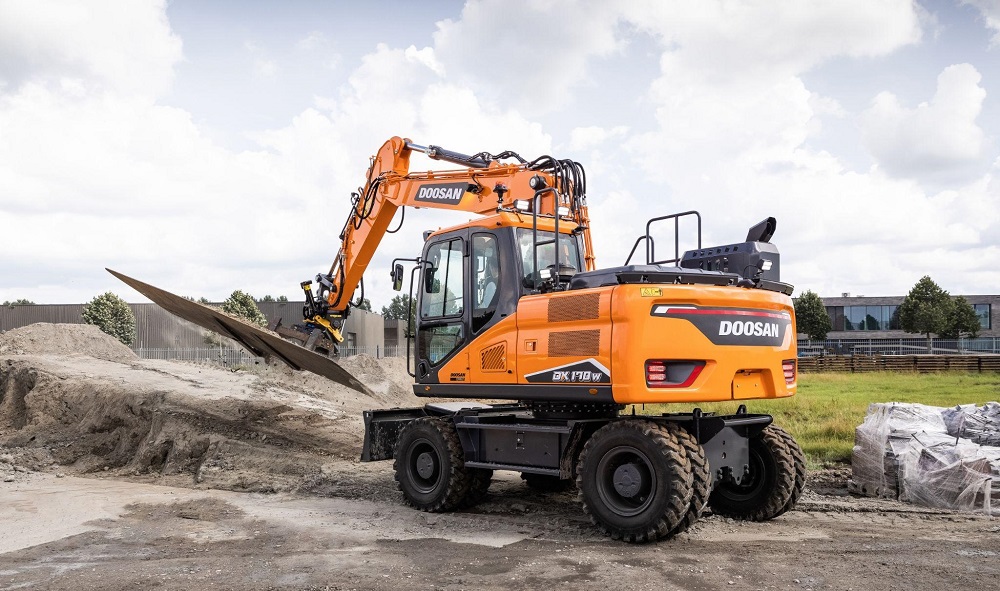

DOOSAN DX170W-7
Specifications & Parameters
| Engine Model | DEVELON DL06V |
| Rated Power(kW) | 113 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 647 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6-7.6 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 37 |
| Bucket Capacity(m³) | 0.66 |
| Bucket Digging Force(kN) | 116 |
| Boom Length(mm) | 4700 |
| Stick Length(mm) | 2300 |
| Maximum Excavation Radius(mm) | 9090 |
| Maximum Digging Height(mm) | 6860 |
| Maximum Digging Depth(mm) | 5315 |
| Specifications(mm) | 7760×2530×3280 |
| Operating Weight(kg&ton) | 17700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The Doosan DX170W‑7 is a compact‑efficient 17‑ton class wheeled excavator, well‑suited for municipal renovation, road maintenance, utility pipeline construction, landscaping and material‑loading tasks. It balances agile road mobility, reliable digging output and economical operating cost for urban and suburban job‑site operations.
Equipped with original Doosan DL06 6‑cylinder turbocharged common‑rail diesel engine, Tier2/Tier3 emission standard, no AdBlue required. Accepts low‑grade diesel fuel, low maintenance expenditure, stable performance operating up to 4500 m altitude, perfectly fit for emerging overseas markets.
Advanced dual variable‑displacement piston‑pump hydraulic system with e‑EPOS electronic power management, total system flow 370 L/min. Load‑sensing control delivers soft synchronized compound movements, excellent coordination for digging, lifting and slewing work cycles. Matched with standard 0.65 m³ bucket to maintain high efficiency on city streets and highway construction sites.
Reinforced heavy‑duty wheeled chassis with maximum travel speed up to 36 km/h, lowering flat‑bed truck transport cost for frequent inter‑site relocation. Hydraulic oscillating front axle guarantees steady travel on uneven paved roads. Optional 4 independent hydraulic outriggers significantly improve stability under heavy‑load lifting conditions.
Thickened heavy‑duty mono boom & arm equipped with heat‑treated wear‑resistant pins, strong anti‑deformation capability for long‑term rock breaking and deep excavation. Optimized rear counterweight layout reduces center of gravity for secure heavy‑duty operation. Multiple arm‑length options available to adapt open yards and narrow confined urban work zones.
Large 280 L fuel tank supports long continuous working shifts without frequent refueling stops. All filter components arranged at ground‑level position for easy daily inspection, filter replacement and greasing without climbing onto the machine. Simplified robust electrical circuit keeps failure rate low and speeds‑up fault troubleshooting, retaining favorable residual value within the used wheel excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
