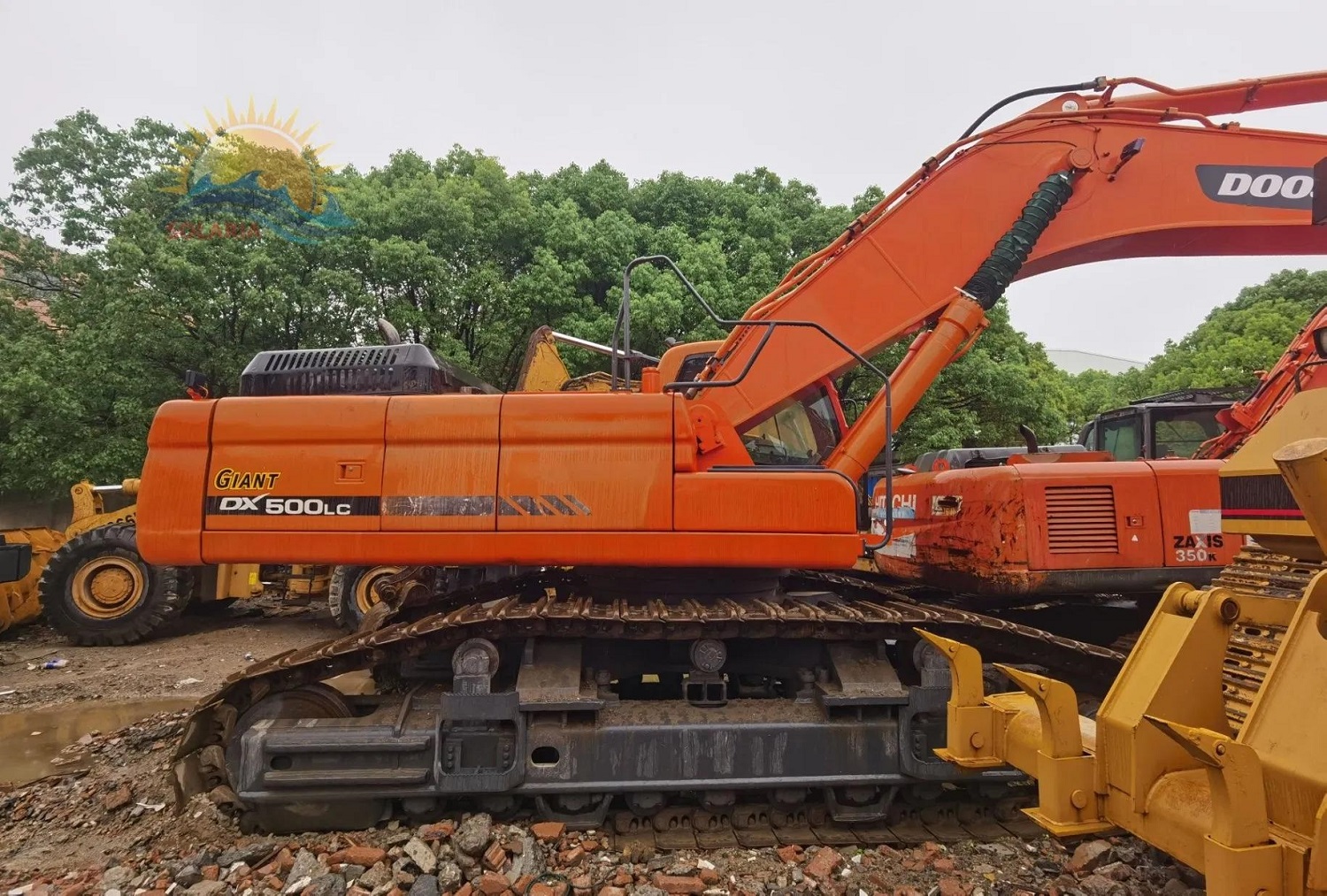

DOOSAN DX500LC-5
Specifications & Parameters
| Engine Model | DE12TIS |
| Rated Power(kW) | 238 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1363 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 23-31 |
| Engine Displacement(L) | 11.051 |
| Emisson | Tier 2 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 245 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 2.14 |
| Bucket Digging Force(kN) | 302 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3350 |
| Maximum Excavation Radius(mm) | 12120 |
| Maximum Digging Height(mm) | 11080 |
| Maximum Digging Depth(mm) | 7810 |
| Specifications(mm) | 12130×3340×3350 |
| Operating Weight(kg&ton) | 49200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
- Doosan DX500LC‑5 50‑ton large long‑track heavy‑duty excavator, classic mine‑proven platform, widely applied for quarry excavation, heavy rock digging, mass earth‑moving and large‑scale open‑pit auxiliary loading projects.
- Original Doosan DE12TIS six‑cylinder turbo diesel engine delivers 238 kW rated power, generates abundant low‑speed torque, good tolerance for poor‑quality fuel, stable output under high‑temperature and high‑altitude harsh working‑site conditions.
- Mature dual‑pump variable‑displacement hydraulic system matches main control valve precisely, outputs high system pressure, provides powerful breakout force and smooth simultaneous compound movements, performs steadily in high‑intensity cyclic rock‑shifting and bulk‑material loading assignments.
- Heavily‑reinforced front working attachments adopt thick high‑strength steel plates, cast‑steel structure at boom root, stress‑relieved welding on arm sections; standard 2.14 m³ rock‑duty bucket, optional factory breaker piping supports heavy rock‑breaking operations.
- Extended long‑track undercarriage enlarges contact surface with ground, reduces ground pressure, strengthened track links and idler assemblies improve wear‑resistance, ensures stable operation on rocky, gravel‑covered and heavy‑mud construction grounds.
- ROPS‑certified spacious operator cabin with suspended shock‑absorbing seat, intuitive multi‑function monitor and ergonomic pilot levers; grouped filter arrangement simplifies daily inspection and regular maintenance work.
- Time‑tested second‑hand heavy‑duty excavator of Korean origin, robust mechanical structure, complete global spare‑parts supply chain, ideal selection for large quarries, mine auxiliary operations and huge land‑development infrastructure projects.
