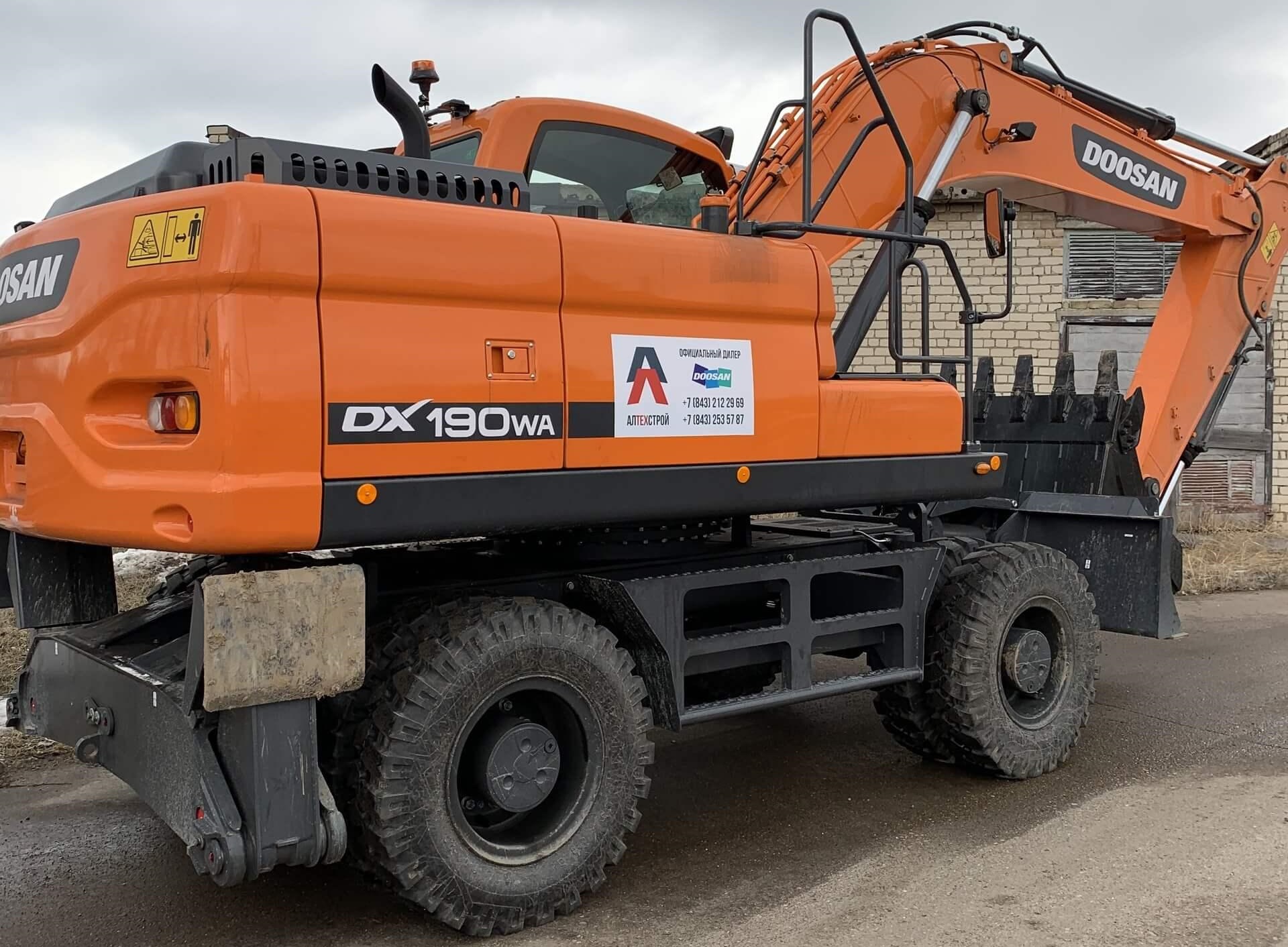

DEVELON DX190WA
Specifications & Parameters
| Engine Model | DOOSAN DB58TIS |
| Rated Power(kW) | 123 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 686 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6.9-8.7 |
| Engine Displacement(L) | 5.8 |
| Emisson | Tier3 |
| Track width(mm) | / |
| Fuel Tank(L) | 310 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 36 |
| Bucket Capacity(m³) | 0.81 |
| Bucket Digging Force(kN) | 138 |
| Boom Length(mm) | 5200 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 9350 |
| Maximum Digging Height(mm) | 6660 |
| Maximum Digging Depth(mm) | 5950 |
| Specifications(mm) | 8750×2530×3310 |
| Operating Weight(kg&ton) | 19600 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The DEVELON DX190WA is a versatile 19‑ton class wheeled excavator, widely used for municipal reconstruction, highway maintenance, utility projects, earth‑loading and material‑handling jobs. It delivers high driving mobility, powerful digging performance and low‑cost maintenance for frequent inter‑site transfers.
Equipped with original DEVELON DB58TIS 6‑cylinder mechanical turbo diesel engine, Tier2/Tier3 emission standard, NO AdBlue required. Tolerant of low‑quality diesel fuel, low maintenance cost, reliable operation up to 4500 m altitude, perfectly suited for emerging markets.
Dual variable‑displacement axial‑pump hydraulic system with e‑EPOS electronic power optimizing system, total flow 400 L/min. Load‑sensing control ensures smooth simultaneous compound movements, excellent coordination for digging, lifting and swing operations. Matched with standard 0.78 m³ bucket for high productivity on urban and road‑construction sites.
Reinforced heavy‑duty wheeled chassis with maximum travel speed up to 36 km/h, cutting flat‑bed transport expenses for site‑to‑site relocation. Hydraulic oscillating front axle guarantees stable driving on uneven paved roads. Optional 4 independent hydraulic outriggers significantly improve stability during heavy‑load lifting operations.
Heavy‑duty thickened mono boom & arm with heat‑treated wear‑resistant pins, excellent anti‑deformation performance under long‑time rock‑breaking and deep‑digging conditions. Optimized rear‑offset counterweight design lowers center of gravity for secure heavy‑duty work. Multiple arm lengths optional (2.2 m / 2.6 m / 3.1 m) to adapt open yards and narrow urban job‑sites.
Large 310 L fuel tank enables long continuous working cycles without frequent refueling. Centralized ground‑level service points simplify daily inspection, filter replacement and greasing without climbing onto the machine. Robust simple electric layout reduces failure rates and eases troubleshooting, retaining outstanding residual value on the used wheel‑excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
Interested in used DEVELON DX190WA excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
