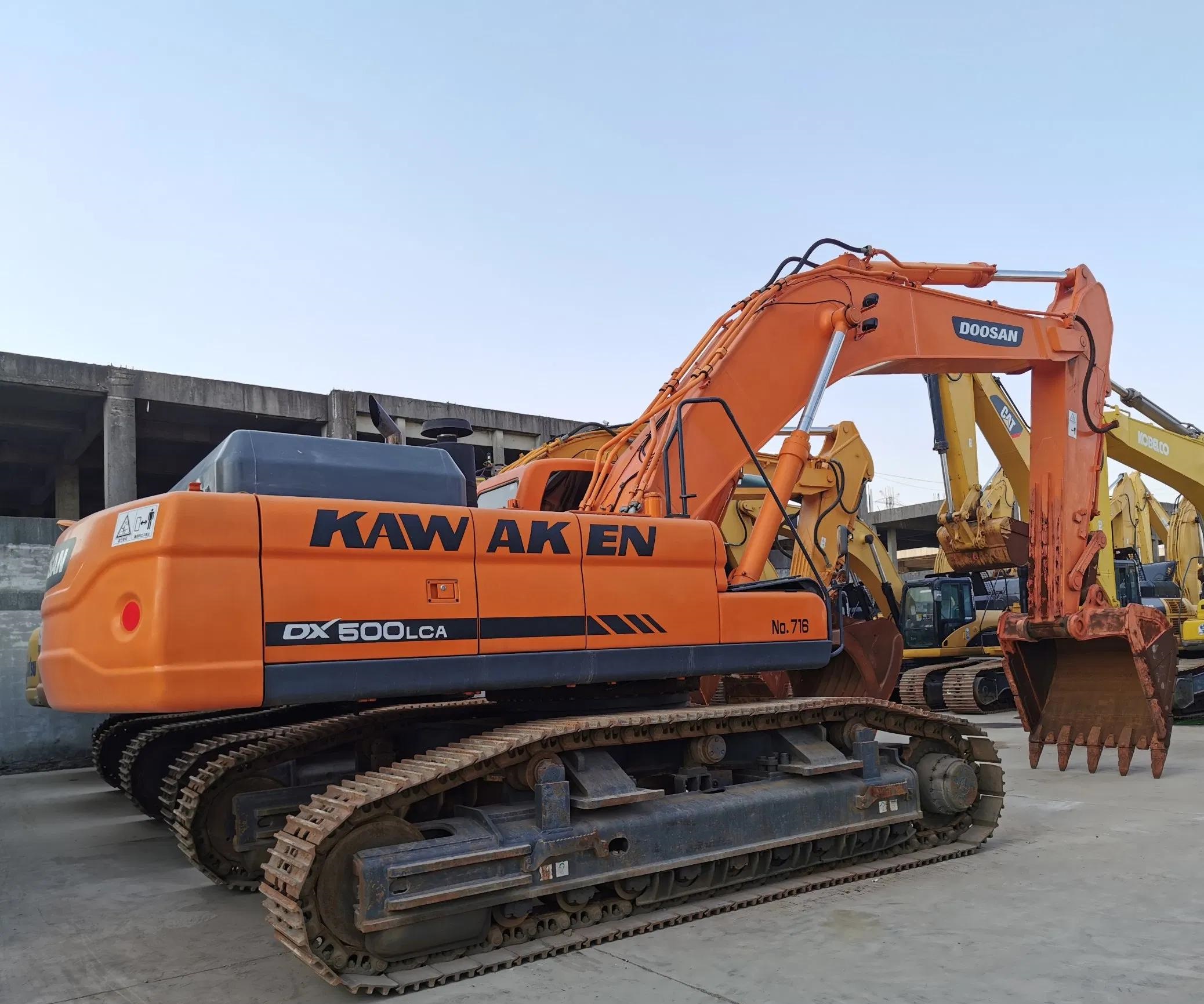

DOOSAN DX500LCA
Specifications & Parameters
| Engine Model | DE12TIS |
| Rated Power(kW) | 238 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1363 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 24-32 |
| Engine Displacement(L) | 11.051 |
| Emisson | Tier 2 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 582 |
| Hydraulic Tank(L) | 245 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 2.91 |
| Bucket Digging Force(kN) | 294 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3350 |
| Maximum Excavation Radius(mm) | 10750 |
| Maximum Digging Height(mm) | 9600 |
| Maximum Digging Depth(mm) | 6770 |
| Specifications(mm) | 11430×3340×3350 |
| Operating Weight(kg&ton) | 51100 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
- Doosan DX500LCA 49.5‑ton large heavy‑duty crawler excavator, Korean‑origin mining‑oriented unit, designed for quarry work, heavy rock excavation, mass earth‑stripping and large‑scale open‑pit auxiliary loading projects.
- Original Doosan six‑cylinder turbo diesel engine delivers 238 kW rated power, outputs abundant low‑speed torque, adapts to harsh high‑temperature and high‑altitude mine conditions and runs stably under full‑day continuous heavy‑load cycles.
- Mature dual variable‑displacement piston‑pump hydraulic system with precisely‑matched main control valve, provides high system pressure, powerful breakout force and smooth multi‑action simultaneous movements, excellent performance for high‑intensity rock digging and bulk‑material cyclic‑loading assignments.
- Reinforced boom, arm and thickened chassis frame, cast‑steel structure at boom root, hardened anti‑wear pin joints resist frequent impact loads from rock excavation. Standard 2.14‑2.91 m³ rock bucket, optional factory‑fitted breaker piping supports heavy‑duty rock‑breaking operations.
- Heavy‑duty long‑track undercarriage enlarges ground‑contact surface area, lowers ground pressure and improves whole‑machine stability; strengthened track links and idler assemblies deliver outstanding wear resistance for long‑term rocky‑site operation.
- ROPS‑certified spacious operator cabin with shock‑absorbing suspension seat, intuitive multi‑function color monitor and ergonomic pilot levers. Centralized service layout shortens daily inspection and routine‑maintenance time.
- Reliable second‑hand large excavator of proven mine‑site performance, complete global spare‑parts supply chain, ideal choice for big quarries, open‑pit mines and large land‑development infrastructure projects.
