DOOSAN DX140W-5
Specifications & Parameters
| Engine Model | DOOSAN DL06P |
| Rated Power(kW) | 102.2 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 588 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6.2-7.8 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 280 |
| Hydraulic Tank(L) | 102 |
| Travel Speed(km/h) | 37 |
| Bucket Capacity(m³) | 0.45 |
| Bucket Digging Force(kN) | 92.3 |
| Boom Length(mm) | 4300 |
| Stick Length(mm) | 2100 |
| Maximum Excavation Radius(mm) | 7790 |
| Maximum Digging Height(mm) | 5780 |
| Maximum Digging Depth(mm) | 4490 |
| Specifications(mm) | 7420×2500×3242 |
| Operating Weight(kg&ton) | 15514 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Original Doosan DL06 6-cylinder turbo common rail diesel engine, Tier4 Interim & Tier4 Final dual emission versions. DX140W-5M without AdBlue cuts daily maintenance cost, compatible with regular construction diesel and stable operation up to 4500m altitude; DX140W-5K complies with EU full-region emission regulation with worldwide spare parts support.
340 L/min high-flow e-EPOS regeneration hydraulic system delivers smooth simultaneous combined movements, matched with 0.45m³ standard bucket for outstanding efficiency on municipal trenching, road reconstruction and aggregate loading projects.
4-wheel drive wheeled chassis with max travel speed up to 37 km/h, no flatbed truck needed for short-distance site transfer to save transport expense. Hydraulic oscillating front axle ensures stable driving on uneven paved roads; optional front & rear hydraulic outriggers greatly improve lifting stability for pipe and heavy material handling.
Heavy-duty thickened HD mono boom & arm with heat-treated wear-resistant pins, excellent anti-deformation performance under long-term hard rock breaking and deep digging conditions. Wide 2500mm machine width provides solid stability under full heavy loads.
Large 280L fuel tank supports long continuous shift without frequent refueling. Two boom options (standard / long) adapt to open construction sites and deep foundation digging.
Ground-level centralized filter layout for convenient daily maintenance, low long-term service cost and high residual value in global medium wheeled excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and dual wide heavy-duty tires.
Interested in used DOOSAN DX140W-5 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

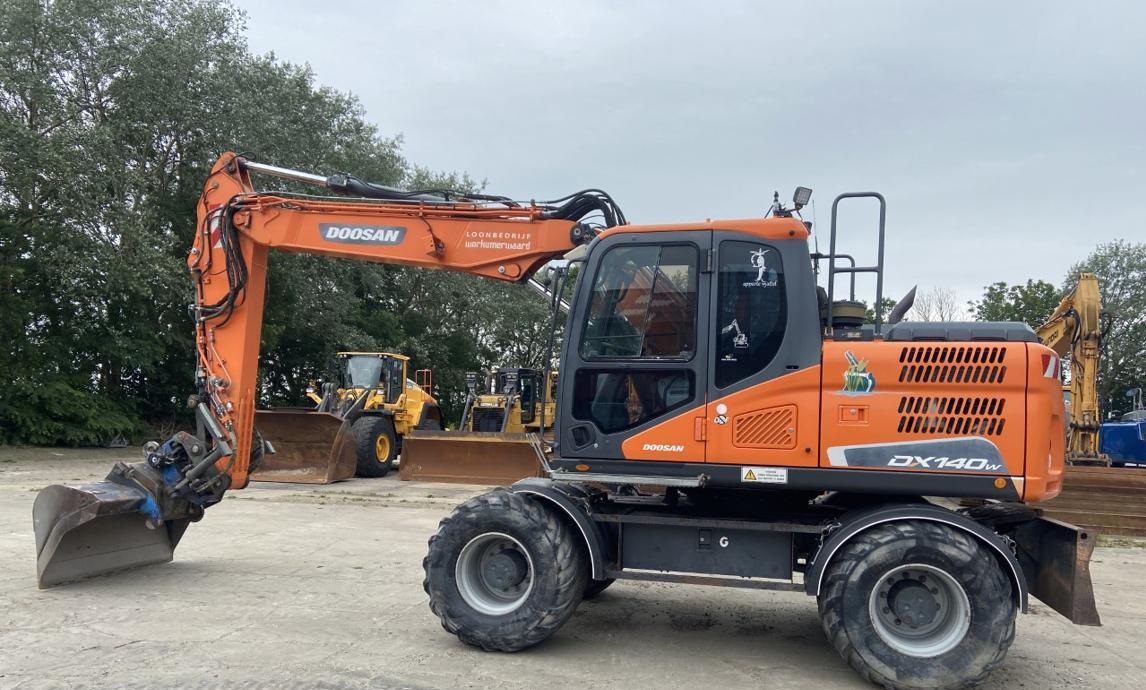

Photos
