DOOSAN DX210W-5
Specifications & Parameters
| Engine Model | DOOSAN DL06P |
| Rated Power(kW) | 140.9 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 804 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 7-8.8 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier4 |
| Track width(mm) | / |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 170 |
| Travel Speed(km/h) | 35 |
| Bucket Capacity(m³) | 0.86 |
| Bucket Digging Force(kN) | 148 |
| Boom Length(mm) | 5200 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 9730 |
| Maximum Digging Height(mm) | 6985 |
| Maximum Digging Depth(mm) | 5555 |
| Specifications(mm) | 9420×2530×3330 |
| Operating Weight(kg&ton) | 21400 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

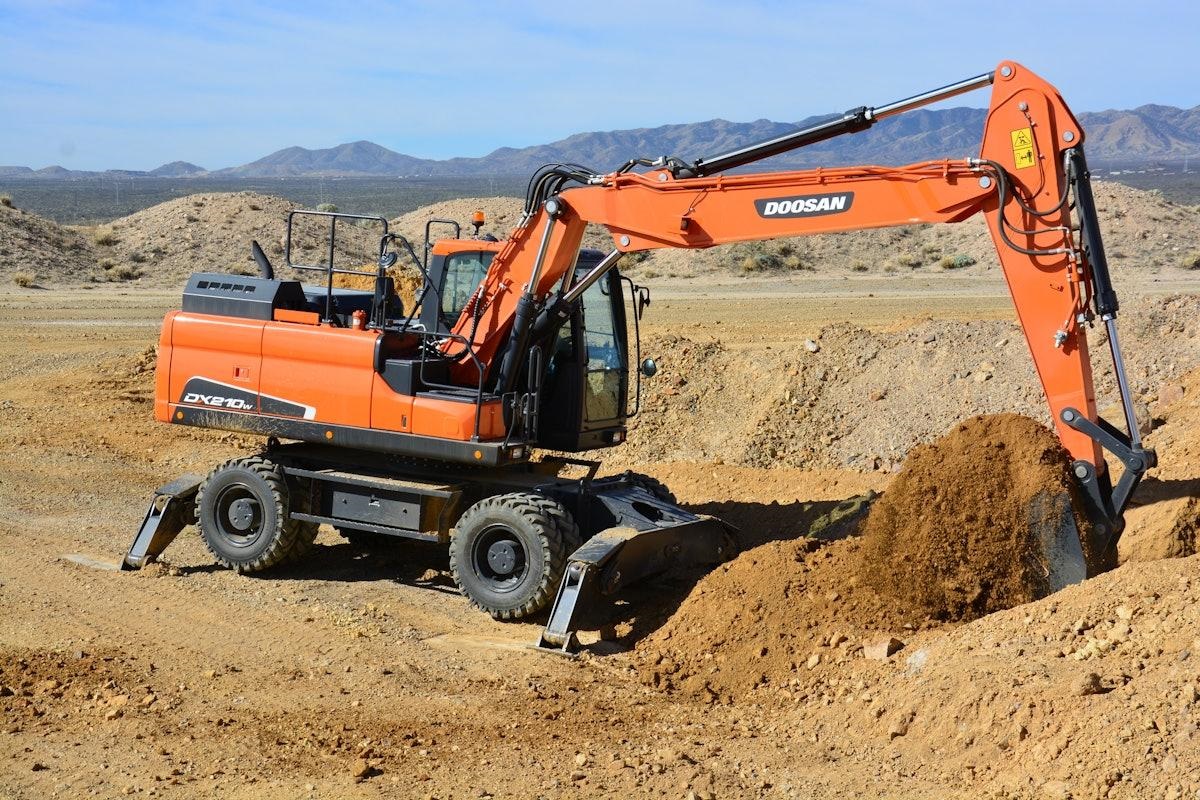

The Doosan DX210W‑5 is a reliable 21‑ton class wheeled excavator, perfectly suited for highway reconstruction, municipal engineering, road maintenance, material handling and loading operations. It combines fast driving mobility, solid digging performance and low‑cost maintenance for frequent inter‑site transfer jobs.
Equipped with original Doosan DB58TIS 6‑cylinder mechanical turbo diesel engine, Tier2/Tier3 emission standard, NO AdBlue required. Tolerant of low‑quality diesel fuel, low maintenance cost, reliable operation up to 4500m altitude, ideal for emerging markets.
464 L/min high‑flow load‑sensing regeneration hydraulic system with relief cut‑off energy saving technology. Smooth simultaneous compound movements, matched with large 0.86m³ standard bucket for high productivity on large municipal works, road reconstruction and aggregate handling.
Reinforced heavy‑duty wheeled chassis with maximum travel speed up to 36 km/h, saving flatbed transport cost for inter‑site transfer. Hydraulic oscillating front axle ensures stable running on uneven paved roads; optional 4 independent hydraulic outriggers greatly improve stability during heavy lifting.
Heavy‑duty thickened mono boom & arm with heat‑treated wear‑resistant pins, strong resistance to deformation under long‑term rock breaking and deep excavation. Wide 2530mm machine width lowers center of gravity for safe heavy‑load operation.
Large 350L fuel tank supports long continuous working shifts without frequent refueling. Two boom configurations (standard / short arm) available to adapt open yards and confined urban job sites.
All filter elements arranged at ground level for convenient daily service without climbing. Simple electrical system brings lower failure rate and easy troubleshooting, maintaining excellent residual value in used wheel excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
Interested in used DOOSAN DX210W-5 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
