DOOSAN DX160W-7
Specifications & Parameters
| Engine Model | DEVELON DL06V |
| Rated Power(kW) | 113.6 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 686 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5.8-7.3 |
| Engine Displacement(L) | 5.89 |
| Emisson | Tier3 |
| Track width(mm) | / |
| Fuel Tank(L) | 280 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 37 |
| Bucket Capacity(m³) | 0.59 |
| Bucket Digging Force(kN) | 113.6 |
| Boom Length(mm) | 4300 |
| Stick Length(mm) | 2100 |
| Maximum Excavation Radius(mm) | 7790 |
| Maximum Digging Height(mm) | 5780 |
| Maximum Digging Depth(mm) | 4490 |
| Specifications(mm) | 7420×2495×3240 |
| Operating Weight(kg&ton) | 17000 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

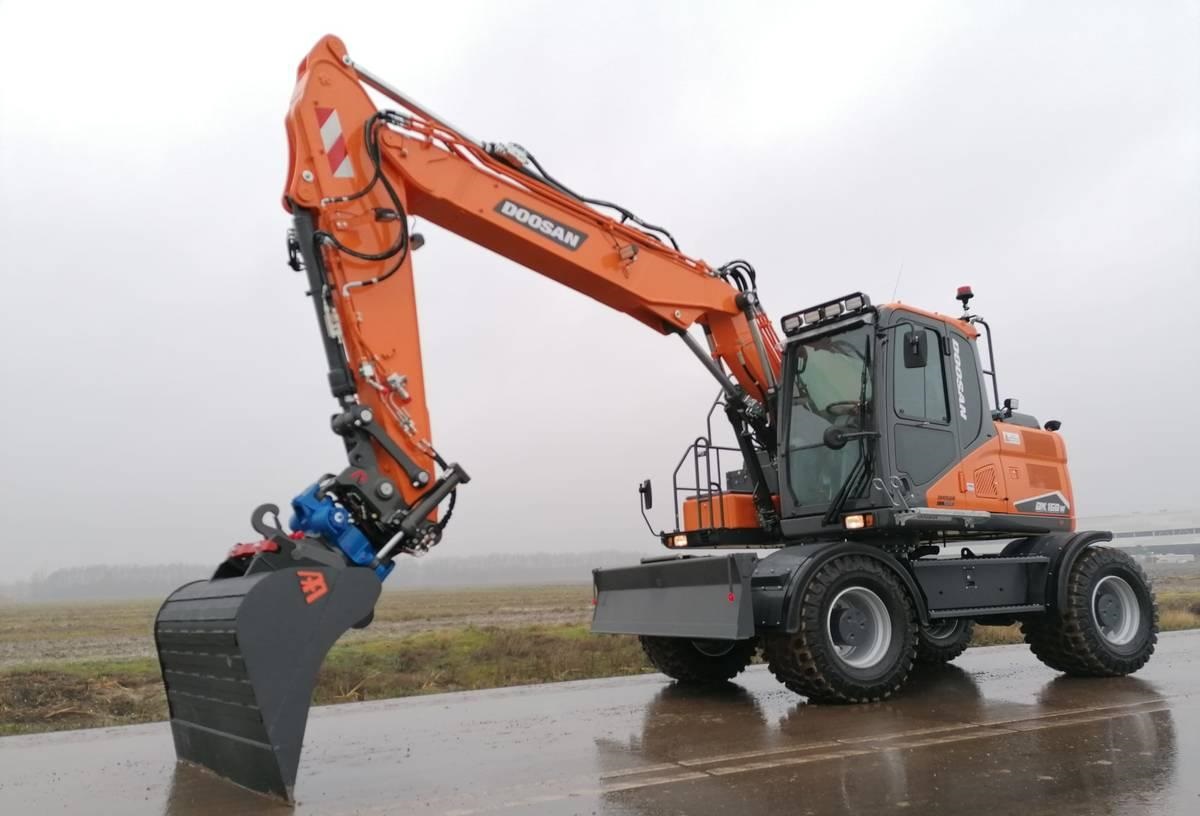

The Doosan DX160W‑7 is a practical 16‑ton class wheeled excavator, ideal for municipal engineering, road maintenance, utility pipeline construction, landscaping and material‑handling assignments. It combines flexible road mobility, reliable digging capacity and economical operating costs for urban and suburban construction‑site operations.
Equipped with original Doosan DL06 6‑cylinder turbocharged common‑rail diesel engine, Tier2/Tier3 emission standard, NO AdBlue required. Tolerant of low‑quality diesel fuel, low maintenance expenditure, stable performance working up to 4500 m altitude, perfectly suited for emerging overseas markets.
Advanced dual variable‑displacement piston‑pump hydraulic system with e‑EPOS electronic power management, total system flow 350 L/min. Load‑sensing control delivers smooth synchronized compound movements, excellent coordination for digging, lifting and slewing cycles. Matched with standard 0.60 m³ bucket for high working efficiency on city streets and highway construction sites.
Reinforced heavy‑duty wheeled chassis with maximum travel speed up to 36 km/h, cutting flat‑bed truck transport costs for frequent inter‑site relocation. Hydraulic oscillating front axle ensures stable travelling on uneven paved roads. Optional 4 independent hydraulic outriggers greatly improve stability under heavy‑load lifting conditions.
Thickened heavy‑duty mono boom & arm fitted with heat‑treated wear‑resistant pins, strong anti‑deformation capability for long‑term rock breaking and deep excavation. Optimized rear counterweight layout lowers center of gravity for secure heavy‑duty operation. Multiple arm‑length options available to adapt open yards and narrow confined urban work zones.
Large 270 L fuel tank supports long continuous working shifts without frequent refueling stops. All filter components arranged at ground‑level position for easy daily inspection, filter replacement and greasing without climbing onto the machine. Simplified robust electrical circuit keeps failure rate low and speeds‑up fault troubleshooting, retaining favorable residual value within the used wheel excavator market.
Multiple attachments optional: hydraulic quick coupler, heavy rock breaker, log grapple, wide floating dozer blade and heavy‑duty dual tires.
