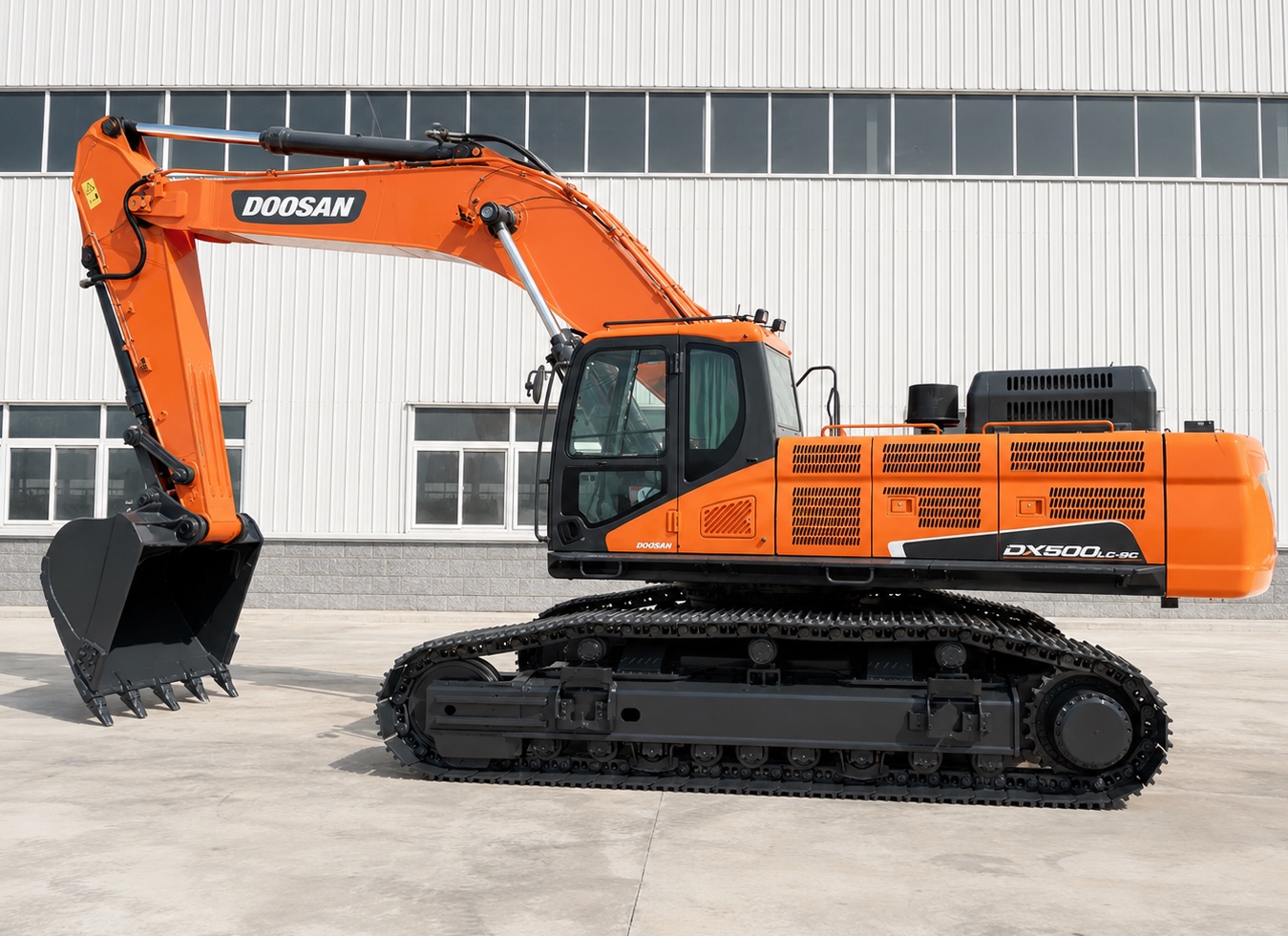

DOOSAN DX500LC
Specifications & Parameters
| Engine Model | DE12TIS |
| Rated Power(kW) | 238 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1363 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 23-31 |
| Engine Displacement(L) | 11.051 |
| Emisson | Tier 2 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 245 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 2.14 |
| Bucket Digging Force(kN) | 302 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3350 |
| Maximum Excavation Radius(mm) | 12120 |
| Maximum Digging Height(mm) | 11080 |
| Maximum Digging Depth(mm) | 7810 |
| Specifications(mm) | 12130×3340×3350 |
| Operating Weight(kg&ton) | 48400 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
- Doosan DX500LC 50‑ton large long‑track heavy‑duty excavator, classic mine‑proven platform, widely used for quarry excavation, heavy rock digging, mass earth‑moving and large‑scale open‑pit auxiliary loading projects.
- Original Doosan DE12TIS six‑cylinder turbo diesel engine delivers 238 kW rated power, generates abundant low‑speed torque, tolerates poor‑quality fuel and maintains stable output under high‑temperature and high‑altitude harsh site conditions.
- Mature dual variable‑displacement piston‑pump hydraulic system with precise main‑valve matching, delivers high system pressure, powerful breakout force and smooth simultaneous compound movements, performs stable in high‑intensity cyclic rock‑shifting and bulk‑material‑loading work.
- Heavily‑reinforced front working attachments adopt thick high‑strength steel plates, cast‑steel structure at boom root, stress‑relieved welding on arm sections. Standard 2.14 m³ rock‑duty bucket, optional factory‑fitted breaker piping supports heavy‑rock breaking assignments.
- Extended long‑track undercarriage enlarges ground‑contact area and lowers ground pressure. Strengthened track links and idler assemblies improve wear‑resistance, ensuring stable operation on rocky, gravel‑covered and heavy‑mud work sites.
- ROPS‑certified spacious operator cabin equipped with suspended shock‑absorbing seat, intuitive multi‑function monitor and ergonomic pilot levers. Grouped filter layout simplifies daily inspection and regular maintenance work.
- Robust Korean‑origin second‑hand heavy‑duty excavator, solid mechanical structure, complete global spare‑parts supply chain. Ideal for large quarries, mine‑auxiliary operations and huge land‑development infrastructure projects.
