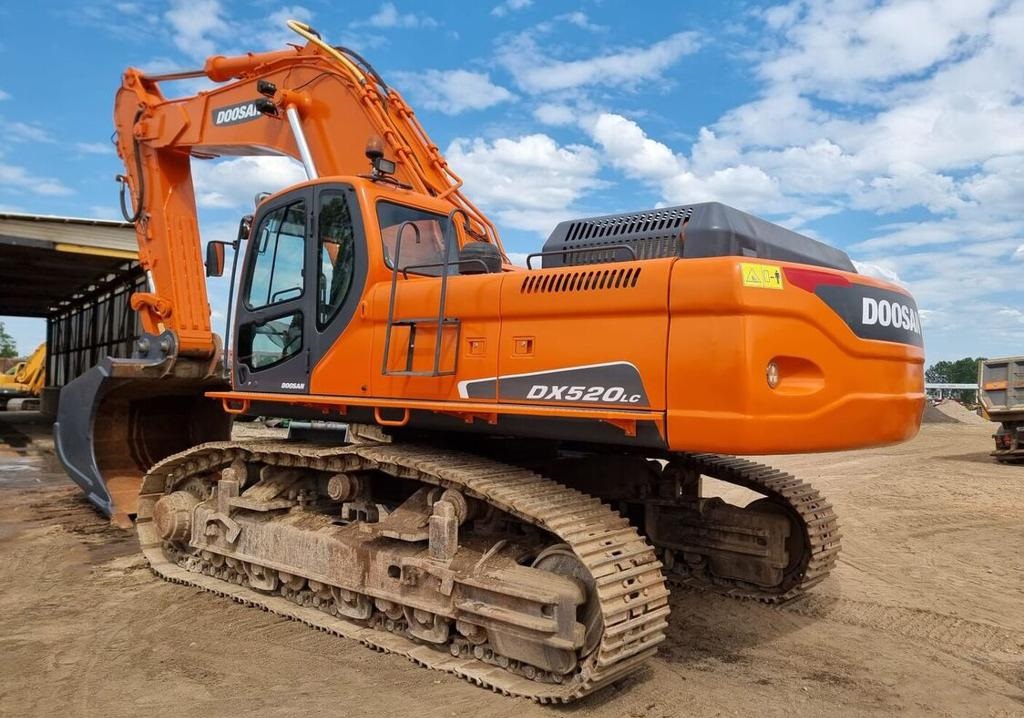

Used DOOSAN DX520LC
Parameters
| Engine Model | DOOSAN DV11 |
| Rated Power(kW) | 245 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1540 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 13.8-16.2 |
| Engine Displacement(L) | 10.964 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 165 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 3.2 |
| Bucket Digging Force(kN) | 296 |
| Boom Length(mm) | 6300 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 10750 |
| Maximum Digging Height(mm) | 6720 |
| Maximum Digging Depth(mm) | 6770 |
| Specifications(mm) | 11430×3340×4200 |
| Operating Weight(kg&ton) | 50700 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
DV11 10.964L six-cylinder common rail turbo engine, Tier3 emission standard with EGR+DOC+DPF, no AdBlue required. Massive low-speed torque, stable performance at 4500m altitude, low daily operation cost.
566 L/min high-flow e-EPOS cross-sensing hydraulic system with dual energy regeneration, faster cycle times and 12% fuel saving compared to previous generation. Matched with 3.2m³ large mining bucket for high-volume loading efficiency.
Reinforced LC long heavy-duty undercarriage with 9 lower rollers and wide 2740mm track gauge, low ground pressure for muddy open pit mines and steep slope heavy lifting.
Heavy-duty thickened 6300mm boom & 2900mm arm with internal stiffeners and cast wear-resistant pins, excellent impact resistance for rock stripping and harsh mining tasks.
Shock-isolated ROPS/FOPS safety cabin with full climate control, heated air suspension seat, 7-inch TFT diagnostic monitor and full LED working lamps for all-night mining operation.
Ground-level centralized filter layout for easy daily maintenance, low long-term service cost and high residual value in global mining equipment market.
Multiple attachments optional: heavy rock breaker arm, long-reach dredge arm and various high-capacity mine buckets for all heavy-duty mining & earthmoving applications.
