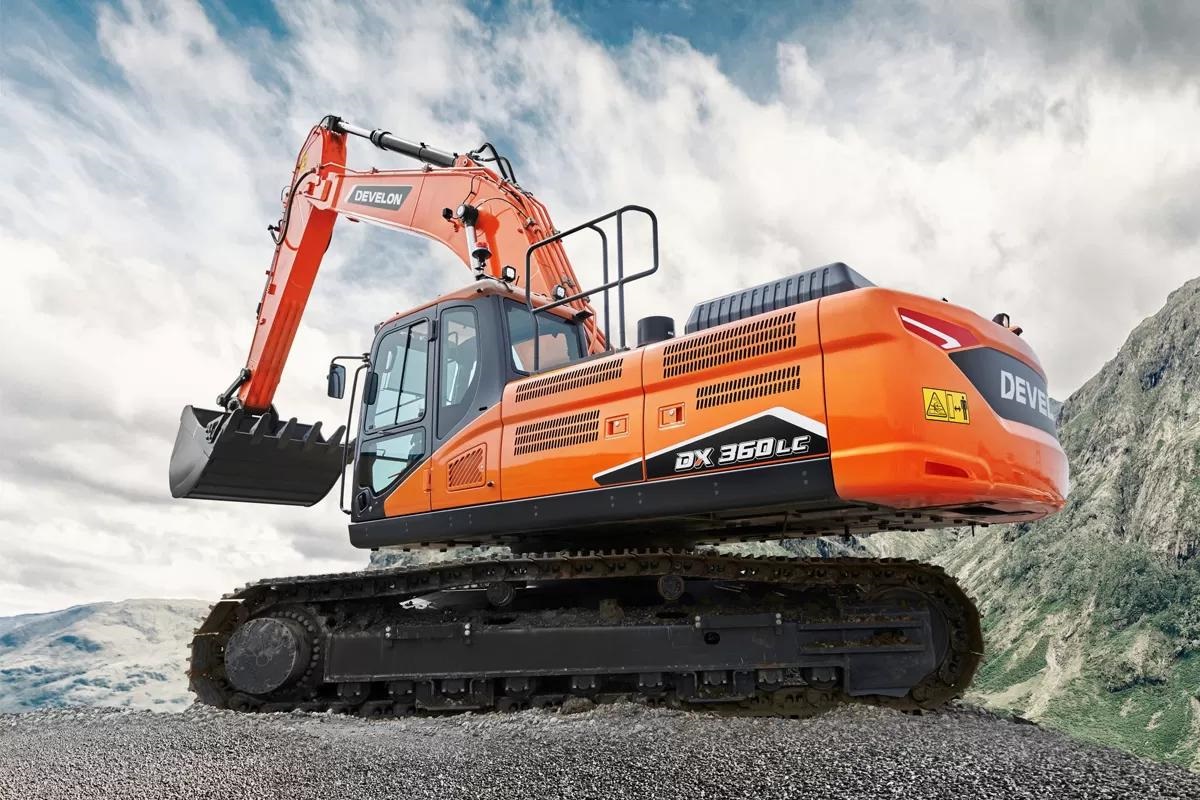

DEVELON DX360LC-7M
Specifications & Parameters
| Engine Model | DEVELON DL08 |
| Rated Power(kW) | 213 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1275 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 11.8-14 |
| Engine Displacement(L) | 7.64 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 380 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.83 |
| Bucket Digging Force(kN) | 258 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11115 |
| Maximum Digging Height(mm) | 7280 |
| Maximum Digging Depth(mm) | 7485 |
| Specifications(mm) | 11315×3280×3420 |
| Operating Weight(kg&ton) | 37700 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque DL08 Domestic Diesel Power Unit
7.64L six-cylinder electronically controlled engine with abundant low-speed torque, stable high-altitude performance, nationwide spare parts supply and low long-term maintenance cost, no urea system to cut daily operation cost.
SPC High-Flow Cross-Sensing Hydraulic System
Dual variable displacement main pumps total flow 700L/min, boom & arm flow regeneration reduces fuel consumption by 13%, factory pre-installed adjustable auxiliary hydraulic line for extra-heavy rock breakers & grapples. Hydraulic tank capacity 380L, full system oil volume 510L.
LC Extra Long Reinforced Mine Undercarriage
LC full name: Long Chassis. 2600mm wide track gauge with 9 lower rollers & 2 upper rollers, extended ground contact length cuts ground pressure to prevent sinking on muddy mine sites, superior stability for heavy side lifting and slope operation.
Reinforced HD Standard Working Attachment
6500mm heavy-duty reinforced boom + 3200mm standard arm with large 1.83m³ bucket delivers ultra-high loading efficiency, thickened plates & internal stiffeners extend service life under harsh mining impact. Overall dimension 11315×3280×3420mm, easy flatbed transport without oversize limit.
Low-Noise Safety ROPS/FOPS Operator Cabin
Full shock-isolated enclosed cabin with auto climate control air conditioning, heated air suspension seat, 8-inch TFT smart monitor, 9 LED working lamps for full night illumination, rear view camera and ground-level centralized filter layout for convenient daily maintenance, standard DEVELON CONNECT fleet remote monitoring system.
Interested in used DEVELON DX360LC-7M excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
