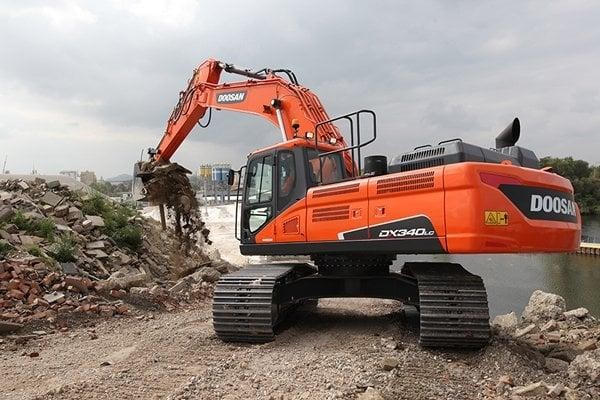

Used DOOSAN DX340LC-5
Parameters
| Engine Model | DOOSAN DL08 |
| Rated Power(kW) | 181 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1060 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-13.2 |
| Engine Displacement(L) | 7.64 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 380 |
| Travel Speed(km/h) | 3.1 |
| Bucket Capacity(m³) | 1.49 |
| Bucket Digging Force(kN) | 259 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11168 |
| Maximum Digging Height(mm) | 7196 |
| Maximum Digging Depth(mm) | 7533 |
| Specifications(mm) | 11280×3280×3360 |
| Operating Weight(kg&ton) | 34100 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
High-Torque Diesel Power Unit
Domestic 7.64L DL08 electronically controlled engine with low maintenance cost; Export 9.3L Scania DC09 VGT engine delivers massive low-speed torque, eliminates frequent DPF regeneration trouble, global spare parts support.
e-EPOS VBO High-Flow Cross-Sensing Hydraulic System
Dual variable displacement main pumps total flow 530L/min, boom & arm flow regeneration reduces fuel consumption by 14%, factory pre-installed adjustable auxiliary hydraulic line for heavy rock breakers & grapples. Hydraulic tank capacity 380L, full system oil volume 450L.
LC Extra Long Reinforced Mine Undercarriage
LC full name: Long Chassis. 2600mm wide track gauge with 10 lower rollers & 2 upper rollers, extended ground contact length cuts ground pressure to prevent sinking on muddy mine sites, superior stability for heavy side lifting and slope operation.
Reinforced HD Standard Working Attachment
6500mm heavy-duty boom + 3200mm standard arm with large 1.49m³ standard bucket delivers ultra-deep digging depth and high loading efficiency, all cylinders equipped with cushioning valves to absorb heavy rock impact and extend service life. Overall dimension 11280×3280×3360mm, easy flatbed transport without oversize limit.
Low-Noise Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-isolated enclosed cabin with auto climate control air conditioning, heated air suspension seat, 7-inch TFT diagnostic monitor, rear view camera and ground-level centralized filter layout for convenient daily maintenance, standard DOOSAN CONNECT fleet remote monitoring system.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
