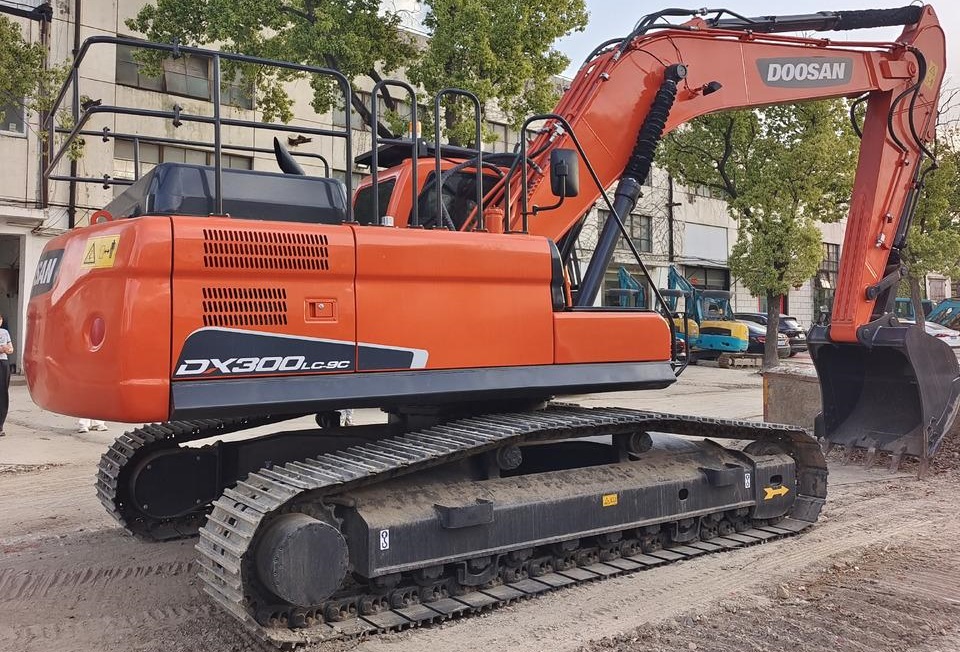

Used DEVELONDX300LC-9C
Parameters
| Engine Model | DEVELON DL08 |
| Rated Power(kW) | 192 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1060 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10.3-12.5 |
| Engine Displacement(L) | 7.64 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 280 |
| Travel Speed(km/h) | 5.7 |
| Bucket Capacity(m³) | 1.45 |
| Bucket Digging Force(kN) | 183.3 |
| Boom Length(mm) | 6245 |
| Stick Length(mm) | 3100 |
| Maximum Excavation Radius(mm) | 10702 |
| Maximum Digging Height(mm) | 7303 |
| Maximum Digging Depth(mm) | 7275 |
| Specifications(mm) | 10620×3200×3345 |
| Operating Weight(kg&ton) | 30215 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
High-Torque DL08 Common Rail Diesel Power Unit
7.64L six-cylinder electronically controlled engine with abundant low-speed torque, stable high-altitude performance, no urea system to cut daily operation cost, sufficient spare parts supply worldwide and low long-term maintenance cost.
SPC Smart Cross-Sensing Hydraulic System
Dual variable displacement main pumps total flow 496L/min, boom & arm flow regeneration reduces fuel consumption by 10%, factory pre-installed adjustable auxiliary hydraulic line for heavy rock breakers & grapples. Hydraulic tank capacity 280L, full system oil volume 360L.
LC Extra Long Reinforced Mine Undercarriage
LC full name: Long Chassis. 2540mm wide track gauge with 9 lower rollers & 2 upper rollers, extended ground contact length cuts ground pressure to prevent sinking on muddy mine sites, superior stability for heavy side lifting and slope operation.
Reinforced HD Standard Working Attachment
6245mm heavy-duty boom + 3100mm standard arm with large 1.45m³ standard bucket delivers ultra-deep digging depth and high loading efficiency, all cylinders equipped with cushioning valves to absorb heavy rock impact and extend service life. Overall dimension 10620×3200×3345mm, easy flatbed transport without oversize limit.
Low-Noise Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-isolated enclosed cabin with auto climate control air conditioning, heated air suspension seat, 8-inch TFT smart monitor, rear view camera and ground-level centralized filter layout for convenient daily maintenance, standard DEVELON CONNECT fleet remote monitoring system.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
