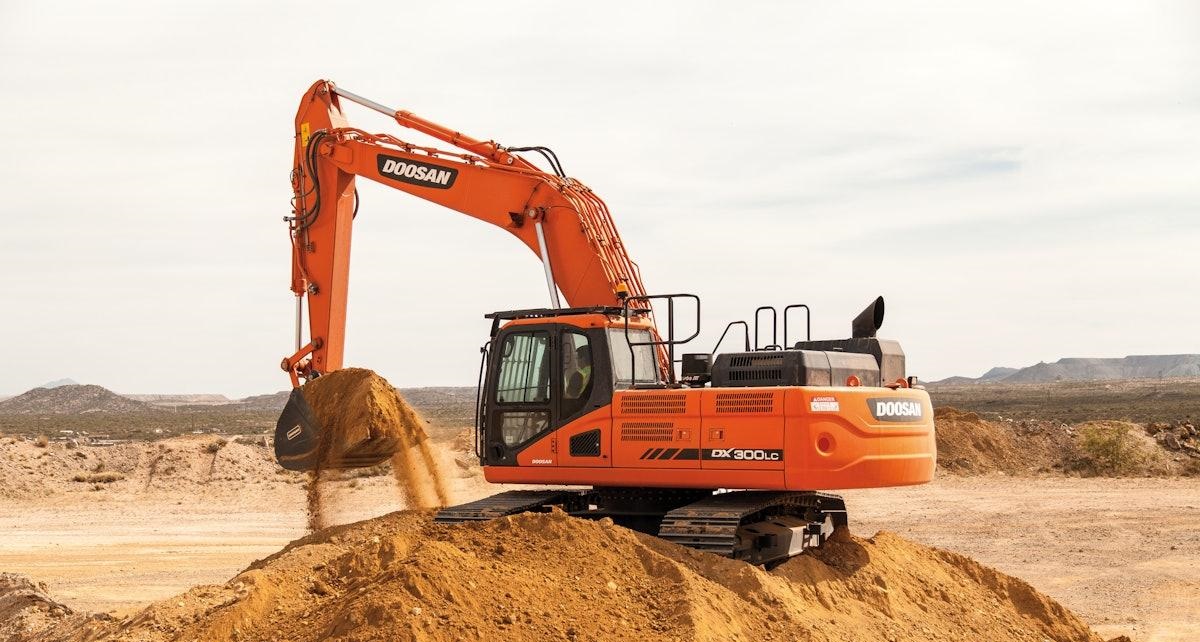

DOOSAN DX300LC-5
Specifications & Parameters
| Engine Model | DOOSAN DL08 |
| Rated Power(kW) | 147 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 911 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-12 |
| Engine Displacement(L) | 7.64 |
| Emisson | Tier3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 280 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.27 |
| Bucket Digging Force(kN) | 188 |
| Boom Length(mm) | 6245 |
| Stick Length(mm) | 3100 |
| Maximum Excavation Radius(mm) | 10745 |
| Maximum Digging Height(mm) | 7620 |
| Maximum Digging Depth(mm) | 7305 |
| Specifications(mm) | 10570×3200×3370 |
| Operating Weight(kg&ton) | 29300 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DL08 six‑cylinder common‑rail turbo diesel engine delivers strong low‑rpm torque without urea‑based exhaust treatment, perfectly suited for regions with low‑quality fuel supply
Proven e‑EPOS electronic power optimizing system harmonizes engine output and hydraulic demand in real‑time to cut redundant fuel consumption under variable working loads
Dual variable‑displacement main pumps with cross‑sensing control deliver high combined flow for fast truck‑loading cycles and responsive compound movements
Impressive swing‑torque performance accelerates slewing action, improving productivity in stockpile handling and high‑volume earth‑moving assignments
Multiple selectable working modes allow operators to toggle between heavy‑digging power mode and fuel‑saving standard mode according to site‑task intensity
Heavy‑duty LC long‑track undercarriage evenly distributes machine weight, delivering stable operation on soft muddy ground and sloped construction zones
Thick‑plate reinforced boom‑arm assembly with high‑strength cast hinge pins tolerates frequent impact from rock breaking and demolition‑related shock loads
Pre‑routed auxiliary hydraulic piping supports direct installation of rock breakers, grapples and shears without extensive on‑site pipe reworking
Well‑insulated operator cabin with effective noise suppression reduces operator exhaustion through long‑duration heavy‑duty work shifts
Ground‑level grouped service points simplify filter replacements and routine inspections, global abundant spare‑parts supply keeps long‑term operating expenses low
Interested in used DOOSAN DX300LC-5 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
