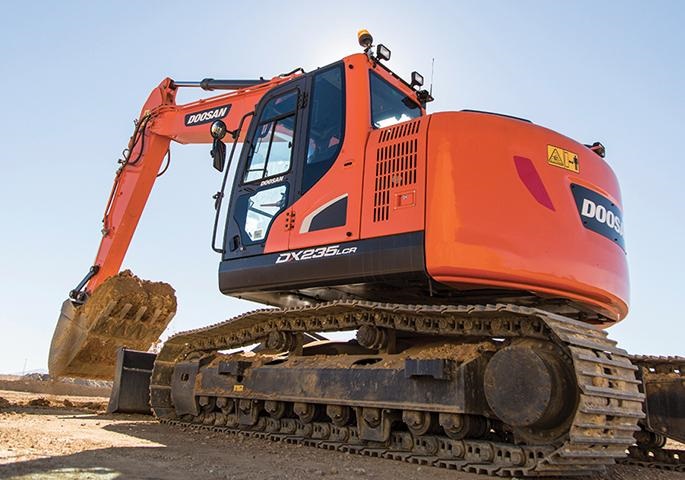

Used DOOSAN DX235LCR-5
Parameters
| Engine Model | DOOSAN DL06P |
| Rated Power(kW) | 115 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 804 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9-11 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.8 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 157 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9820 |
| Maximum Digging Height(mm) | 7950 |
| Maximum Digging Depth(mm) | 6670 |
| Specifications(mm) | 9000×2990×2985 |
| Operating Weight(kg&ton) | 24300 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Compact Radius Short Tail Design
Tail swing radius only 1680mm, can work closely beside walls without extra road closure, ideal for tight urban job sites.
High-Torque DL06P Tier4 Diesel Engine
5.89L six-cylinder electronically controlled engine, no DPF regeneration trouble, stable power for long-hour demolition and breaking work.
e-EPOS VBO High-Flow Cross-Sensing Hydraulic System
Dual variable displacement main pumps total flow 444L/min, dual energy regeneration reduces fuel consumption by 11%, factory pre-installed adjustable auxiliary breaker line. Hydraulic tank capacity 180L, full system oil volume 300L.
LC Reinforced Long Undercarriage
2390mm wide track gauge with 9 lower rollers, low ground pressure prevents sinking on muddy urban pavement, superior stability for side lifting.
Low-Noise Shock-Absorbing ROPS/FOPS Operator Cabin
Full enclosed climate control cabin, heated air suspension seat, 7-inch TFT diagnostic monitor and centralized ground-level filter layout for easy daily maintenance.
