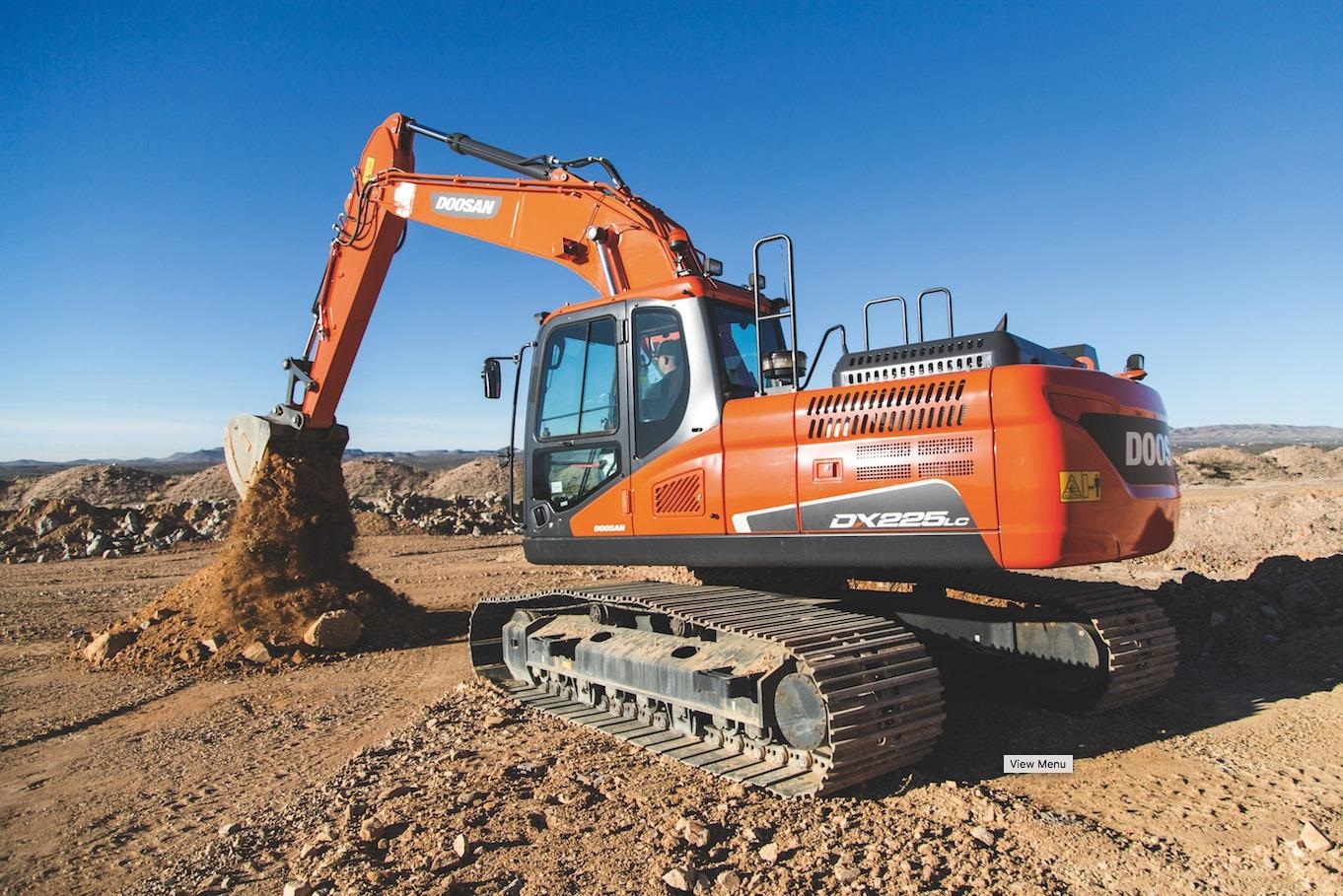

DEVELON DX225LC-9
Specifications & Parameters
| Engine Model | DEVELON DL06 |
| Rated Power(kW) | 129.4 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 765 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 8.2-10.3 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 196 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 188 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9873 |
| Maximum Digging Height(mm) | 6830 |
| Maximum Digging Depth(mm) | 6592 |
| Specifications(mm) | 9571×2990×2985 |
| Operating Weight(kg&ton) | 22500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Develon DL06P six‑cylinder electronically controlled Tier3 diesel engine generates steady low‑speed torque, urea‑free design adapts well to markets with low‑grade fuel availability
SPC intelligent load sensing hydraulic system automatically adjusts pump displacement to match digging load, delivering precise joystick control and improved fuel economy
Dual variable displacement main pumps provide smooth combined flow for fast cycle times, factory pre‑installed auxiliary hydraulic lines ready for rock breakers and grapple attachments
Three working modes Power, Standard and ECO can be selected to balance digging power and fuel consumption for different site conditions
Heavy‑duty LC reinforced long undercarriage with nine lower track rollers distributes machine weight evenly to reduce ground pressure on soft wet ground
Optimized boom and arm structure with reinforced welding and thickened steel plates stands up to repeated shock loads from rock breaking and demolition work
High rigidity main frame enhances overall machine durability under continuous heavy‑duty construction site operations
Sealed and shock‑isolated ROPS/FOPS safety cabin with climate control system cuts noise transmission and keeps operator comfortable during long shifts
7-inch TFT color monitor displays real‑time machine parameters and supports quick diagnosis of hydraulic and engine faults
Centralized ground‑level service layout shortens routine maintenance time, easily accessible spare parts keep long‑term operating cost low worldwide
Interested in used DEVELON DX225LC-9 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
