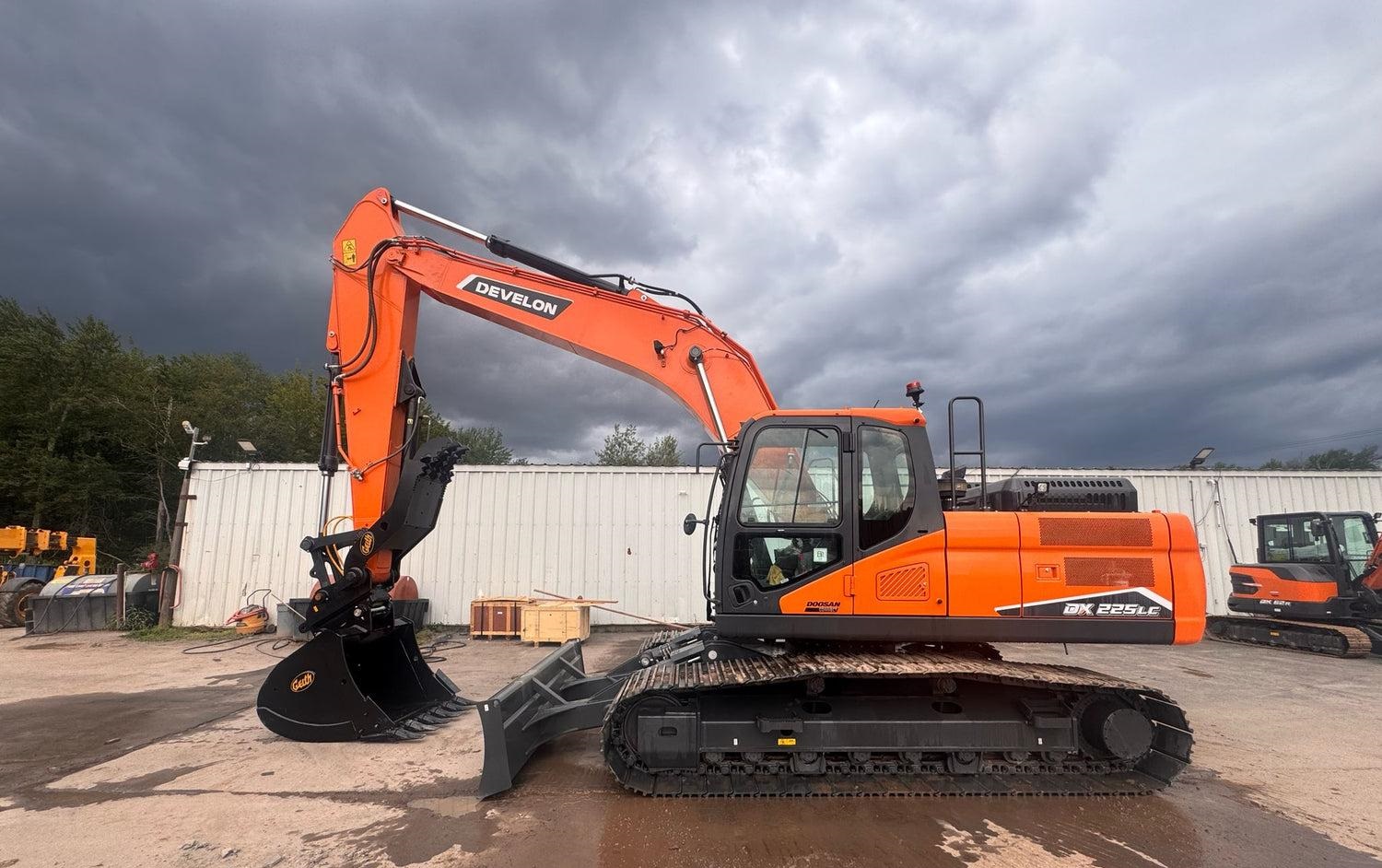

Used DEVELON DX225LC-7
Parameters
| Engine Model | DEVELON DL06 |
| Rated Power(kW) | 125 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 760 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 8.4-10.6 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 392 |
| Hydraulic Tank(L) | 131 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 178 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 9865 |
| Maximum Digging Height(mm) | 6750 |
| Maximum Digging Depth(mm) | 6590 |
| Specifications(mm) | 9570×2990×2890 |
| Operating Weight(kg&ton) | 21700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
High-Torque Common Rail Diesel Power Unit
5.89L six-cylinder electronically controlled engine, abundant low-speed torque, stable high-altitude performance, nationwide spare parts supply and low long-term maintenance cost.
SPC Smart Cross-Sensing Hydraulic System
Dual variable displacement main pumps total flow 421.2L/min, boom & arm flow regeneration reduces fuel consumption by 12%, factory pre-installed adjustable auxiliary hydraulic line with 10 attachment flow presets for heavy breakers & grapples. Hydraulic tank capacity 131L, full system oil volume 230L.
LC Extra Long Reinforced Medium Undercarriage
LC full name: Long Chassis. 2390mm wide track gauge with 600mm steel/rubber track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy construction sites, superior stability for heavy side lifting and slope excavation.
Reinforced Standard Working Attachment
5700mm boom + 2800mm standard arm delivers balanced digging depth, dumping height and horizontal reach, all cylinders equipped with cushioning for less shock and longer service life. Overall dimension 9570×2990×2890mm, easy transportation on standard flat trucks without oversize limit.
Low-Noise Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-absorbing enclosed cabin with full auto climate control air conditioning, heated pneumatic suspension seat, 10-inch TFT smart monitor, rear view camera and centralized filter layout for fast daily maintenance, standard DEVELON CONNECT fleet remote monitoring system.
