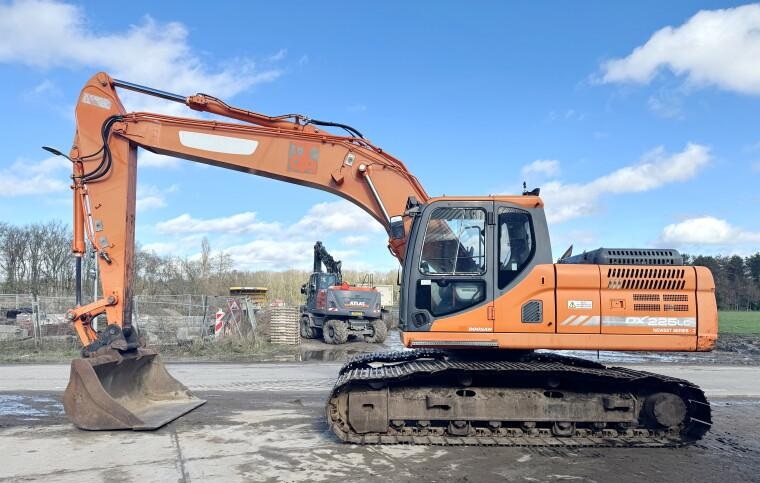

DOOSAN DX225LC-3
Specifications & Parameters
| Engine Model | DOOSAN DL06K |
| Rated Power(kW) | 121 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 755 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.2-10.2 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage IIIB |
| Track width(mm) | 600 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 178 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9880 |
| Maximum Digging Height(mm) | 6840 |
| Maximum Digging Depth(mm) | 6585 |
| Specifications(mm) | 9490×2990×2980 |
| Operating Weight(kg&ton) | 21900 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque DL06K Common Rail Diesel Power Unit
5.89L six-cylinder electronically controlled engine, abundant low-speed torque, stable performance at high altitude, nationwide spare parts supply and low long-term maintenance cost.
e-EPOS Intelligent Load Sensing Hydraulic System
Dual variable displacement main pumps total flow 413L/min, dual energy regeneration reduces fuel consumption by 13%, factory pre-installed adjustable auxiliary hydraulic line with 10 attachment flow presets for heavy breakers & grapples. Hydraulic tank capacity 180L, full system oil volume 300L.
LC Extra Long Reinforced Medium Undercarriage
LC full name: Long Chassis. 2390mm wide track gauge with 600mm steel/rubber track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy construction sites, superior stability for heavy side lifting and slope excavation.
Reinforced Standard Working Attachment
5700mm boom + 2900mm standard arm delivers balanced digging depth, dumping height and horizontal reach, reinforced bushings and wear plates for long-hour heavy digging and rock breaking cycles. Overall dimension 9490×2990×2980mm, easy transportation on standard flat trucks without oversize limit.
Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-absorbing enclosed cabin with full auto climate control air conditioning, heated pneumatic suspension seat, color LCD diagnostic monitor and centralized filter layout for fast daily maintenance.
Interested in used DOOSAN DX225LC-3 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
