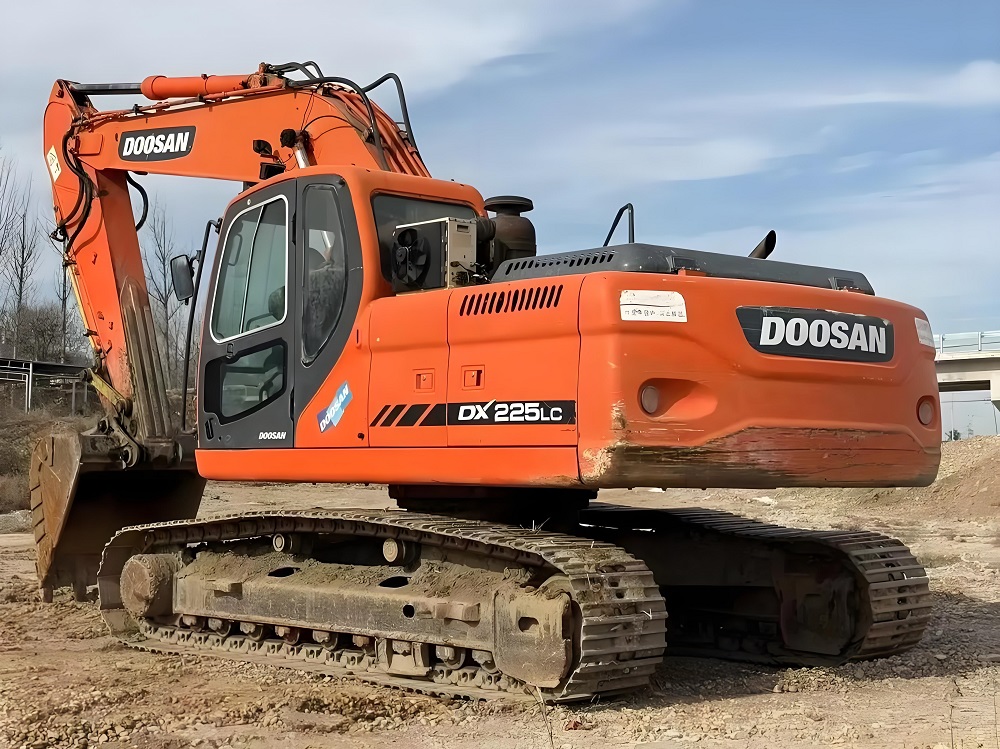

DOOSAN DX225LC-5
Specifications & Parameters
| Engine Model | DOOSAN DL06P |
| Rated Power(kW) | 124 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 755 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 8-10 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 171 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9880 |
| Maximum Digging Height(mm) | 6780 |
| Maximum Digging Depth(mm) | 6080 |
| Specifications(mm) | 9495×2990×2980 |
| Operating Weight(kg&ton) | 21500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DL06K six‑cylinder common rail diesel engine delivers rich low‑speed torque, stable operation at high altitude with no urea exhaust aftertreatment system
e‑EPOS intelligent load sensing hydraulic system matches pump output to digging load in real time for smooth combined movements and better fuel efficiency
Dual variable displacement main pumps achieve total flow of 413L/min, dual energy regeneration cuts fuel consumption by 13%, factory pre‑fitted adjustable auxiliary hydraulic line with 10 flow presets for breakers and grapples
LC extra long reinforced medium undercarriage, 2390mm track gauge with optional 600mm steel or rubber track shoes, longer ground contact area reduces ground pressure on muddy job sites
Heavy‑duty reinforced boom and arm assembly with hardened bushings and wear plates sustains continuous heavy digging and rock breaking cycles
Balanced working range with 5700mm boom plus 2900mm standard arm offers good digging depth, dumping height and horizontal reach
Compact overall dimension 9490×2990×2980mm allows simple transport on standard flatbed trucks without oversize restrictions
Shock‑absorbing fully enclosed ROPS/FOPS operator cabin with full auto climate control and heated pneumatic suspension seat reduces operator fatigue during long shifts
Color LCD diagnostic monitor displays machine operating data, centralized filter layout speeds up daily inspection and maintenance work
Worldwide spare parts availability, simple mechanical structure and low maintenance cost make it a preferred used excavator for overseas construction projects
Interested in used DOOSAN DX225LC-5 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
