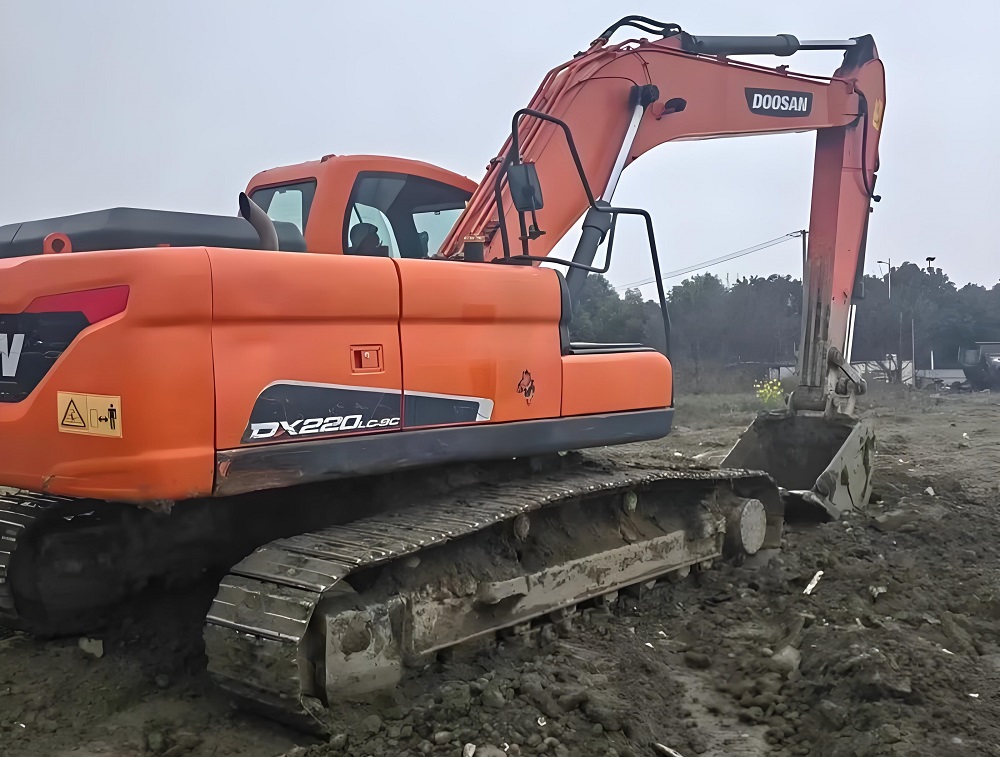

DOOSAN DX220LC-5
Specifications & Parameters
| Engine Model | DOOSAN DB58TIS |
| Rated Power(kW) | 121 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 755 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8-10 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 171 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9880 |
| Maximum Digging Height(mm) | 6780 |
| Maximum Digging Depth(mm) | 6080 |
| Specifications(mm) | 9300×2990×2980 |
| Operating Weight(kg&ton) | 20700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DL06K six‑cylinder common‑rail diesel engine delivers ample low‑speed torque, stable high‑altitude performance without urea‑based exhaust after‑treatment for low‑cost operation
Proven e‑EPOS electronic power‑optimizing hydraulic system synchronizes engine output and pump displacement in real‑time, ensuring smooth compound movements and good fuel‑saving performance
Dual variable‑displacement main pumps reach total flow of 413 L/min, dual energy regeneration cuts fuel consumption by 13 %, factory‑preinstalled adjustable auxiliary hydraulic line with 10 flow presets for heavy breakers and grapples
LC extra‑long reinforced medium undercarriage, 2390 mm track gauge with optional 600 mm steel or rubber track shoes, extended ground‑contact length reduces ground pressure on muddy construction sites
Heavy‑duty standard working attachment with 5700 mm boom plus 2900 mm arm provides balanced digging depth, dumping height and horizontal reach, hardened bushings and wear‑resistant plates for long‑time heavy‑impact cycles
Compact overall dimension 9490×2990×2980 mm enables easy transportation by standard flat‑bed trucks without over‑size transportation restrictions
Shock‑absorbing fully enclosed ROPS/FOPS operator cabin equipped with full auto climate‑control and heated pneumatic‑suspension seat relieves operator fatigue during long‑hour shifts
Color LCD diagnostic monitor displays real‑time machine working parameters for quick fault checking and status review
Centralized ground‑level filter layout simplifies daily inspection, filter replacement and routine component maintenance work
Simple mechanical layout with worldwide spare‑parts availability, low long‑term operating cost, highly popular used excavator for overseas construction fleets
Interested in used DOOSAN DX220LC-5 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
