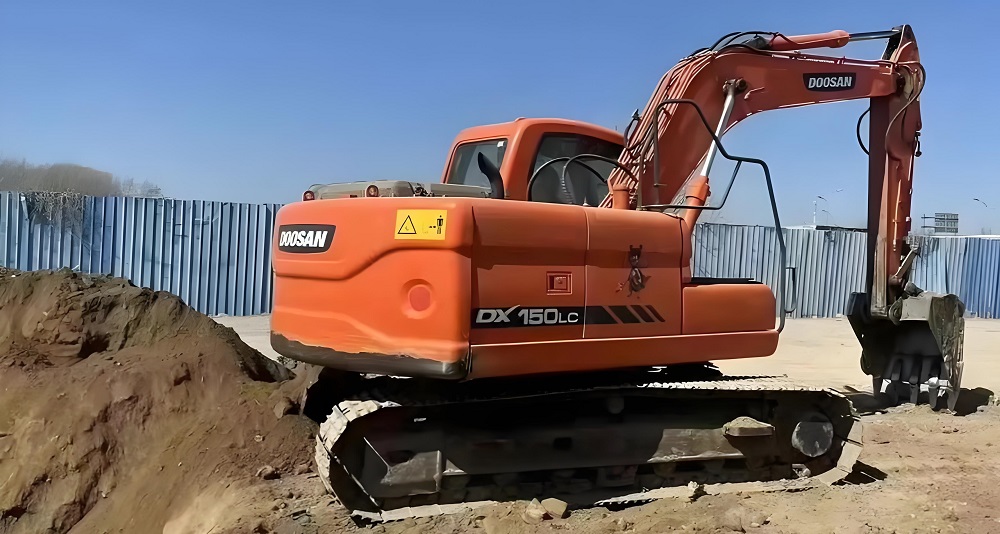

DOOSAN DX150LC-5
Specifications & Parameters
| Engine Model | Perkins 1204F |
| Rated Power(kW) | 81.6 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 500 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6.2-7.6 |
| Engine Displacement(L) | 5.785 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 267 |
| Hydraulic Tank(L) | 147 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 0.58 |
| Bucket Digging Force(kN) | 100.9 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8305 |
| Maximum Digging Height(mm) | 6300 |
| Maximum Digging Depth(mm) | 5655 |
| Specifications(mm) | 7680×2590×2755 |
| Operating Weight(kg&ton) | 14000 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque Diesel Engine
Domestic DB58TIS 5.785L six-cylinder mechanical injection engine, low maintenance cost, no complicated exhaust regeneration system; Export Perkins 4.4L four-cylinder meets global emission standards with stable high-altitude performance.
EPOS Electronic Load Sensing Hydraulic System
Dual variable displacement main pumps total flow 228L/min, dual energy regeneration reduces fuel consumption by 14%, factory pre-installed adjustable auxiliary hydraulic line for breakers & grapples. Hydraulic tank capacity 147L, full system oil volume 410L.
LC Extra Long Reinforced Medium Undercarriage
LC full name: Long Chassis. 2240mm wide track gauge with 600mm steel/rubber track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy construction sites, superior stability for heavy side lifting and slope excavation.
Reinforced Standard Working Attachment
4600mm boom + 2500mm standard arm delivers balanced digging depth and dumping height, reinforced bushings and wear plates for long-hour heavy digging and rock breaking cycles. Overall dimension 7680×2590×2755mm, easy transportation on standard flat trucks without oversize limit.
Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-absorbing enclosed cabin with full auto air conditioning, centralized filter layout for fast daily maintenance, built-in machine fault self-diagnosis system.
